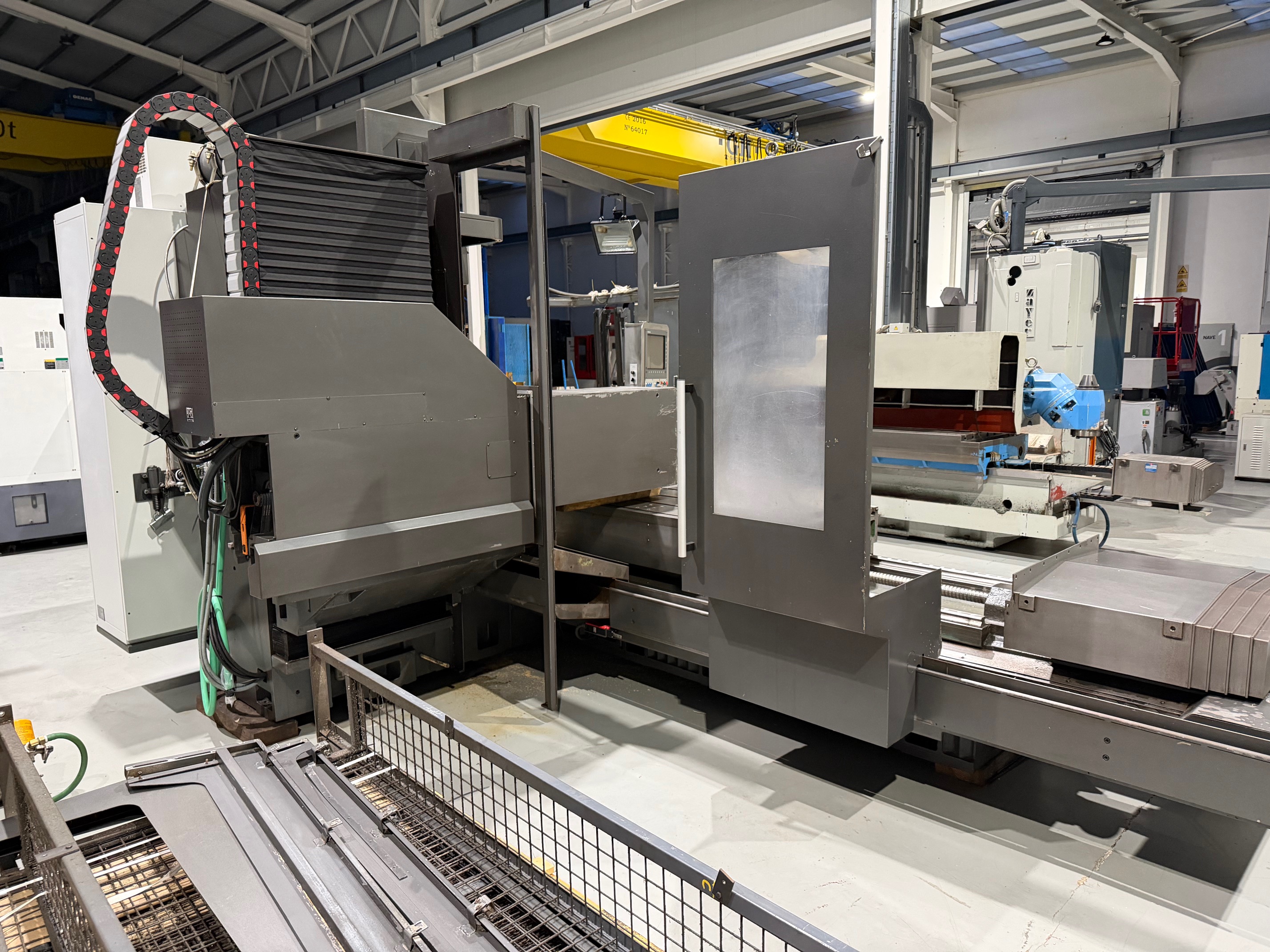

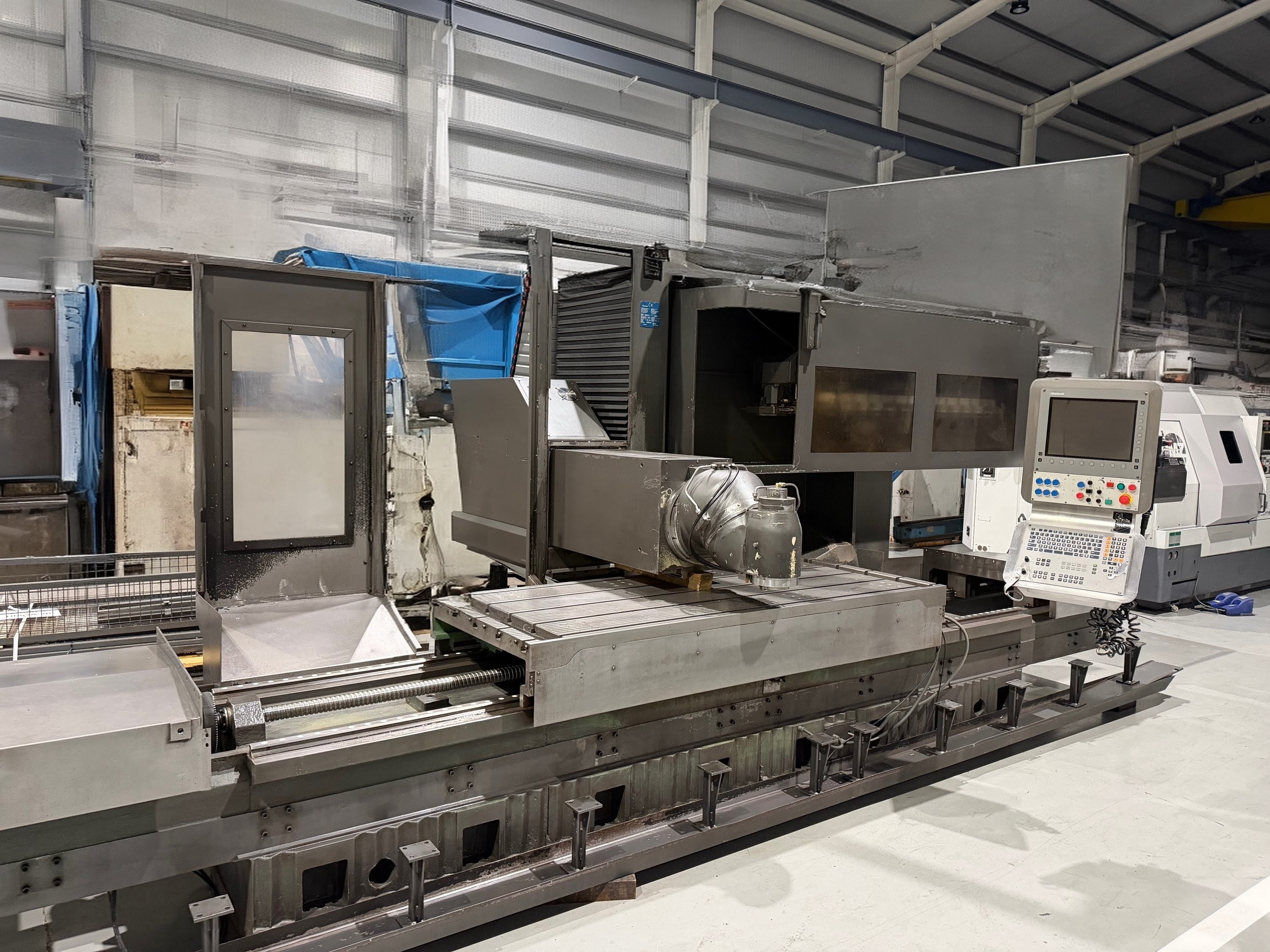

Correa Diana 20

  • Milling machines - Bed type milling machines
Correa Diana 20
Correa Diana 20
Correa Diana 20
Correa Diana 20

Milling machines - Bed type milling machines

Ref 1001119

  • Year: 2007
  • CNC: Heidenhain TNC 530
  • Table Size: 2300mm x 900mm
  • Max weight on table: 3500 kilos
  • X axis travel: 2000mm
  • Y axis travel: 1000mm
  • Z axis travel: 1000mm
  • ATC: 30
  • Head swivels: UDG 2.5º x 2.5º auto. CNC
  • Tool Taper: ISO 50
  • Speeds: 20 - 3000 rpm
  • Fast Traverse: 20000mm/min
  • Electronic Handwheel: HR-410
  • Swarf conveyor: SI / YES / OUI / JA
  • Number of T slots: 5 x 22mm
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Equipped with: Rigid tapping
  • Equipment: Roscado Rigido
  • Motor: 22KW
  • Weight: 14000 kilos
