Juaristi Ts3 MG12

  • Borers - Table Type CNC Borers
Juaristi Ts3 MG12
Juaristi Ts3 MG12
Juaristi Ts3 MG12
Juaristi Ts3 MG12
Juaristi Ts3 MG12
Juaristi Ts3 MG12

Borers - Table Type CNC Borers

Ref 1001117

  • Year: 2009
  • X axis travel: 3000mm
  • Y axis travel: 2500mm
  • Z axis travel: 2475mm
  • Spindle Traverse (W axis): 800mm

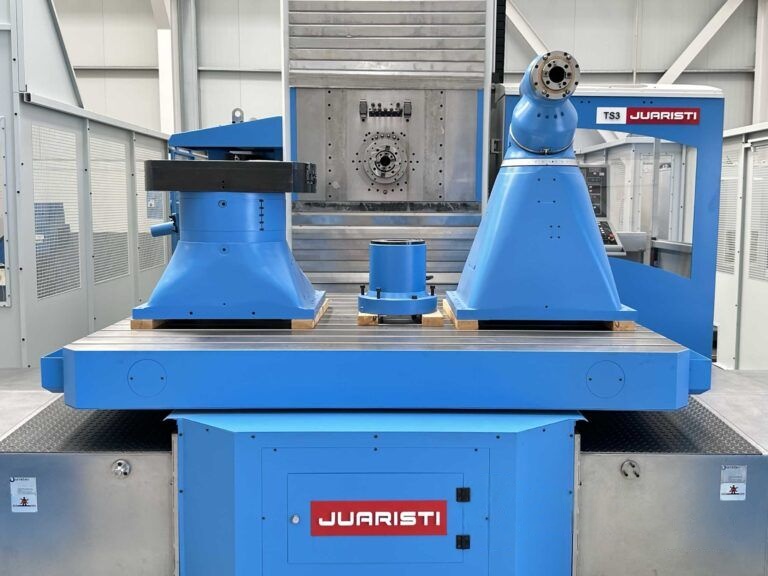

  • Rotary table: Juaristi MG-12
  • Table Size: 2.000mm x 2500mm
  • ATC: ATC 30
  • Spindle Speeds: 3000rpm
  • Tool Taper: ISO 50
  • Max weight on table: 8000kg
  • Facing Head Diameter: 800mm
  • Swarf conveyor: SI/YES/OUI/JA
  • Workpiece Probe: RENISHAW RMP-60
  • Through tool coolant: 20 bar
  • Electronic Handwheel: HEIDENHAIN HR-420
  • Motor: 30kw
  • Length: 9800mm
  • Width: 7320mm
  • Height: 5500mm
  • Weight: 45000 kg
