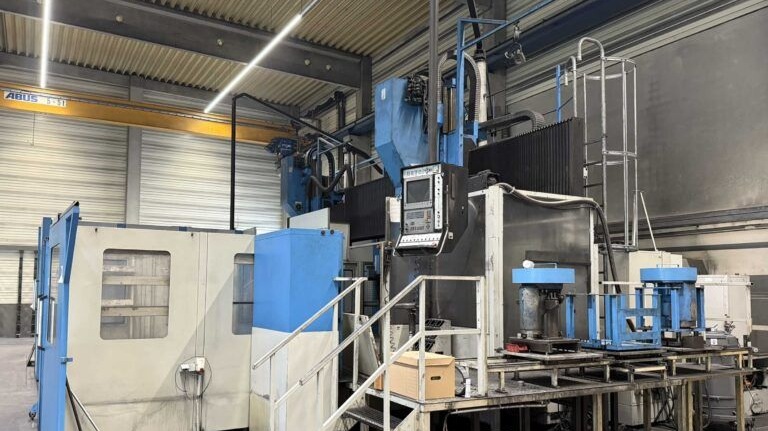

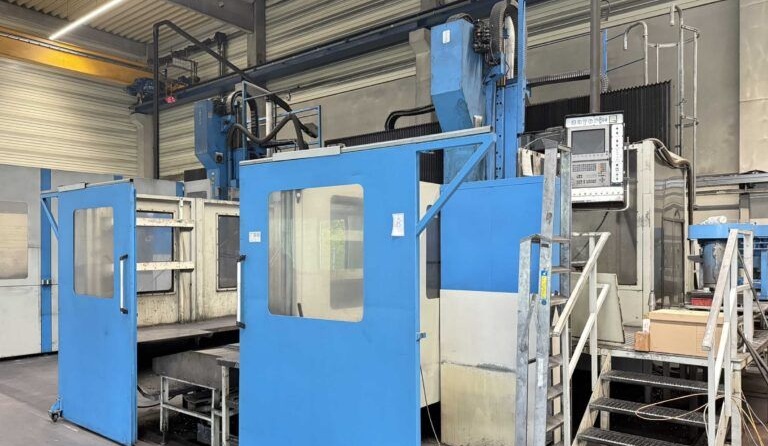

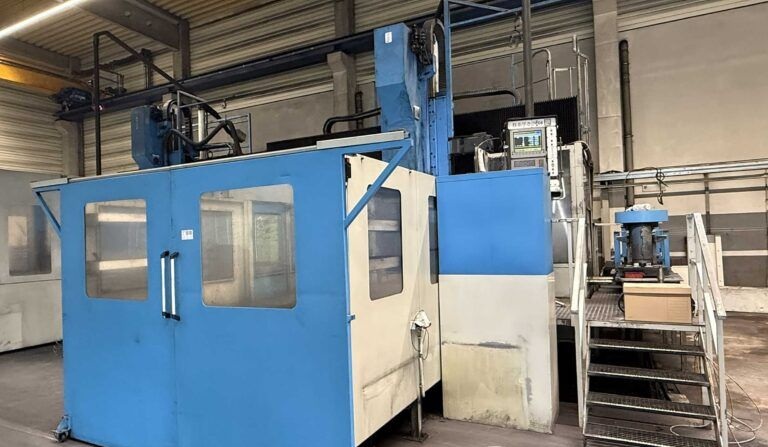

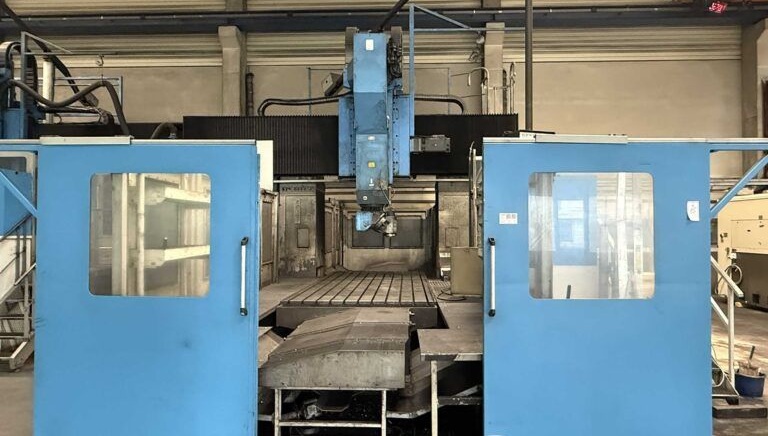

ZAYER KPU-4000 AR

  • Milling machines - Bridge type/Gantry Milling machines
ZAYER KPU-4000 AR
ZAYER KPU-4000 AR
ZAYER KPU-4000 AR
ZAYER KPU-4000 AR
ZAYER KPU-4000 AR

Milling machines - Bridge type/Gantry Milling machines

Ref 1001115

  • Year: 2000
  • CNC: HEIDENHAIN TNC-430 PA
  • Table Size: 4.000 x 1800 mm
  • X axis travel: 3.700 mm
  • Y axis travel: 3.050 + 873 mm
  • Z axis travel: 1.100 mm
  • Between columns: 2.300 mm
  • Height Under cross slide: 1.175 mm
  • Max weight on table: 20.000 kg
  • ATC: 30
  • Tool Taper: ISO 50
  • Speeds: 6000 rpm
  • Hydraulic tool locking: Si / Yes / Oui / Ja
  • Feeds: 25.000 mm/min
  • CNC Head : Automatico 0,001° + 0,001°
  • Through tool coolant: Sí/Yes
  • Electronic Handwheel: HEIDENHAIN HR-410
  • Swarf conveyor: Si / Yes / Oui / Ja
  • Motor: 37KW
  • Weight: 42000 kilos
