This machine is available for immediate delivery at our main exhibition in Zaragoza. Contact us for price or more details.

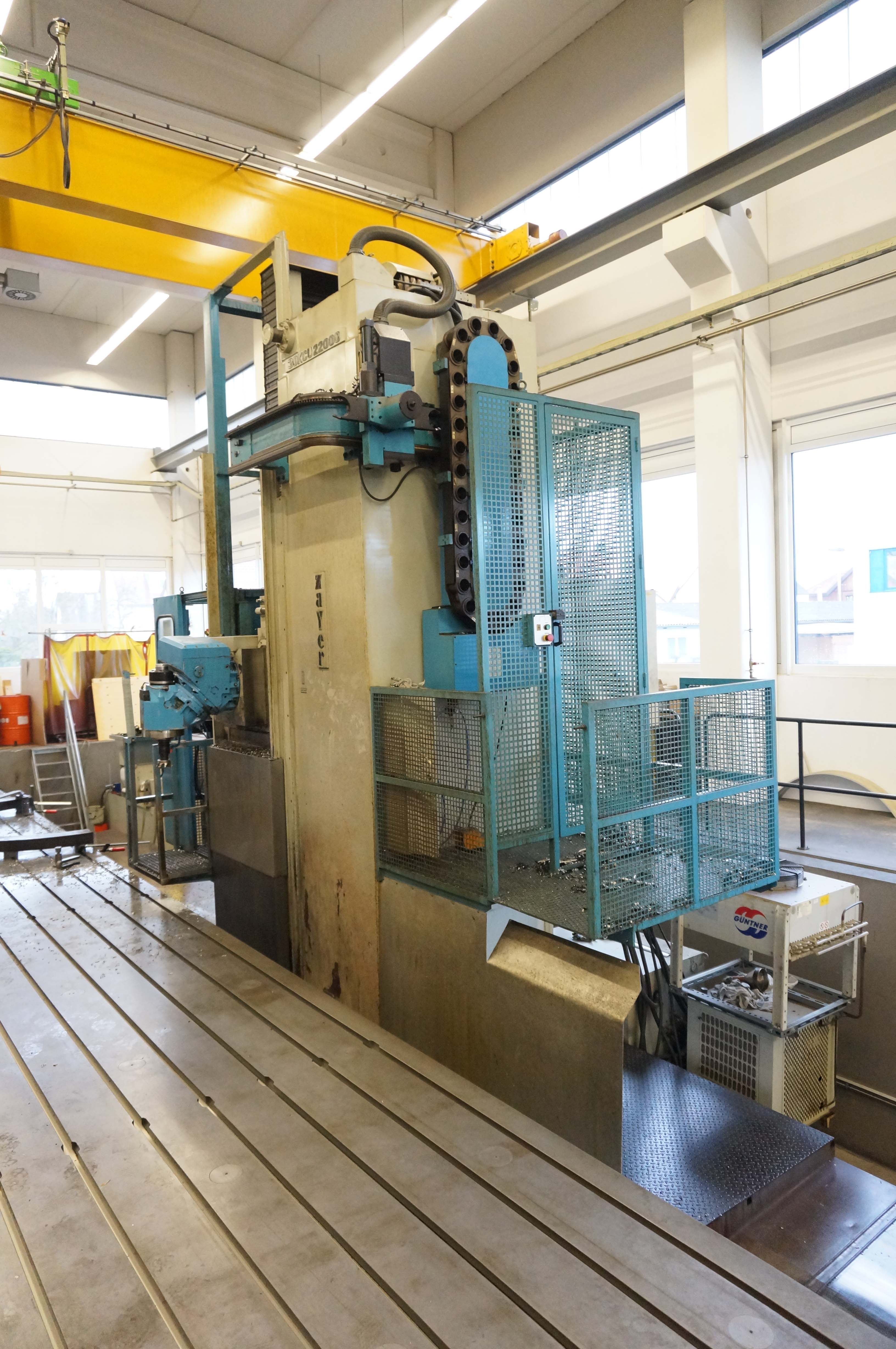

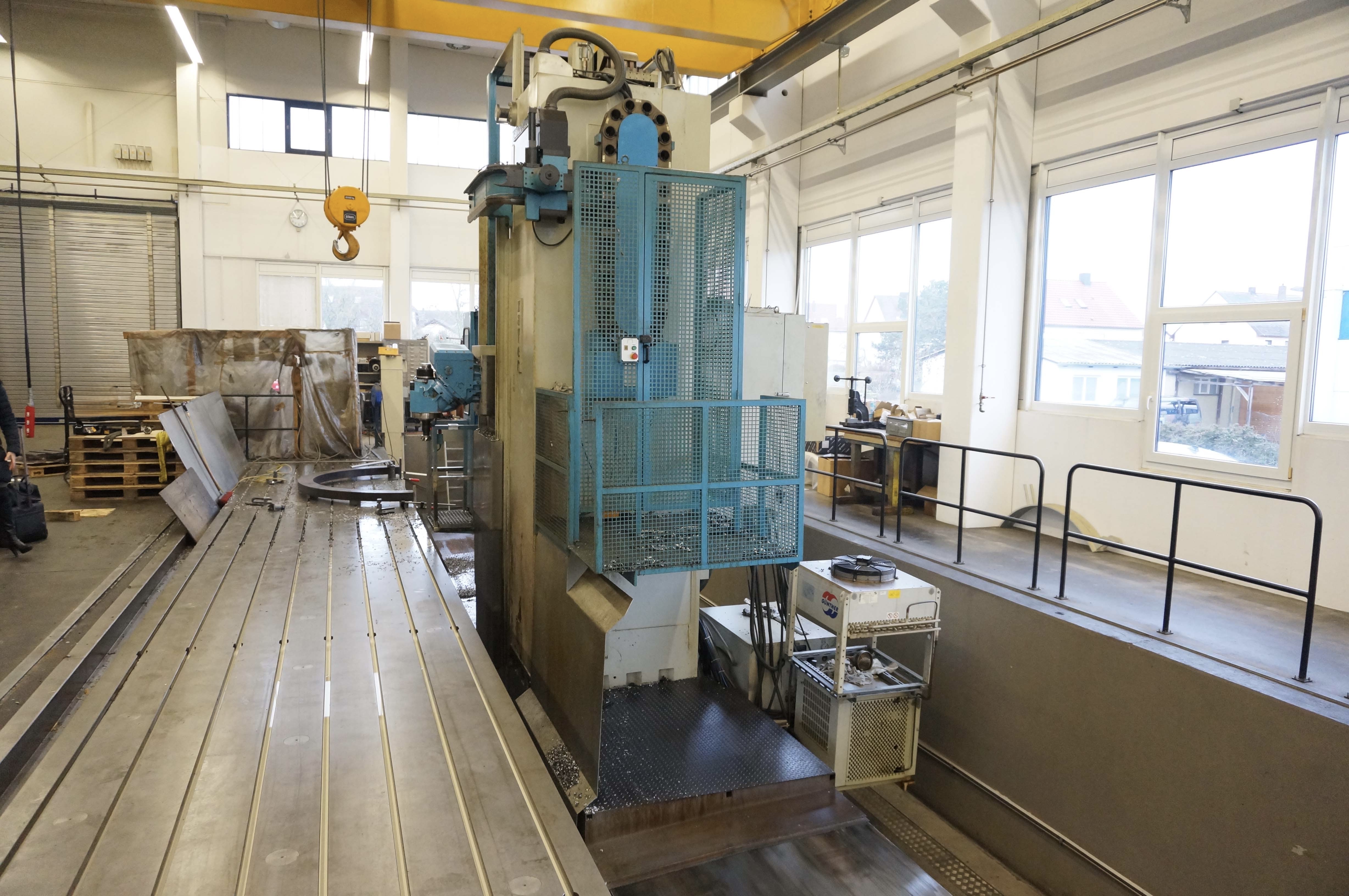

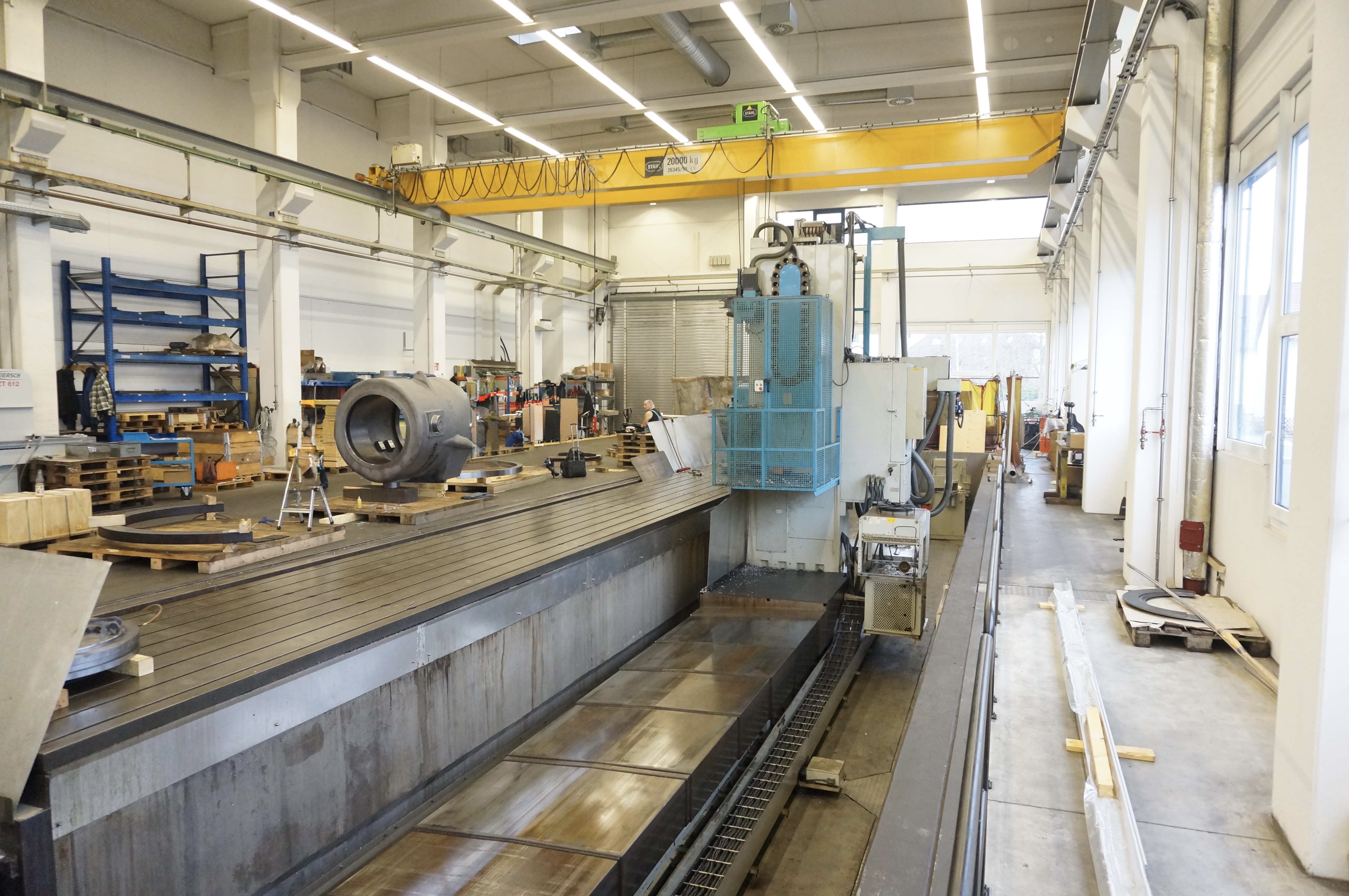

Second-handZayer 30KCU 22000 milling machine for sale. Belonging to the Zayer 30KCU series (mobile column milling machines), it has been inspected by our team and is in excellent condition in our warehouse in Zaragoza.

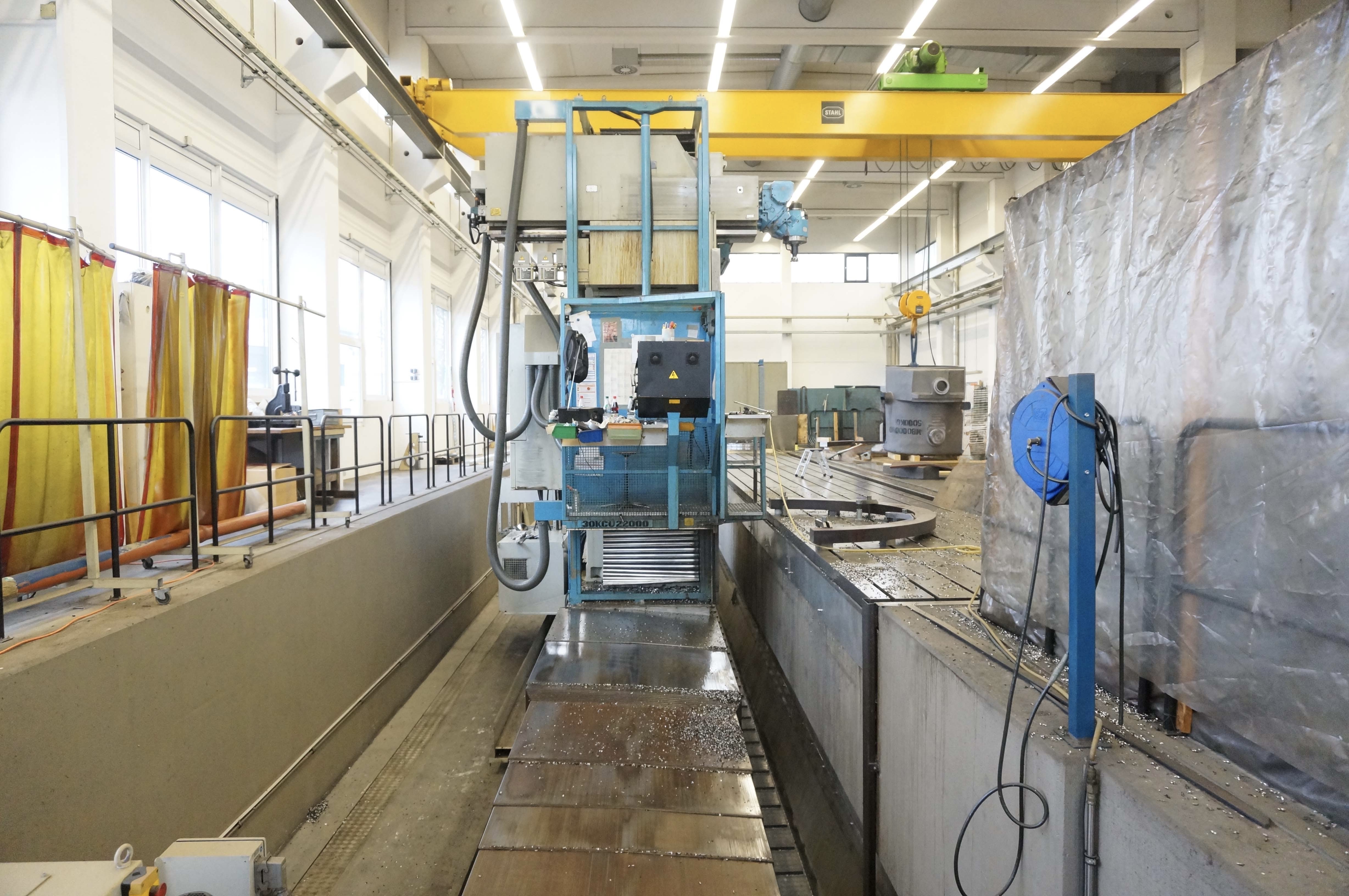

It is equipped with a full guarding. The pendant CNC control can be positioned to work from both the front and rear of the machine thus providing proper control of machine operation.

If you want more information, dont think twice and contact us. Whether you just want to know the price of this Zayer 30KCU 22000 Milling Machine, or if you prefer more information or come see the machine, we will help you.

Call +34 976 682 331, or send us an email to: info@maq-euro.com

Milling machines - Travelling column milling machines

Ref 1001108

  • Year: 2000
  • CNC: Siemens 840D
  • X axis travel: 22000mm
  • Y axis travel: 1500mm
  • Z axis travel: 3000mm
  • ATC: 30
  • Tool Taper: ISO 50 DIN 69871 AD 50

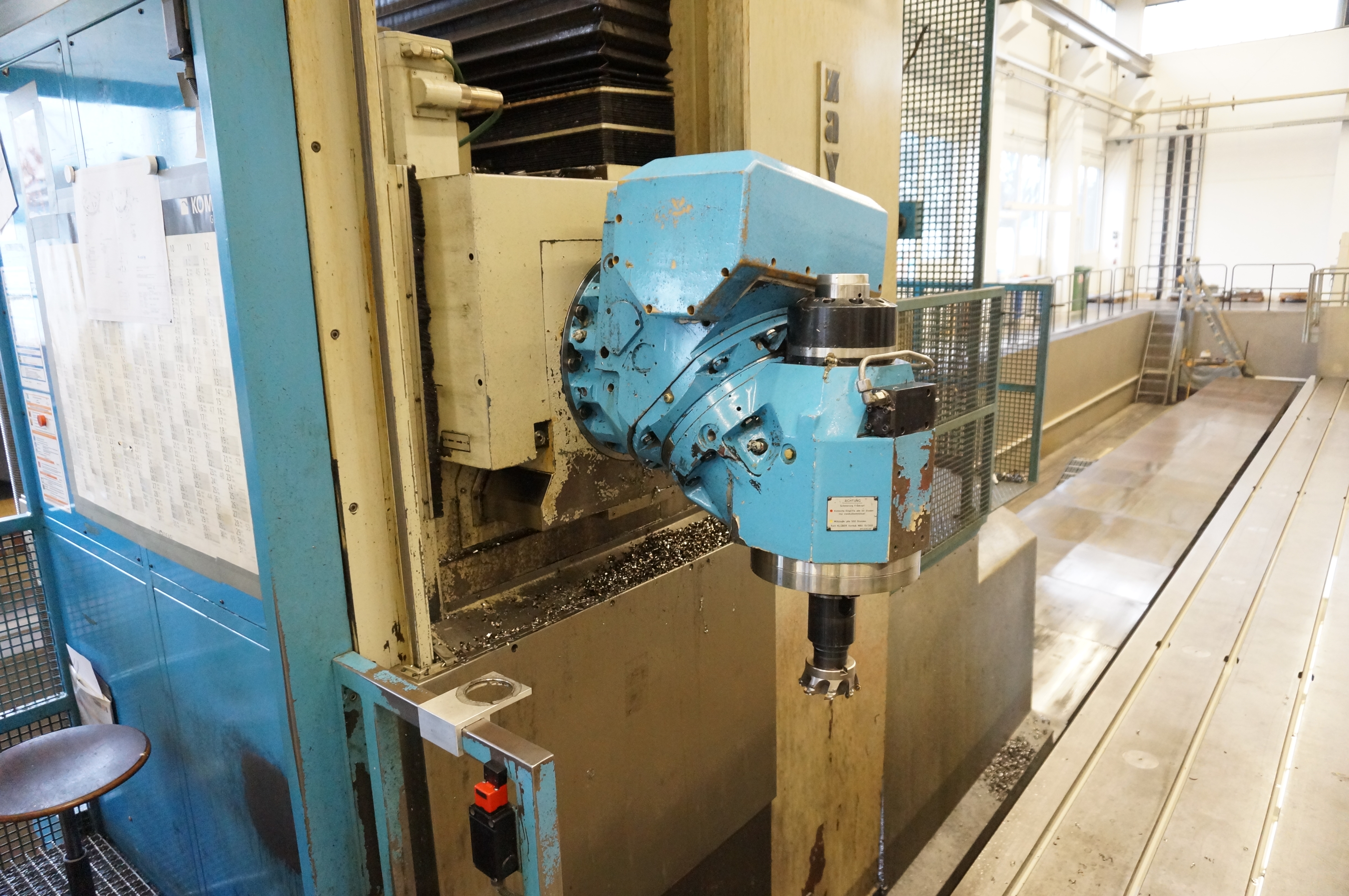

  • Head swivels: CNC Auto. 360.000 + 360.000 A+B
  • Speeds: 6000 r.p.m.
  • Feeds: 15000mm/min
  • Swarf conveyor: SI / YES / OUI / JA
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Equipped with: Mesa Stoller 6000 X 2000 X 300 mm x 2 unidades, Refrigeración interna 20 Bar, plataforma operario

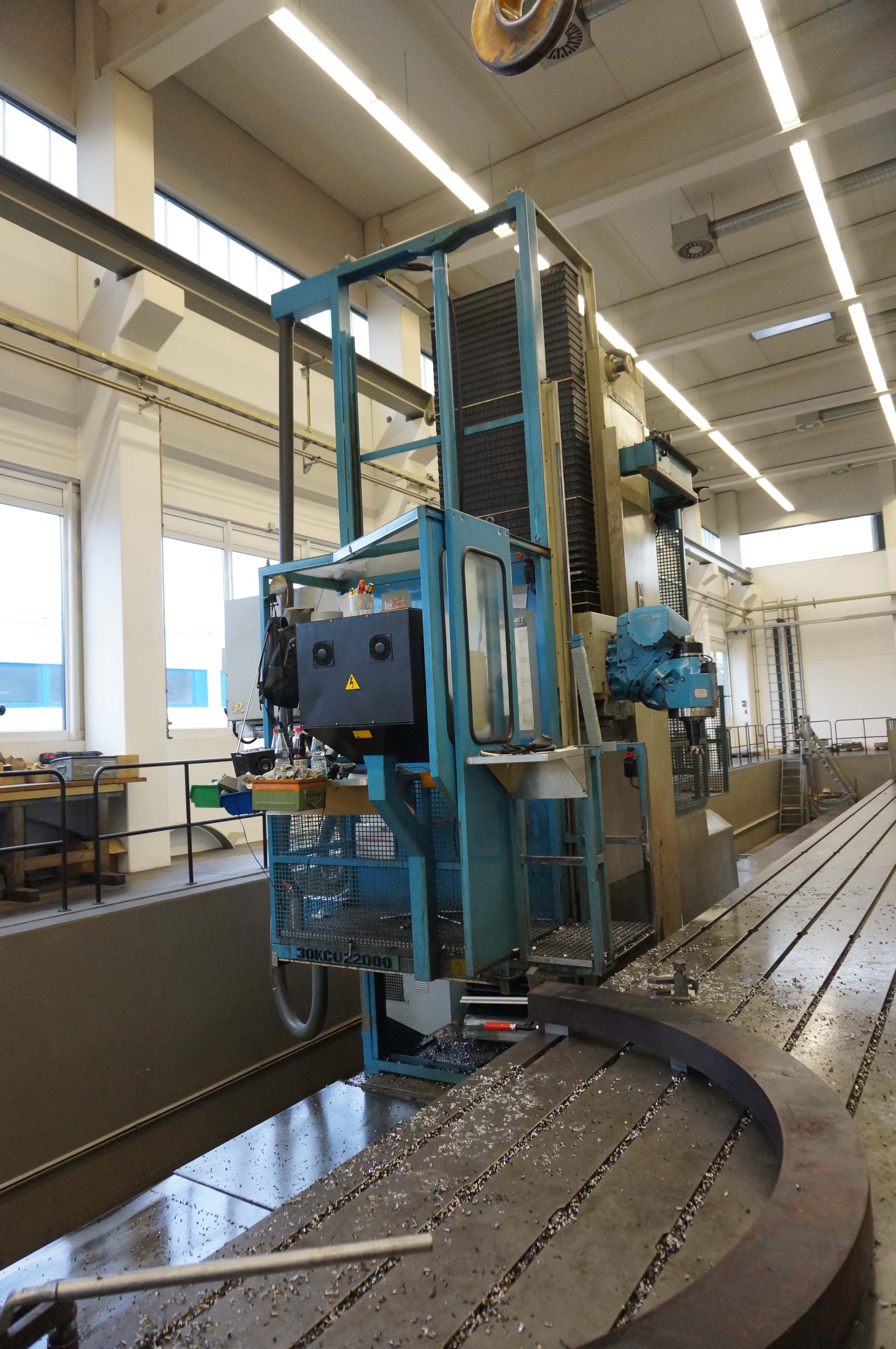

  • Equipment: Stoller Table 6000 X 2000 X 300 mm x 2 units, Through tool Coolant 20 Bar, operator platform
  • Electronic Handwheel: SI / YES / OUI / JA
  • Motor: 37KW
  • Weight: 68.000 kilos
