This machine is available for immediate delivery at our main exhibition in Zaragoza. Contact us for price or more details.

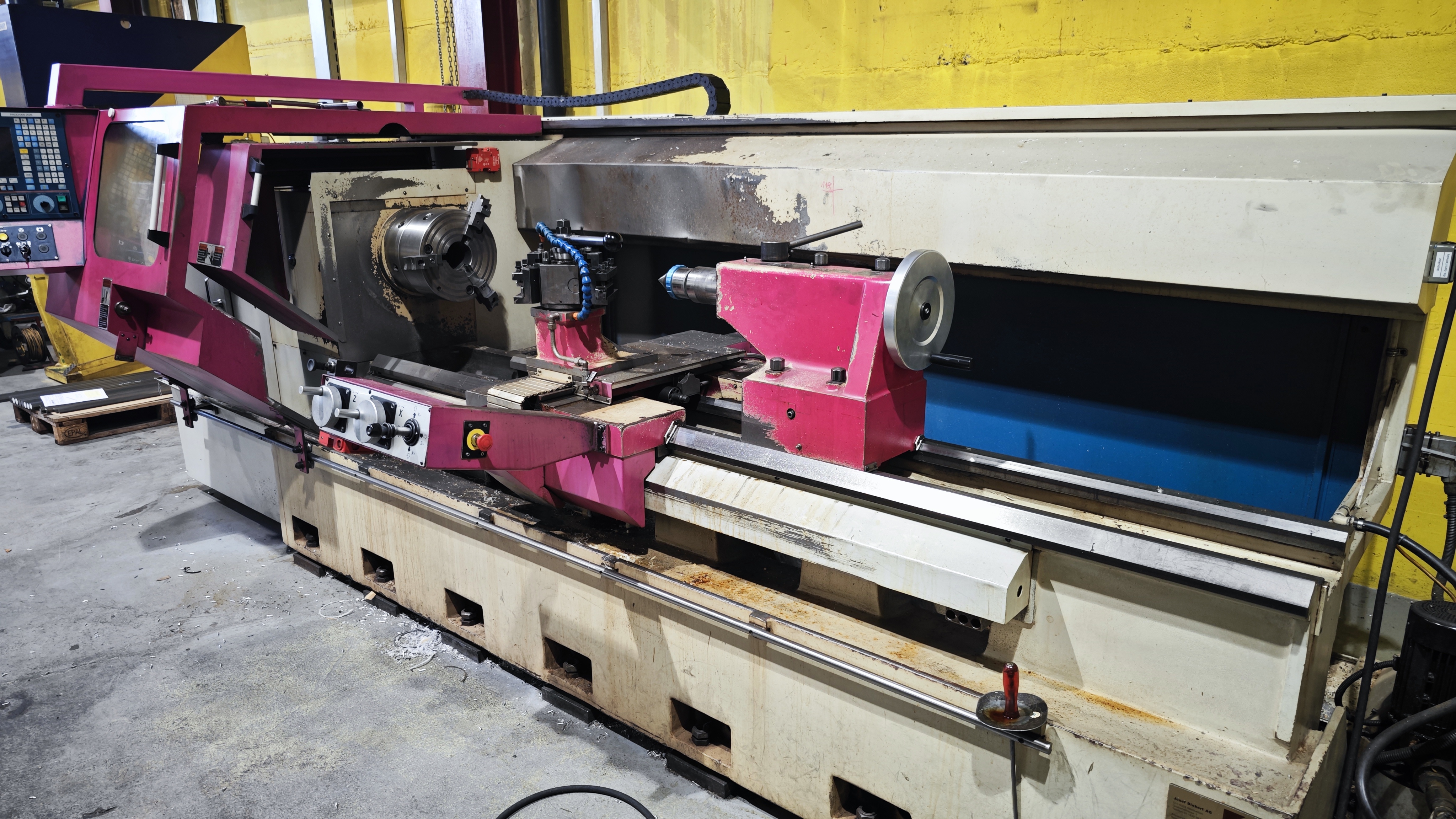

Second-hand Geminis GHT4 720 x 2000 milling machine for sale. Belonging to the Geminis GHT series (CNC centre lathe machines), it has been inspected by our team and is in excellent condition in our warehouse in Zaragoza.

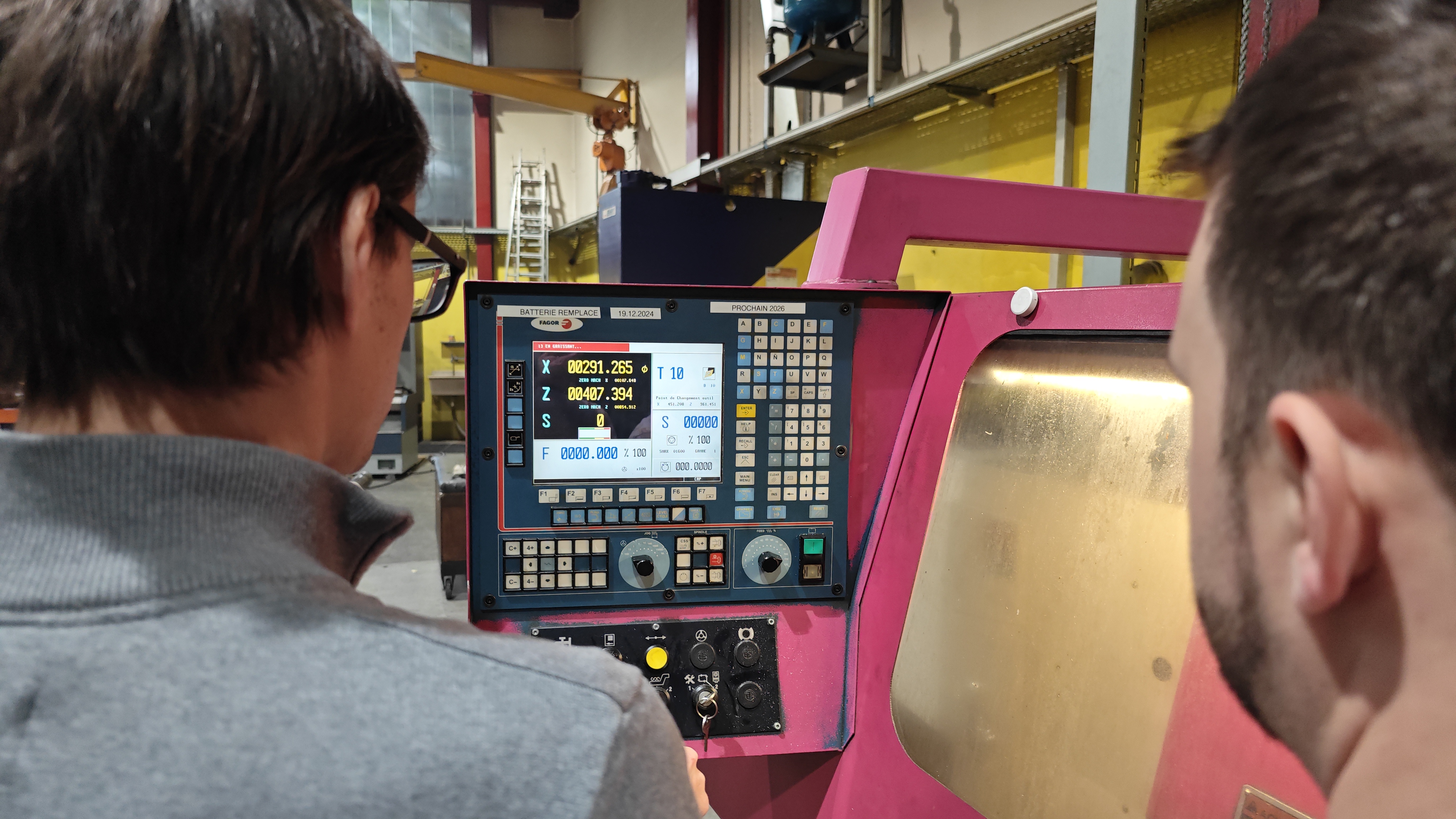

It is equipped with a full guarding. The pendant CNC control can be positioned to work from both the front and rear of the machine thus providing proper control of machine operation.

If you want more information, dont think twice and contact us. Whether you just want to know the price of this Geminis GHT4 720 x 2000 CNC centre lathe, or if you prefer more information or come see the machine, we will help you.

Call +34 976 682 331, or send us an email to: info@maq-euro.com

Lathes - CNC centre lathes

Ref 1001101

  • Year: 2002

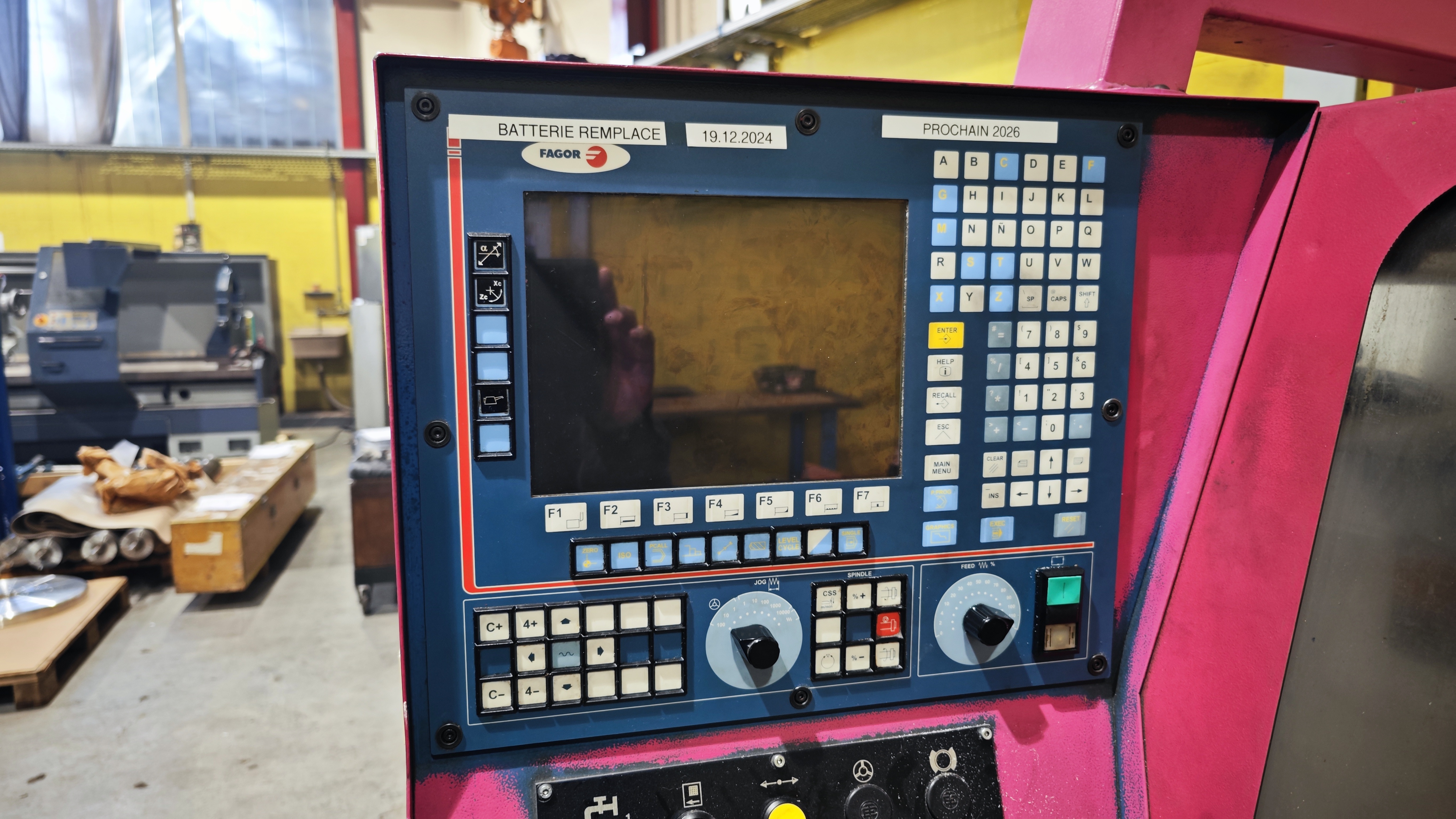

  • CNC: Fagor 8055TC
  • Swing Over Bed: 720mm
  • Distance between centres: 2000mm
  • Swing Over Cross Slide: 470mm
  • Centre height: 366mm
  • Spindle Speeds: 0 - 1.600 r.p.m.
  • Spindle Bore: 105mm
  • Max. Weight Workpiece: 2560 kilos

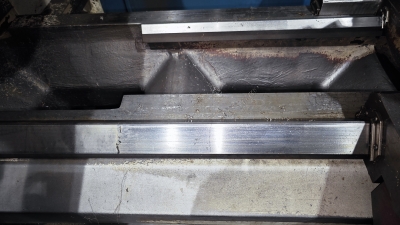

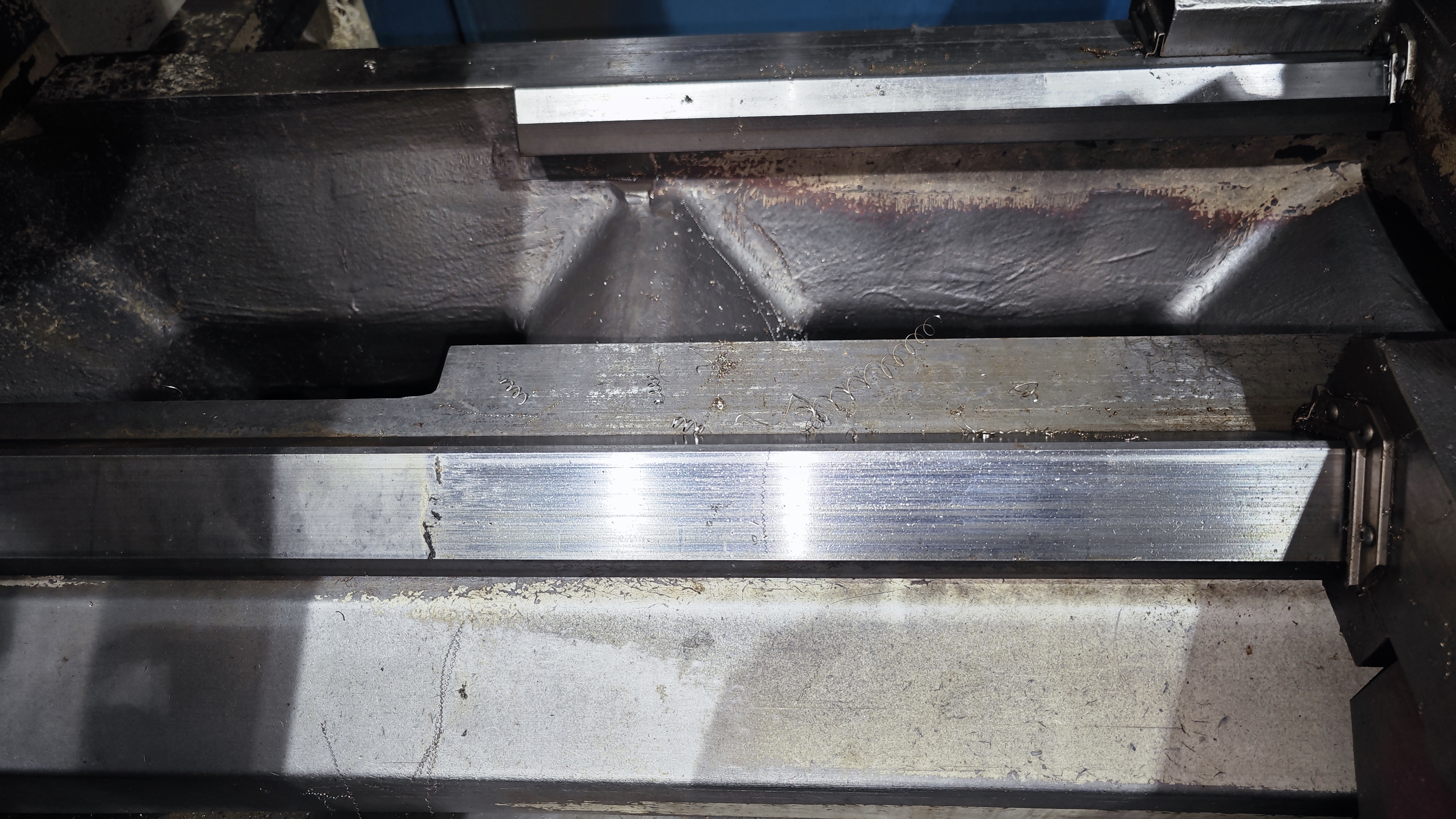

  • number of guides and type: 2 V

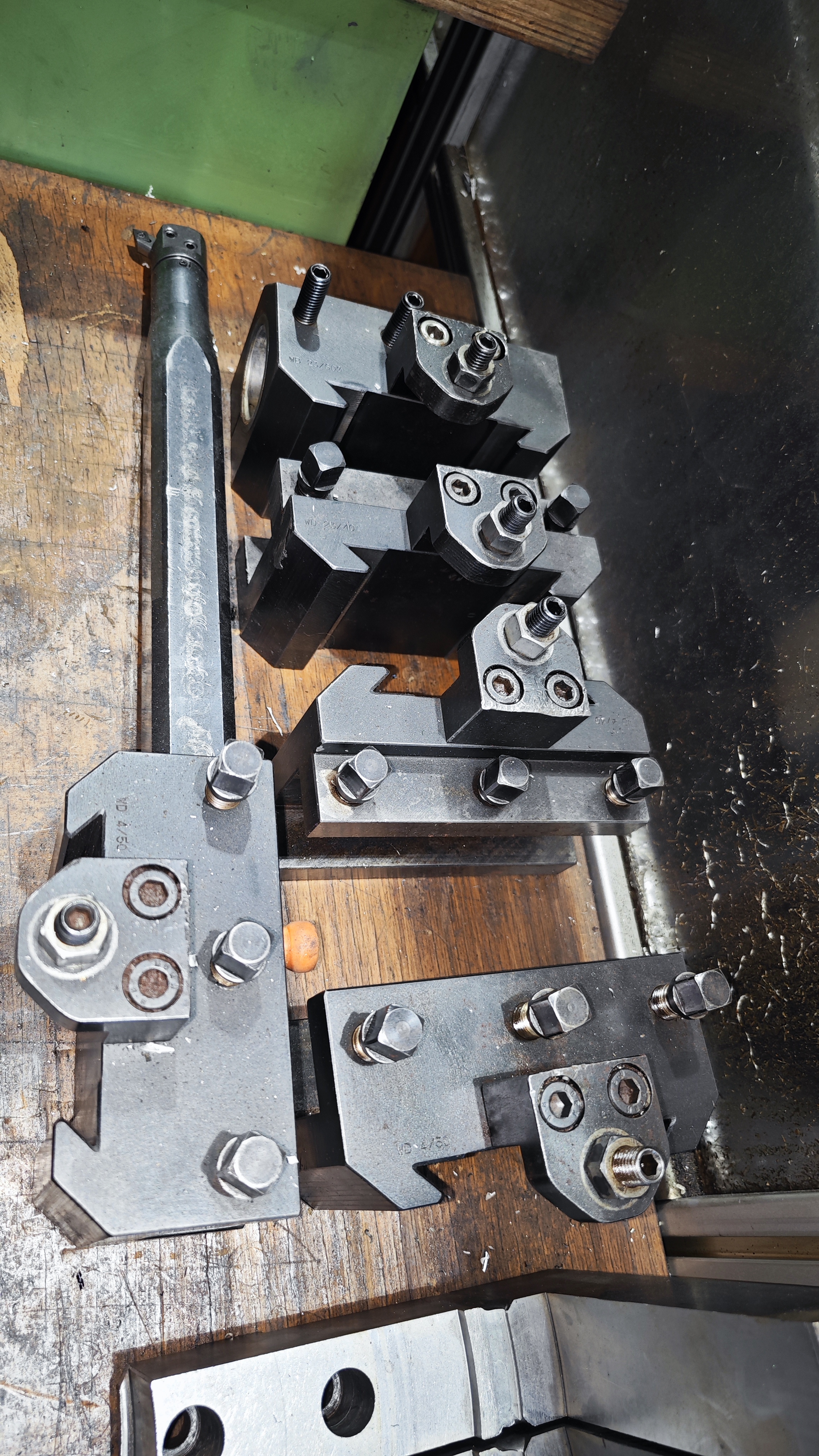

  • Quick change Turret: SI / YES / OUI / JA
  • Feeds: 8000mm/min
  • Bed width: 430mm

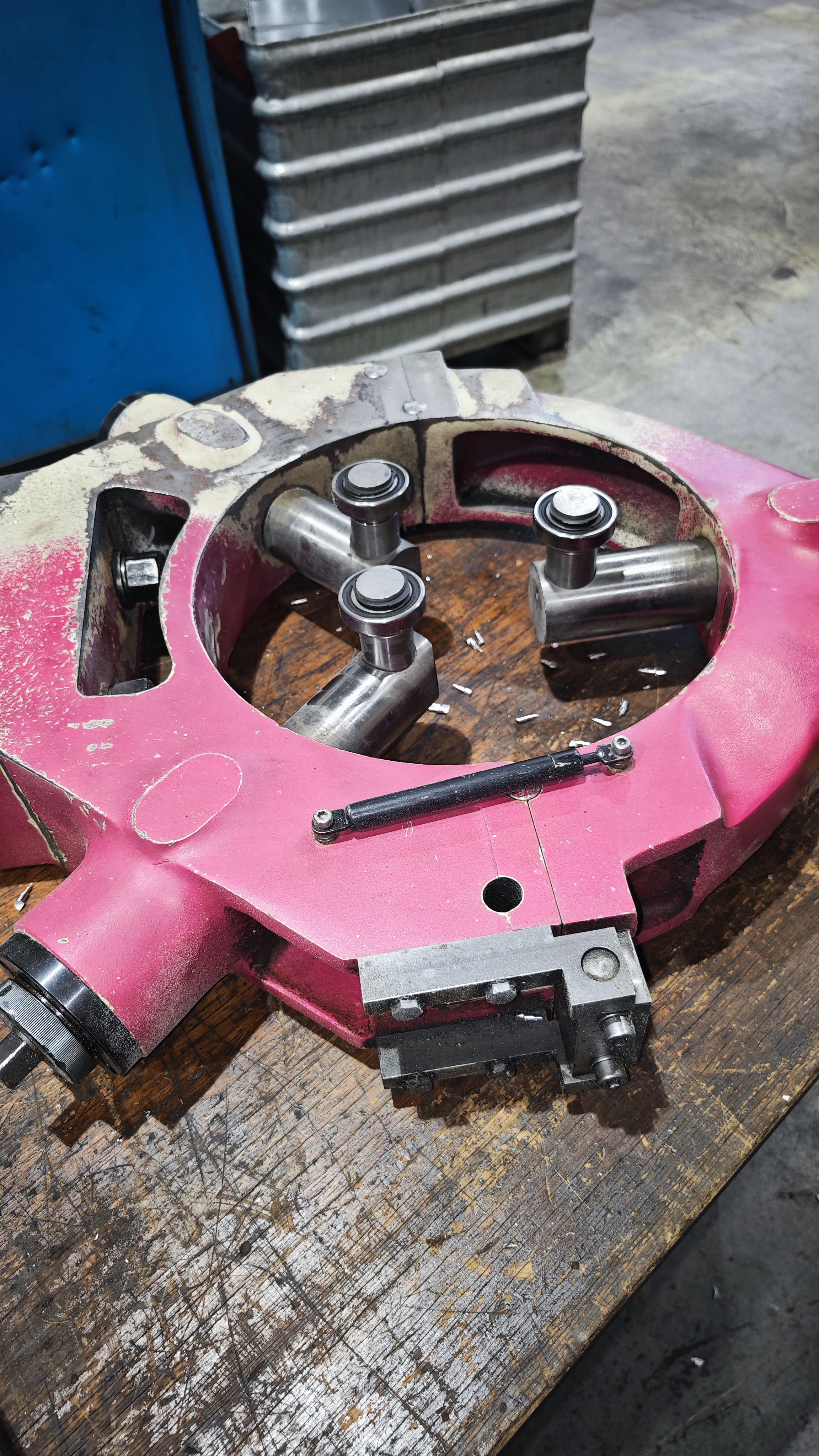

  • Fixed Steady: SI / YES / OUI / JA 360mm Dia.

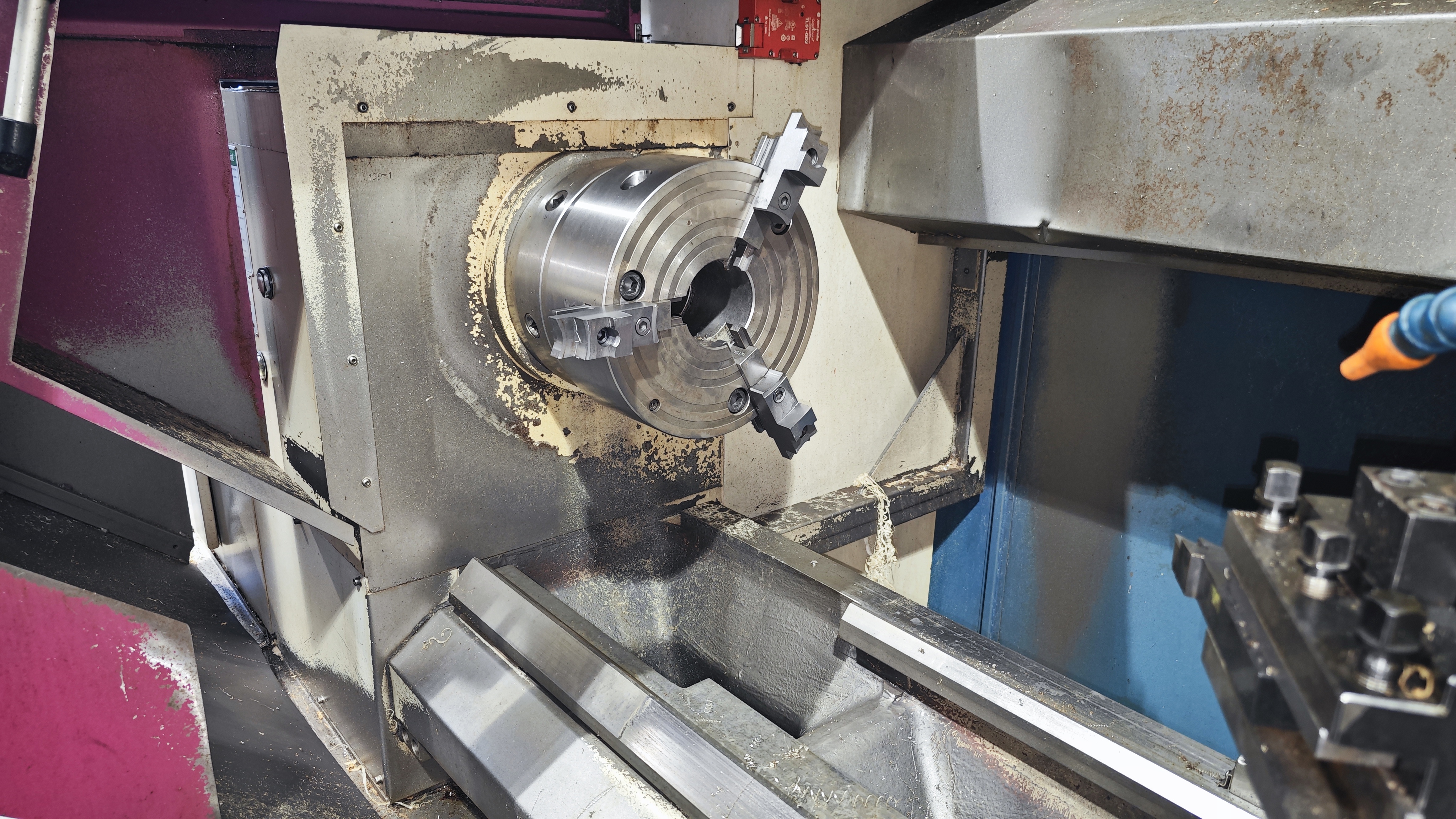

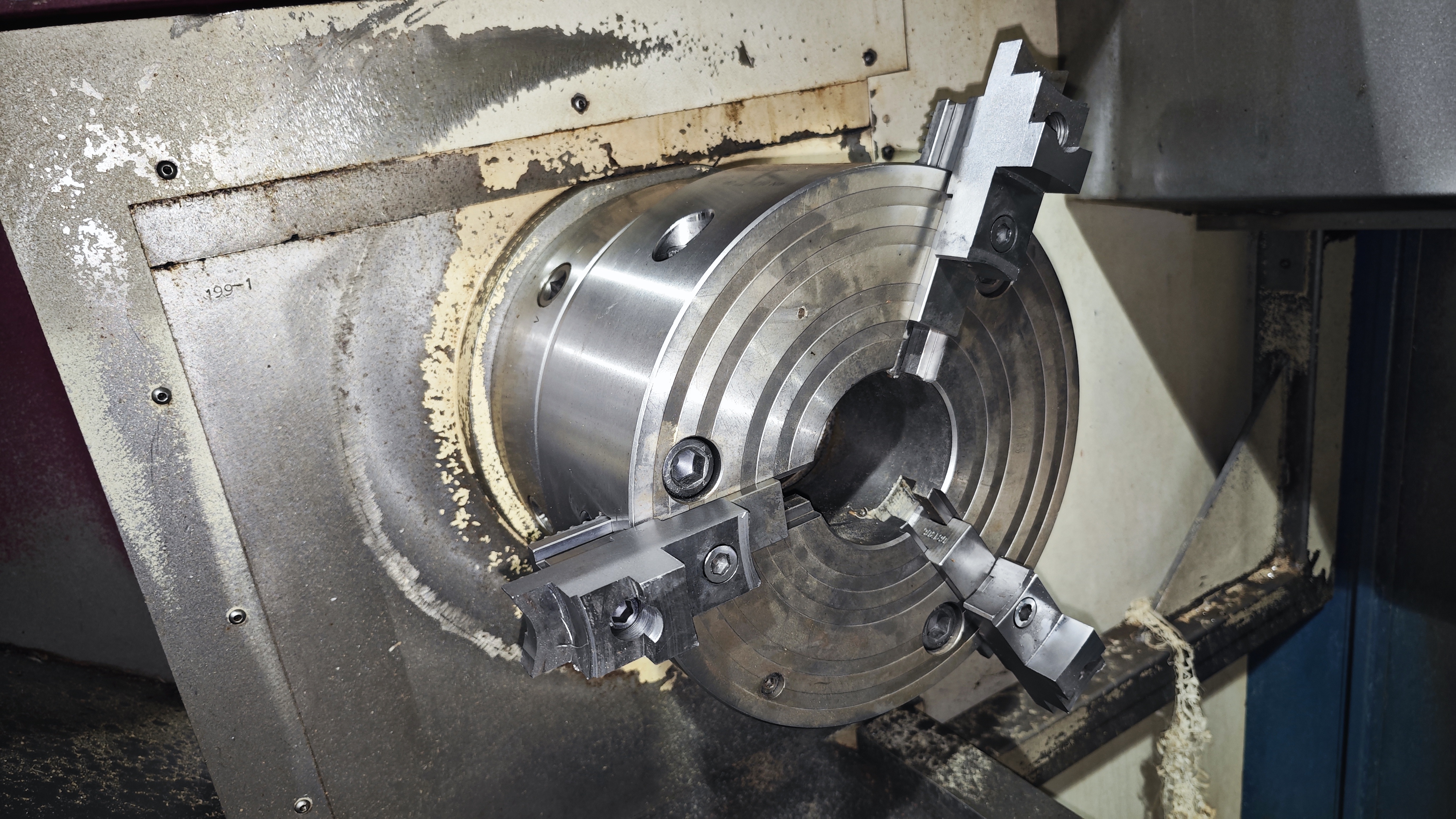

  • 3 jaw chuck: 320mm dia.
  • Serial Number: 12006
  • Equipment: Con extractor de virutas

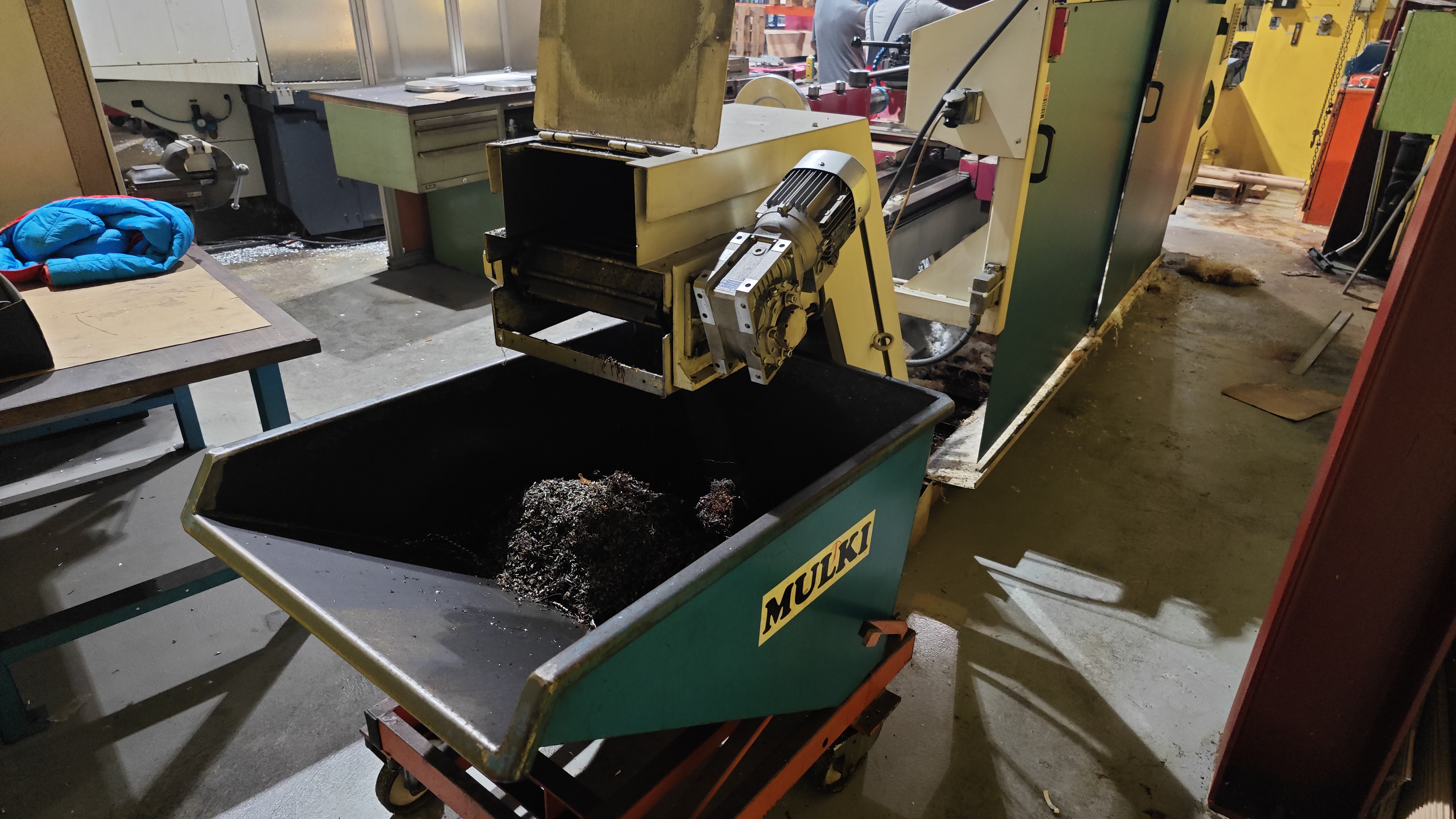

  • Equipped with: Swarf conveyor
  • Motor: 17kw
  • Length: 4700mm
  • Width: 2200mm
  • Height: 1360mm
  • Weight: 5000 kilos
