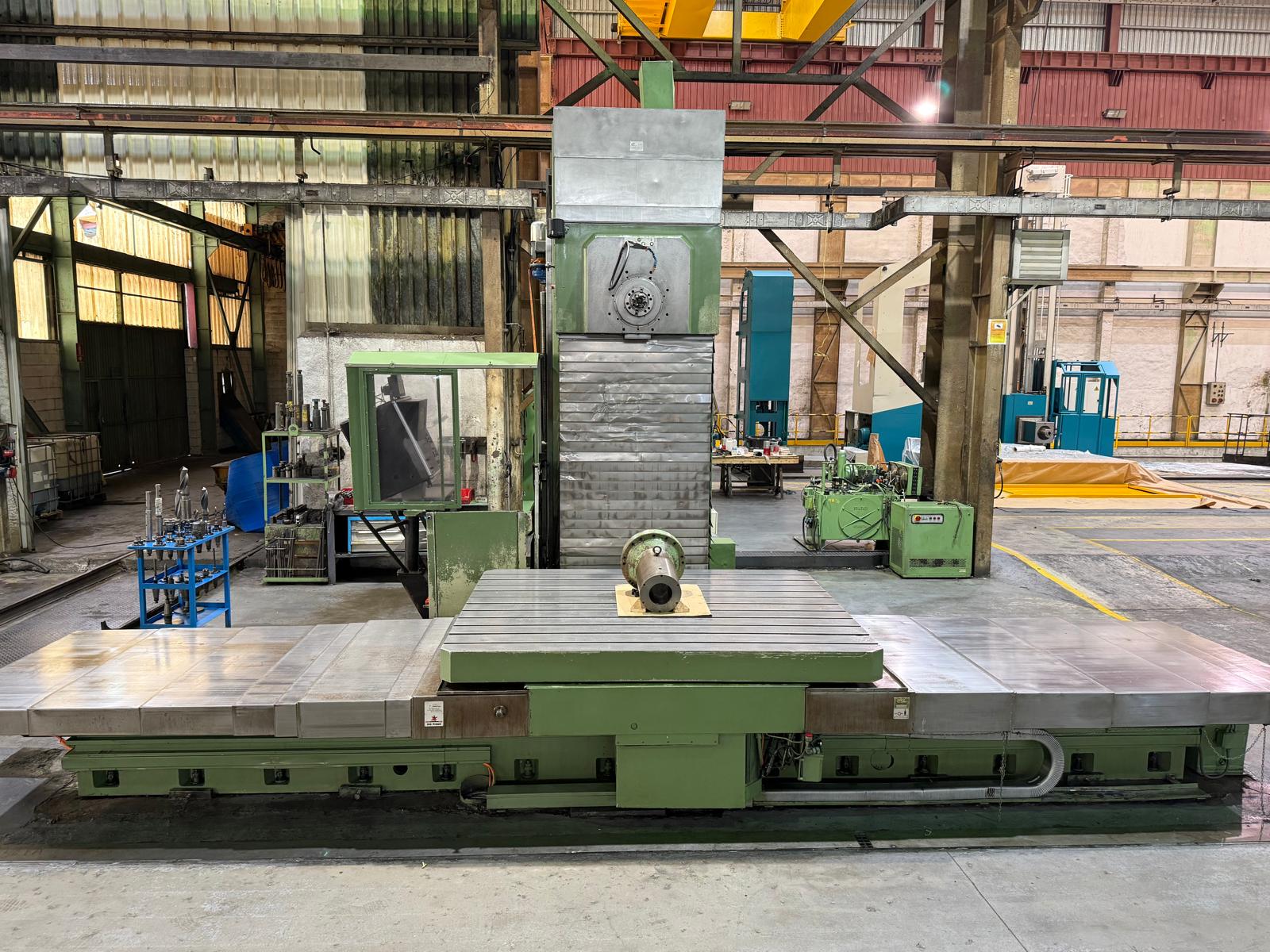

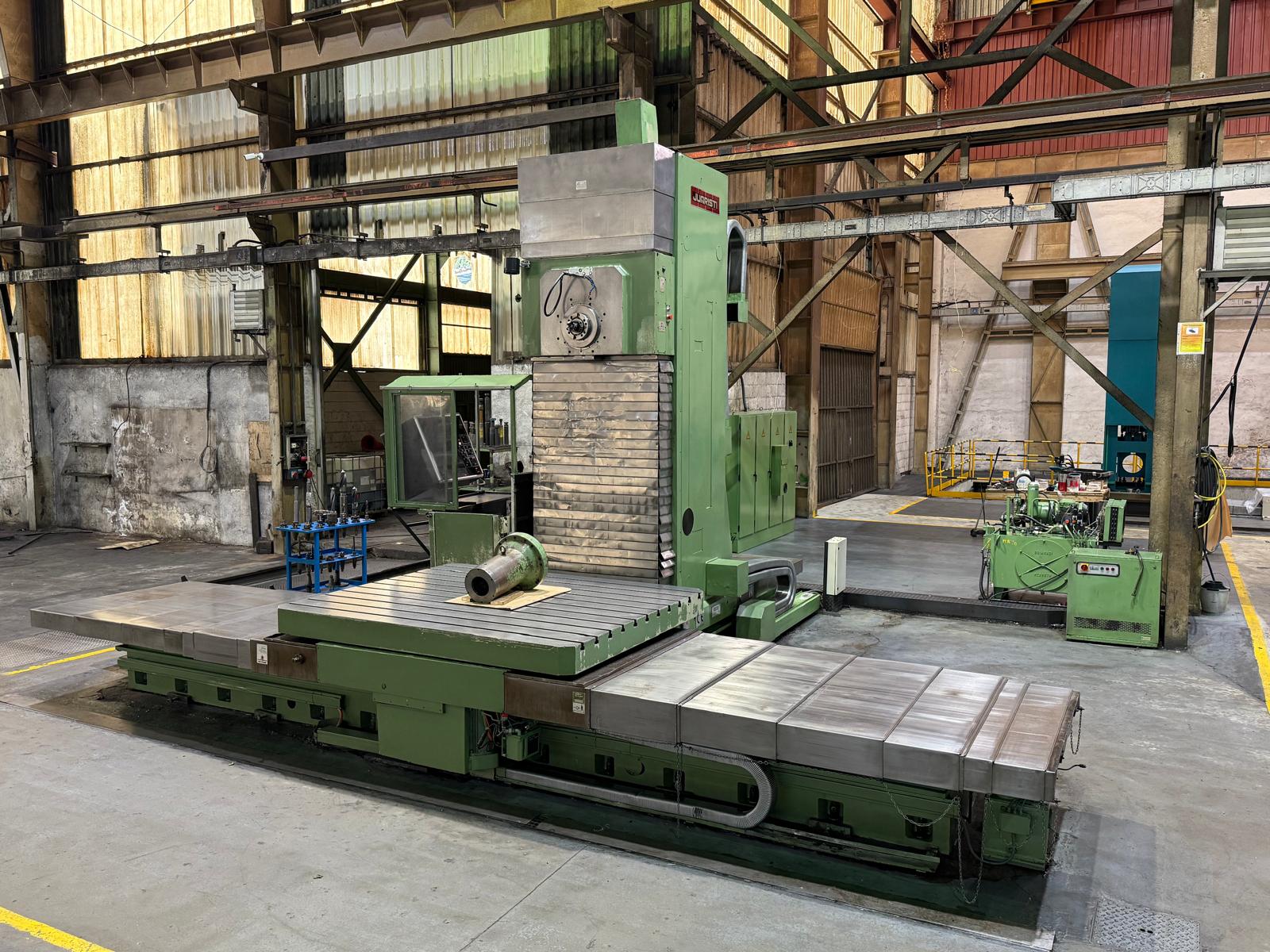

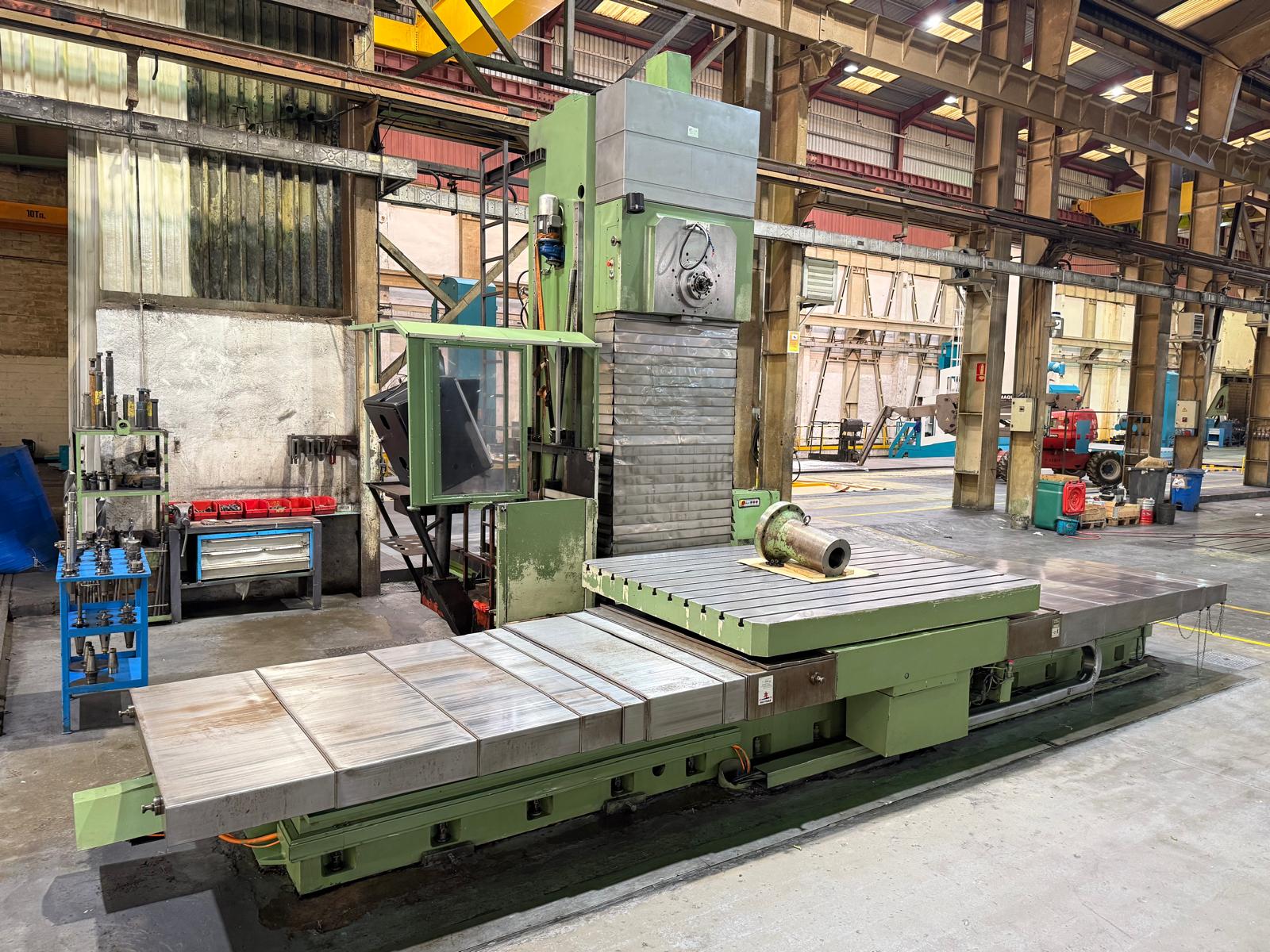

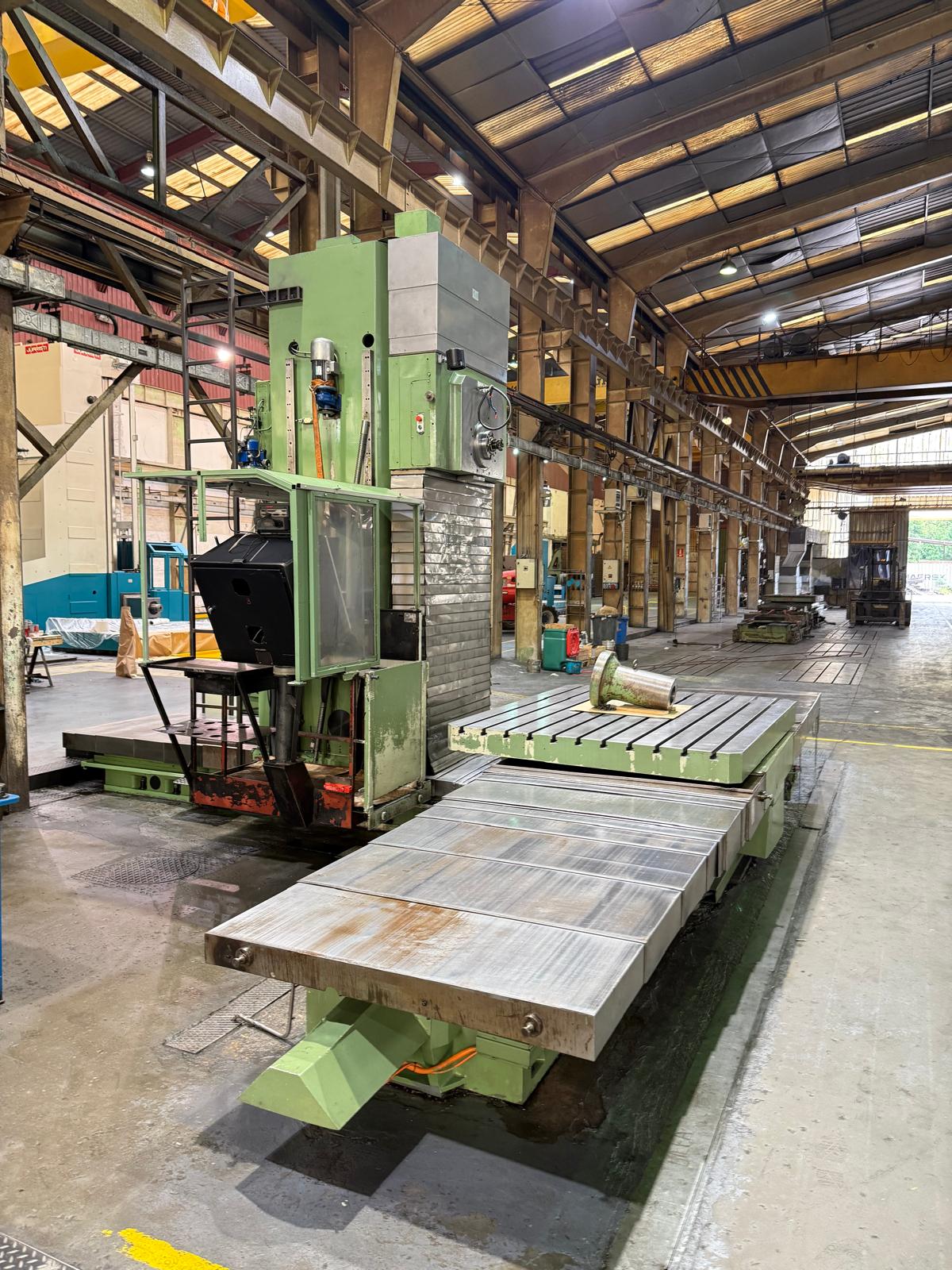

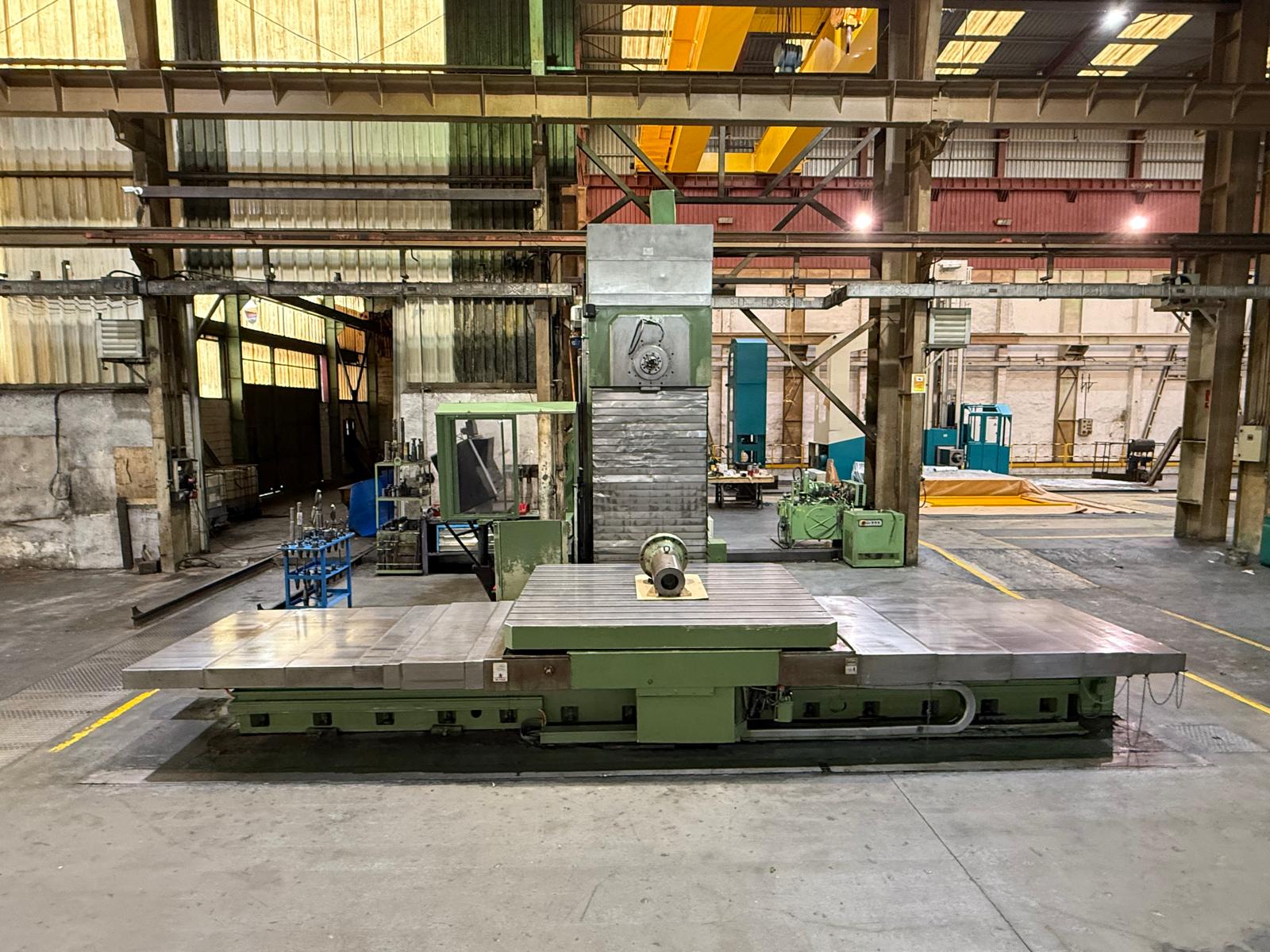

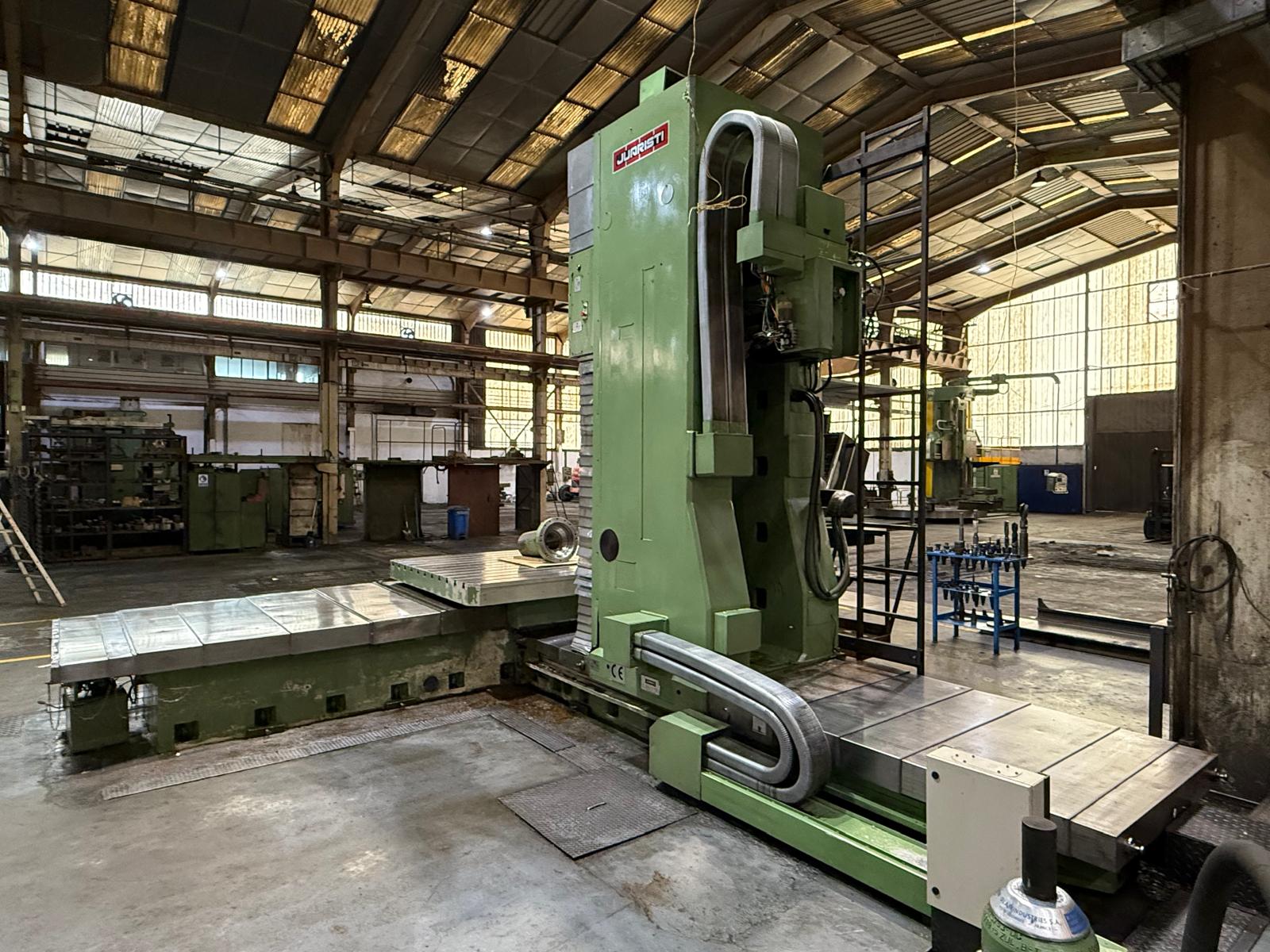

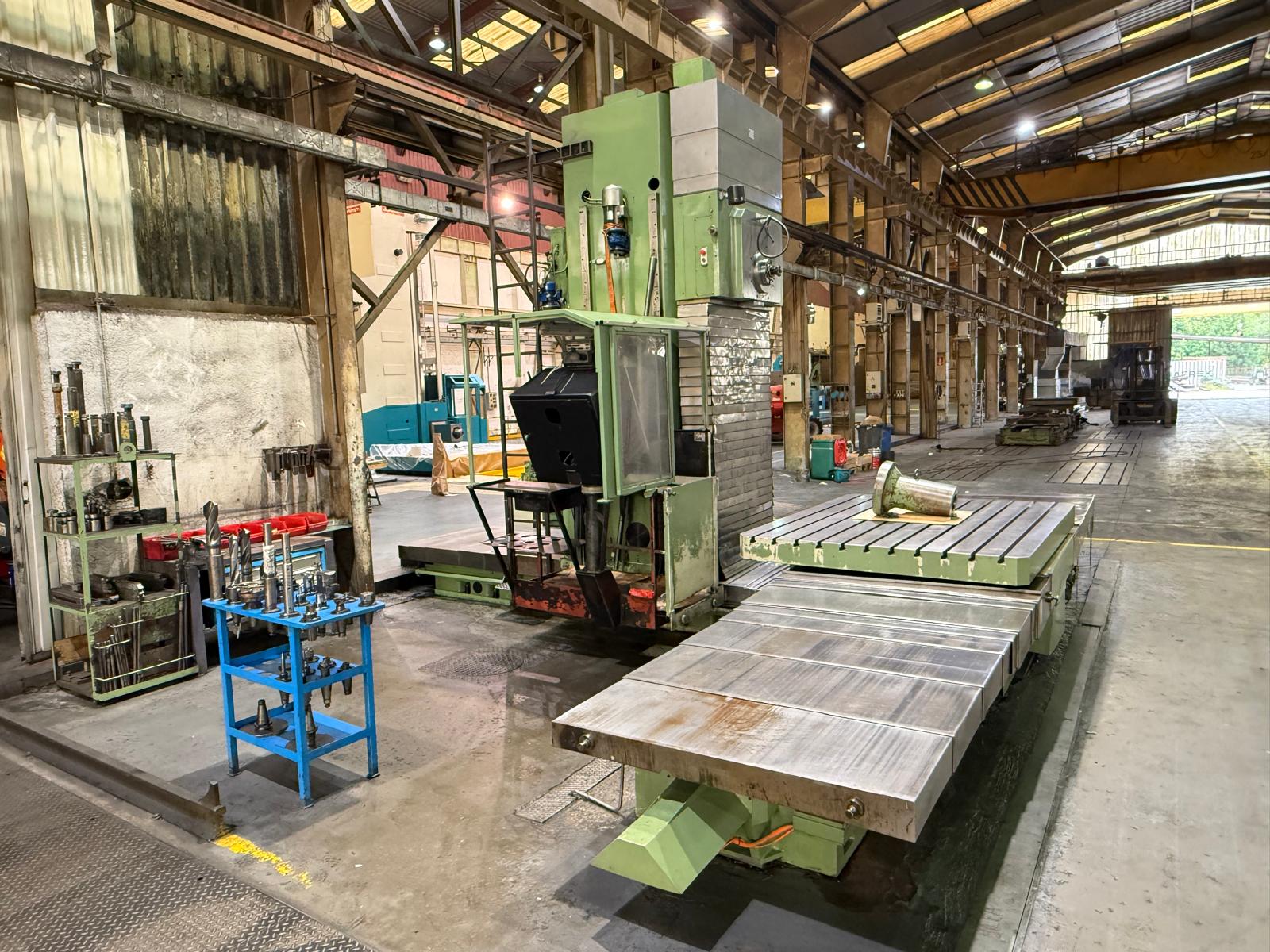

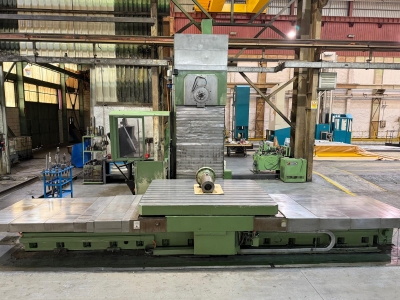

Borers - Table Type CNC Borers

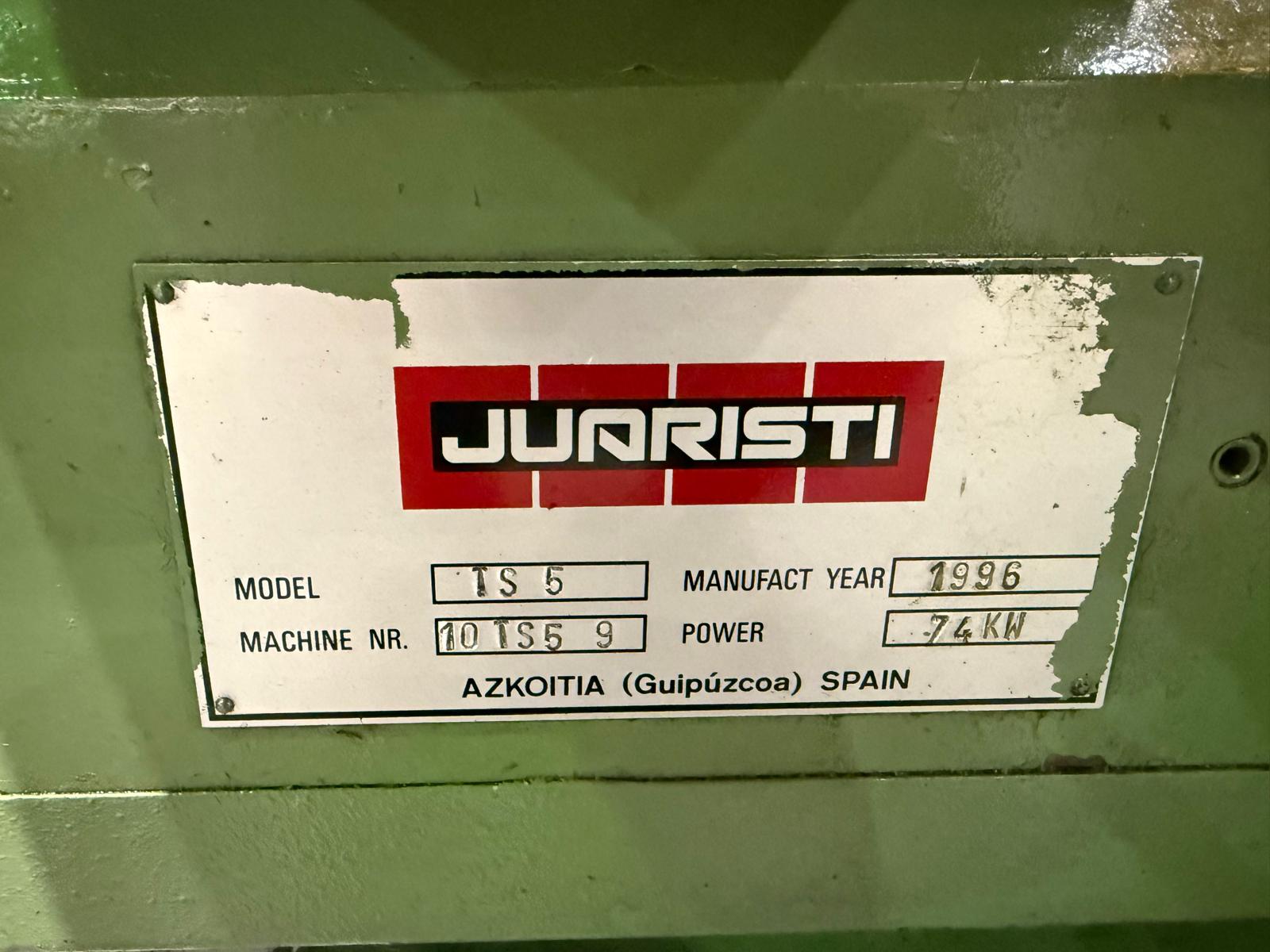

Ref 1001099

Year: 1996/2002

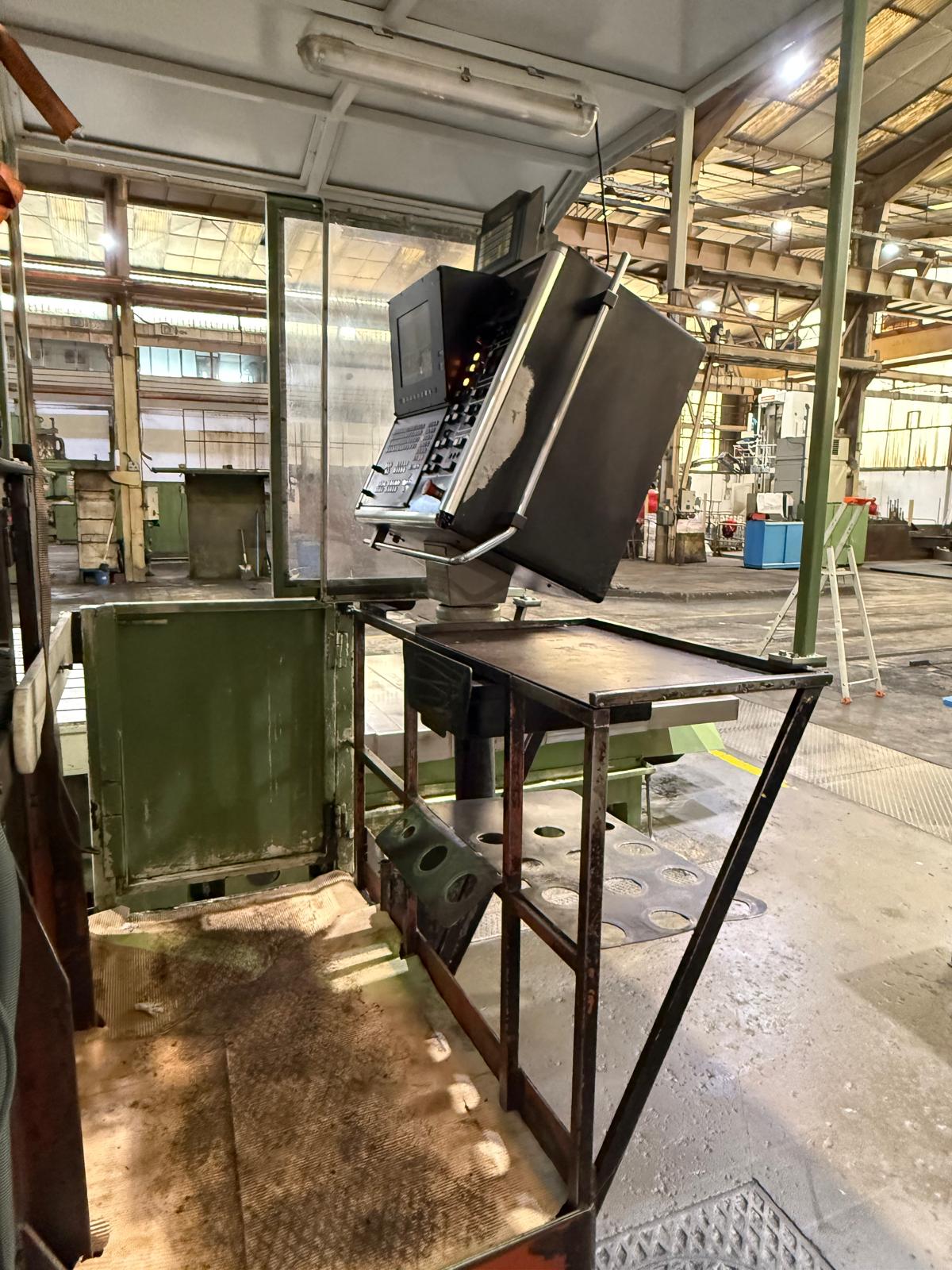

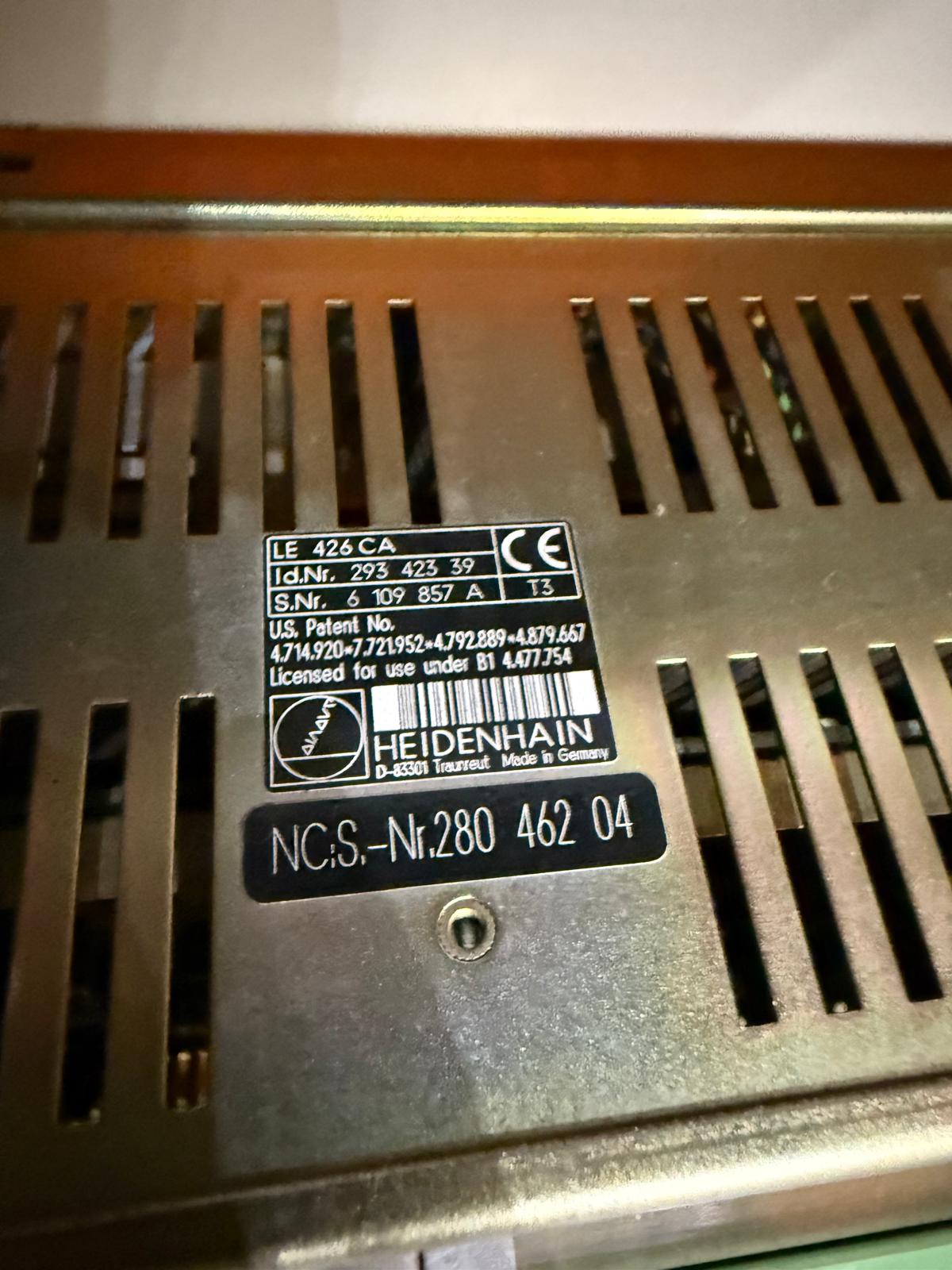

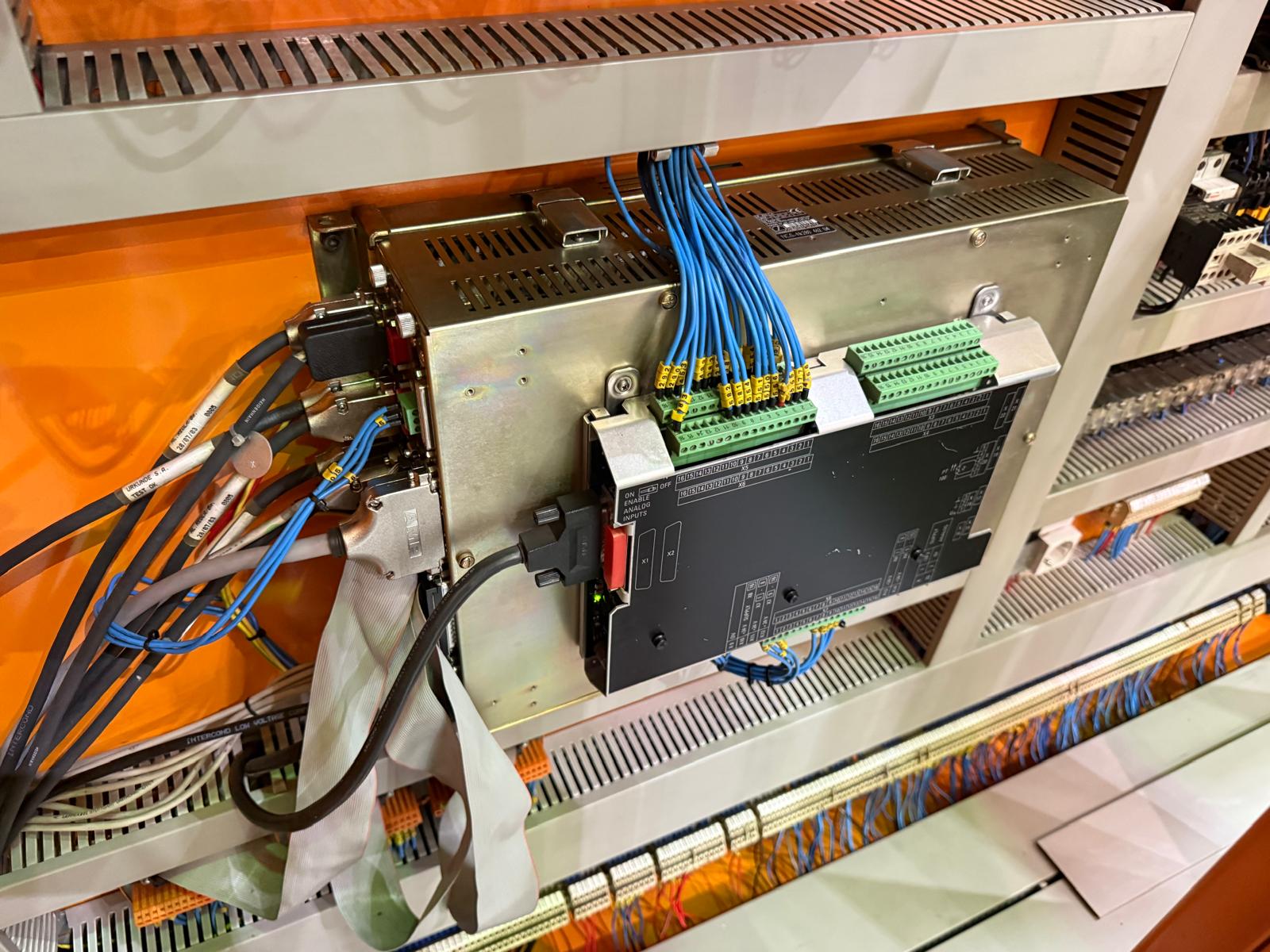

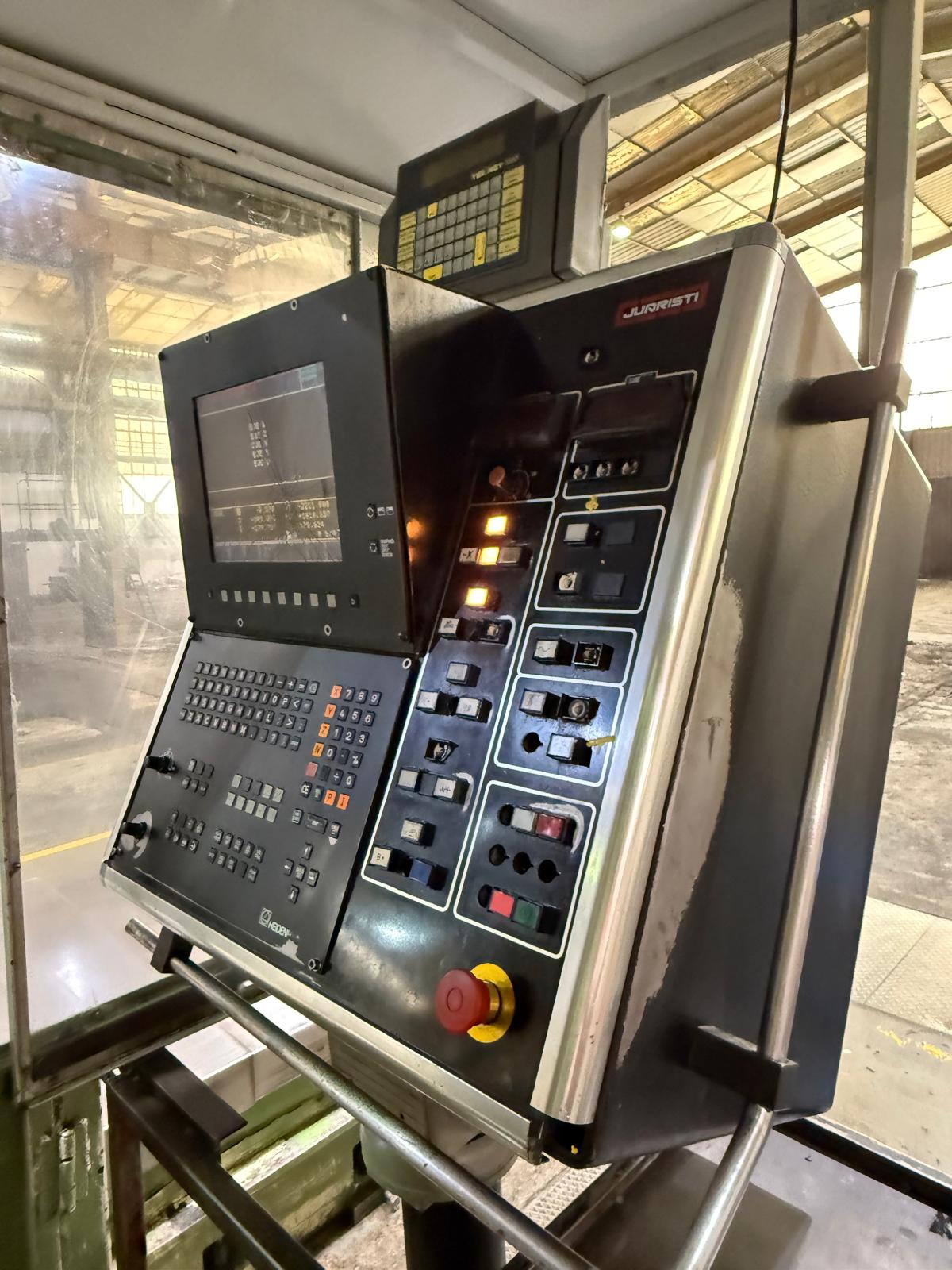

CNC: Heidenhain 430 Digital

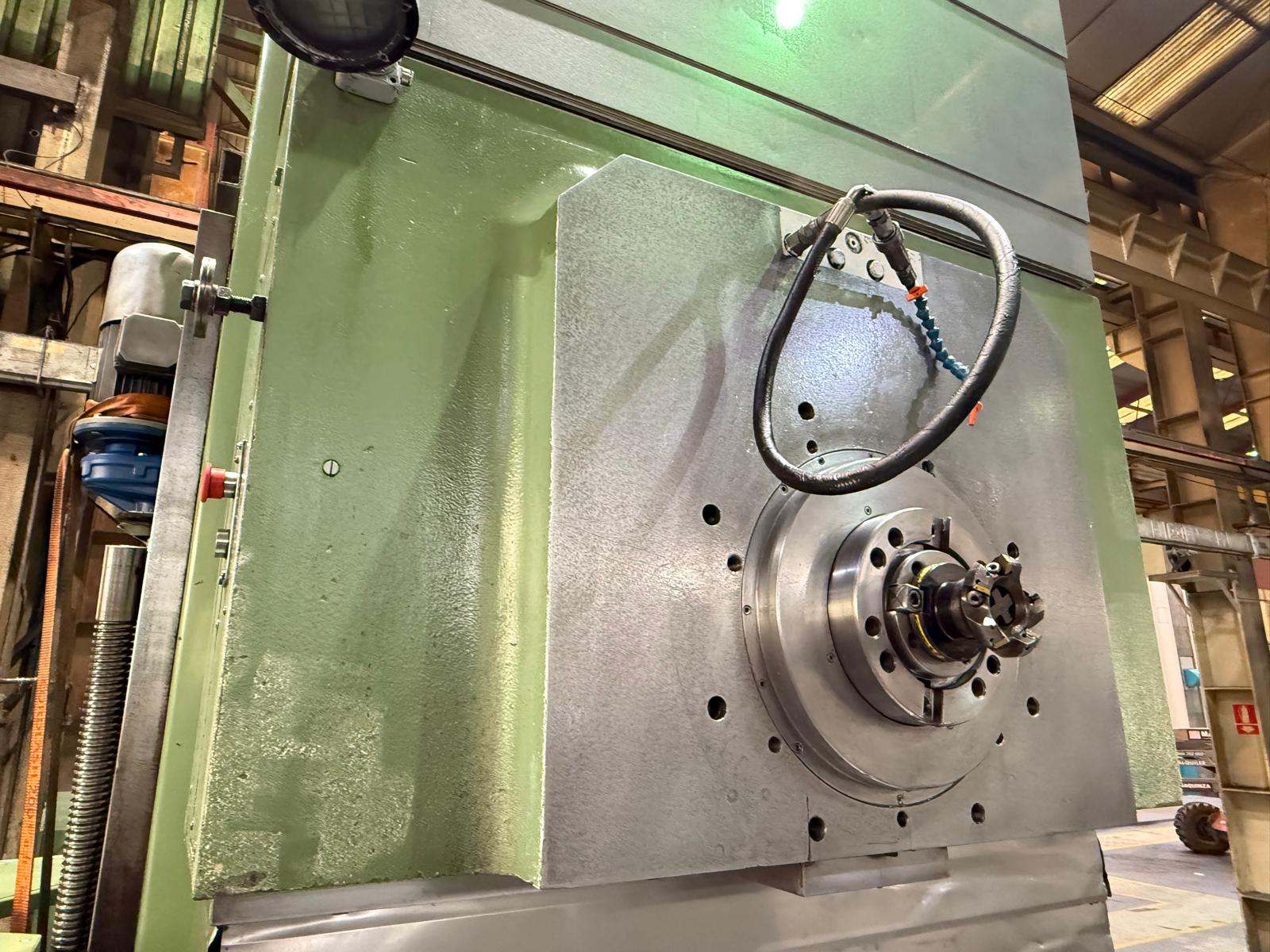

Spindle Diameter: 150mm
X axis travel: 5000mm
Y axis travel: 2500mm vertical
Z axis travel: 800mm stroke of spindle
Spindle Traverse (W axis): 2000mm (column traverse)

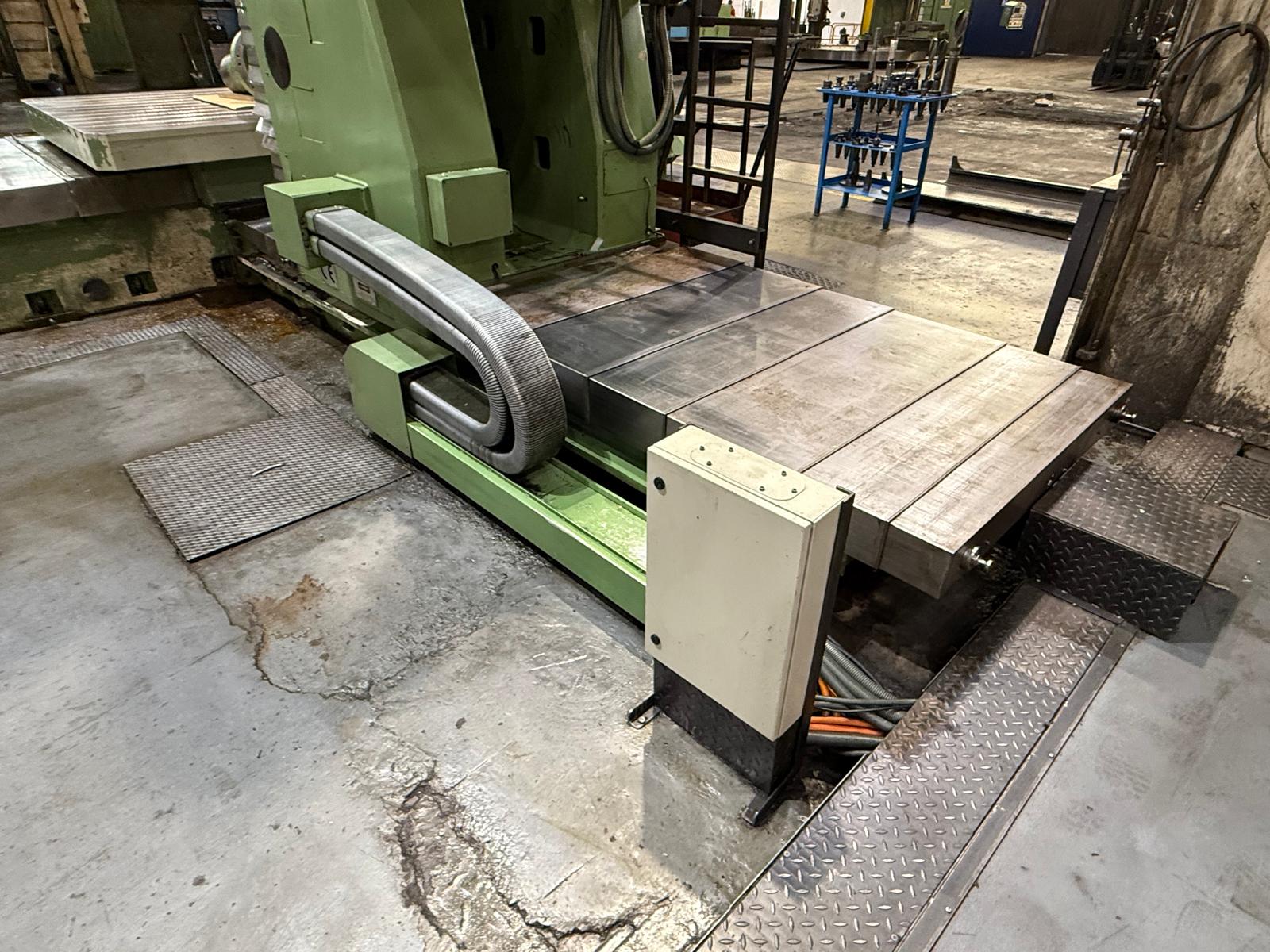

Rotary table: 360.000º

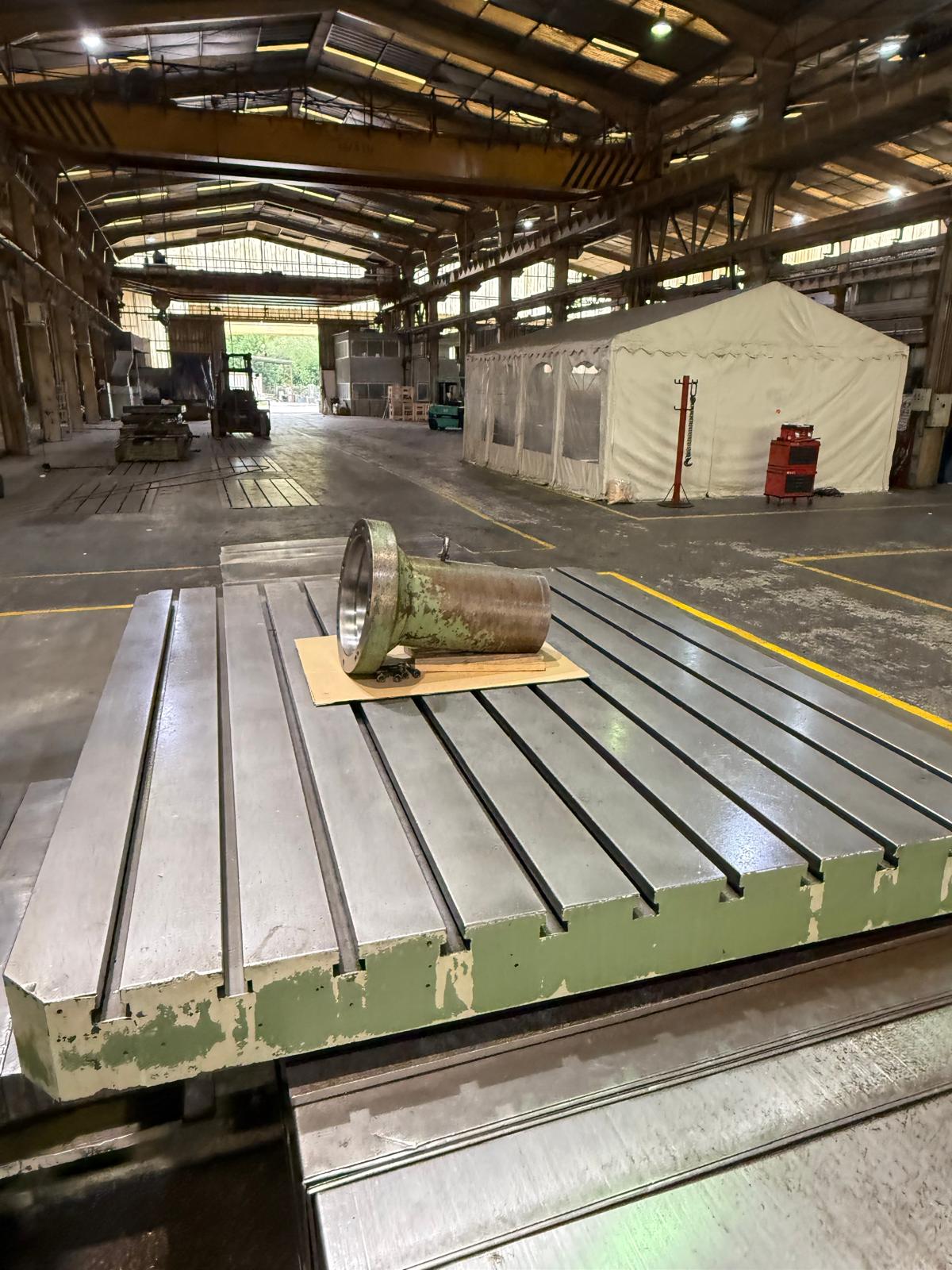

Table Size: 2000mm x 2500mm
Spindle Speeds: 2000rpm

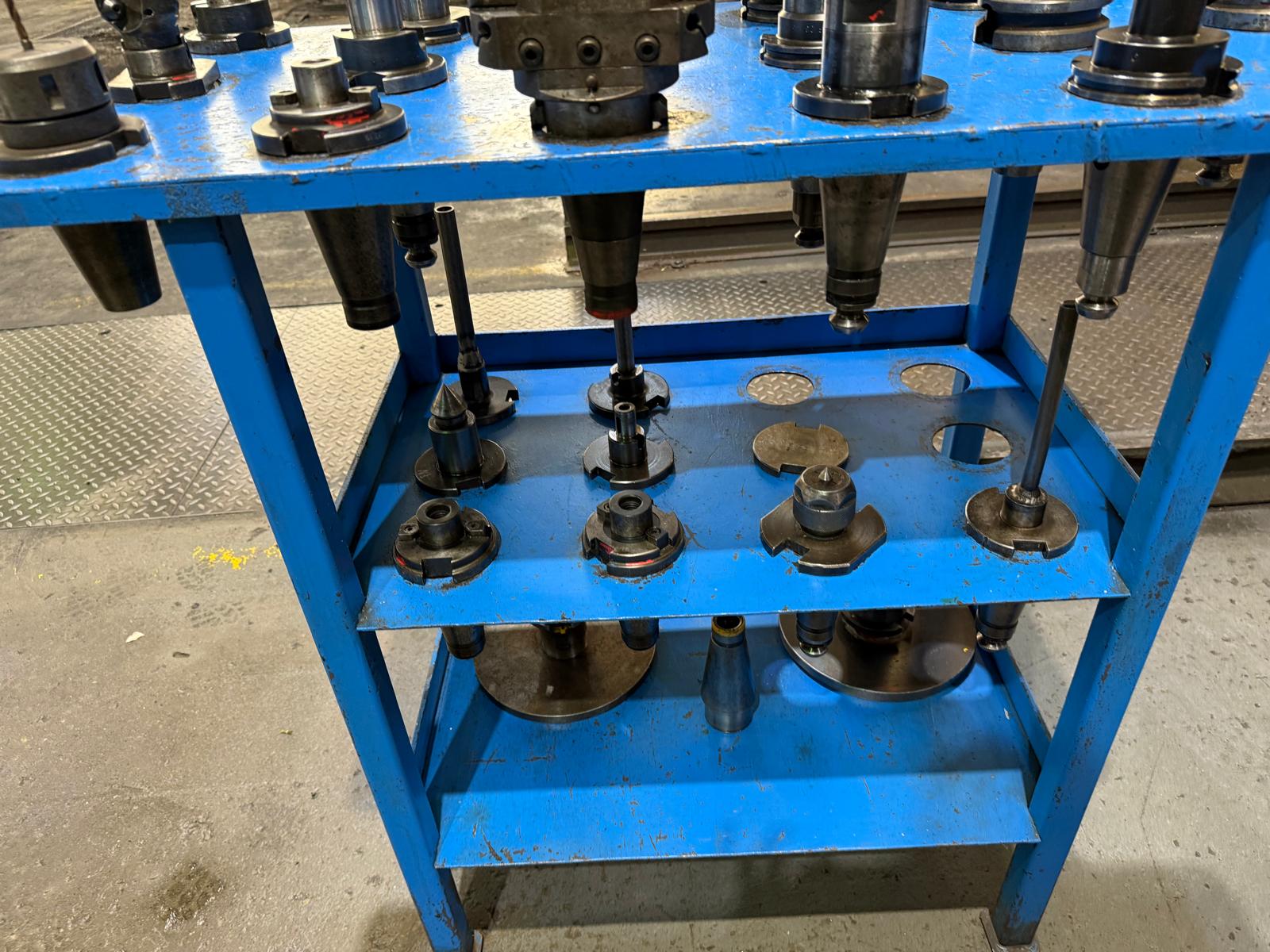

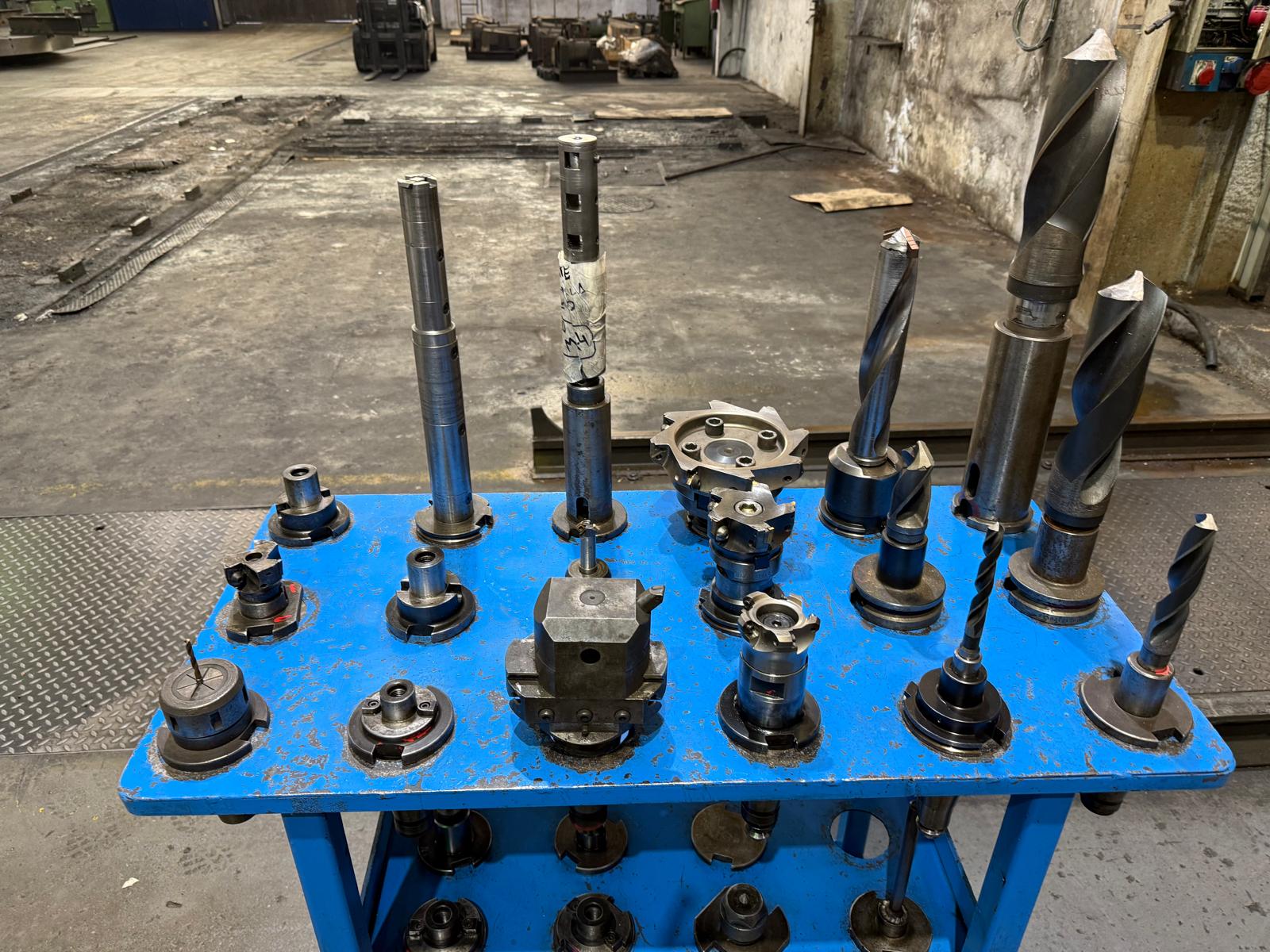

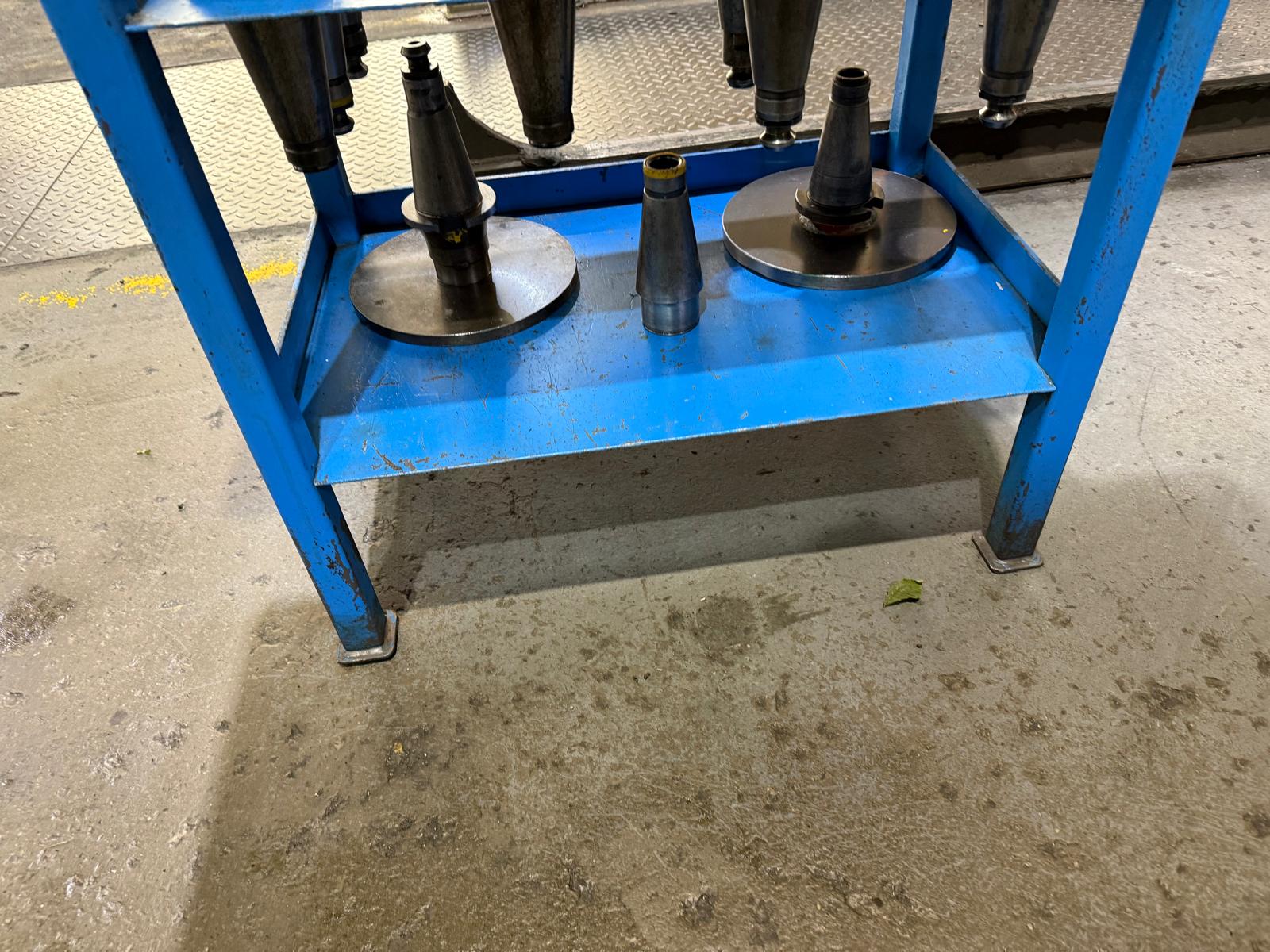

Tool Taper: ISO50
Max weight on table: 20.000 kilos
Motor: 37KW
Length: 8097mm
Width: 6719mm
Height: 4943mm
Weight: 45tns
