This machine is available for immediate delivery at our main exhibition in Zaragoza. Contact us for price or more details.

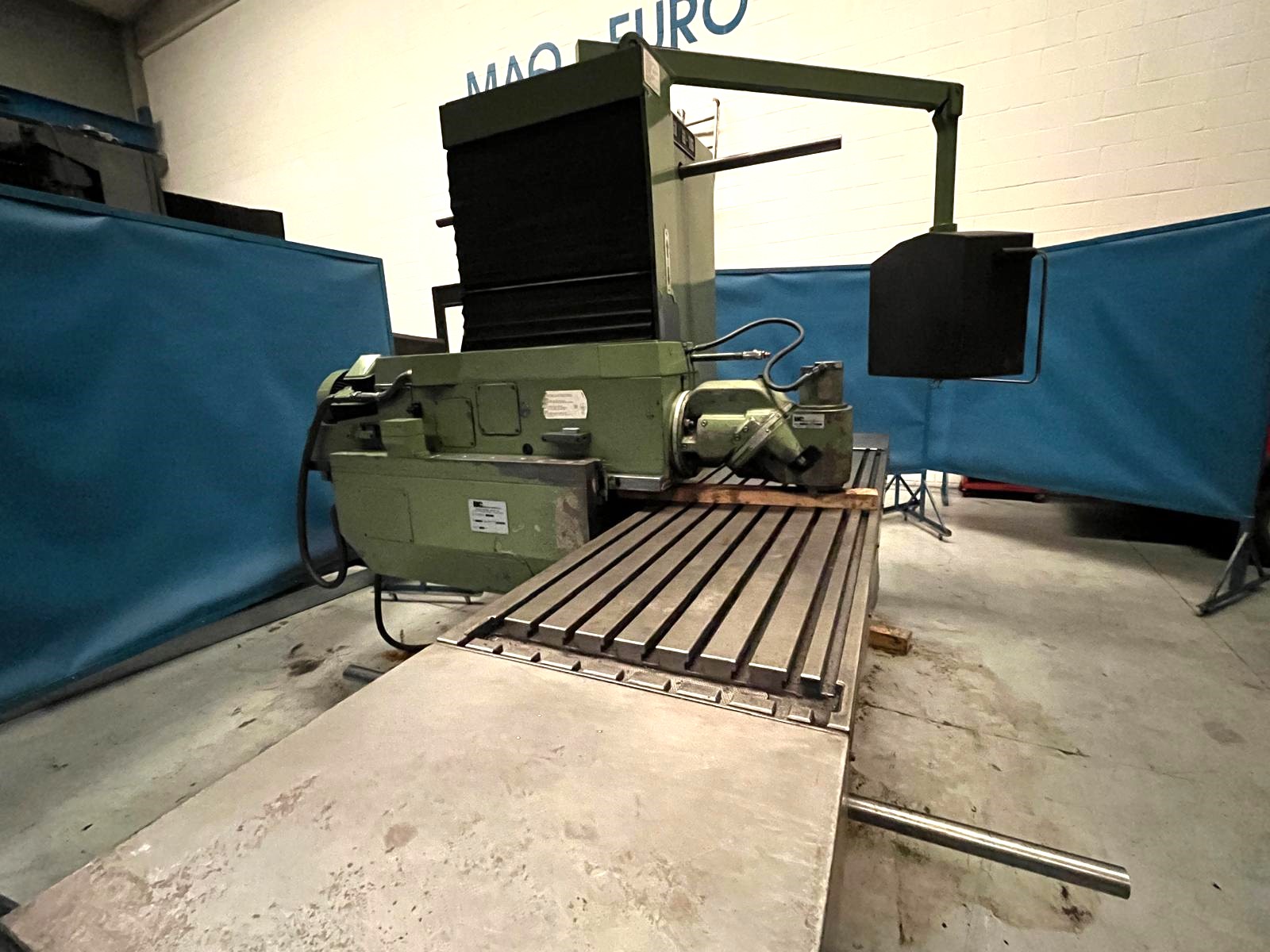

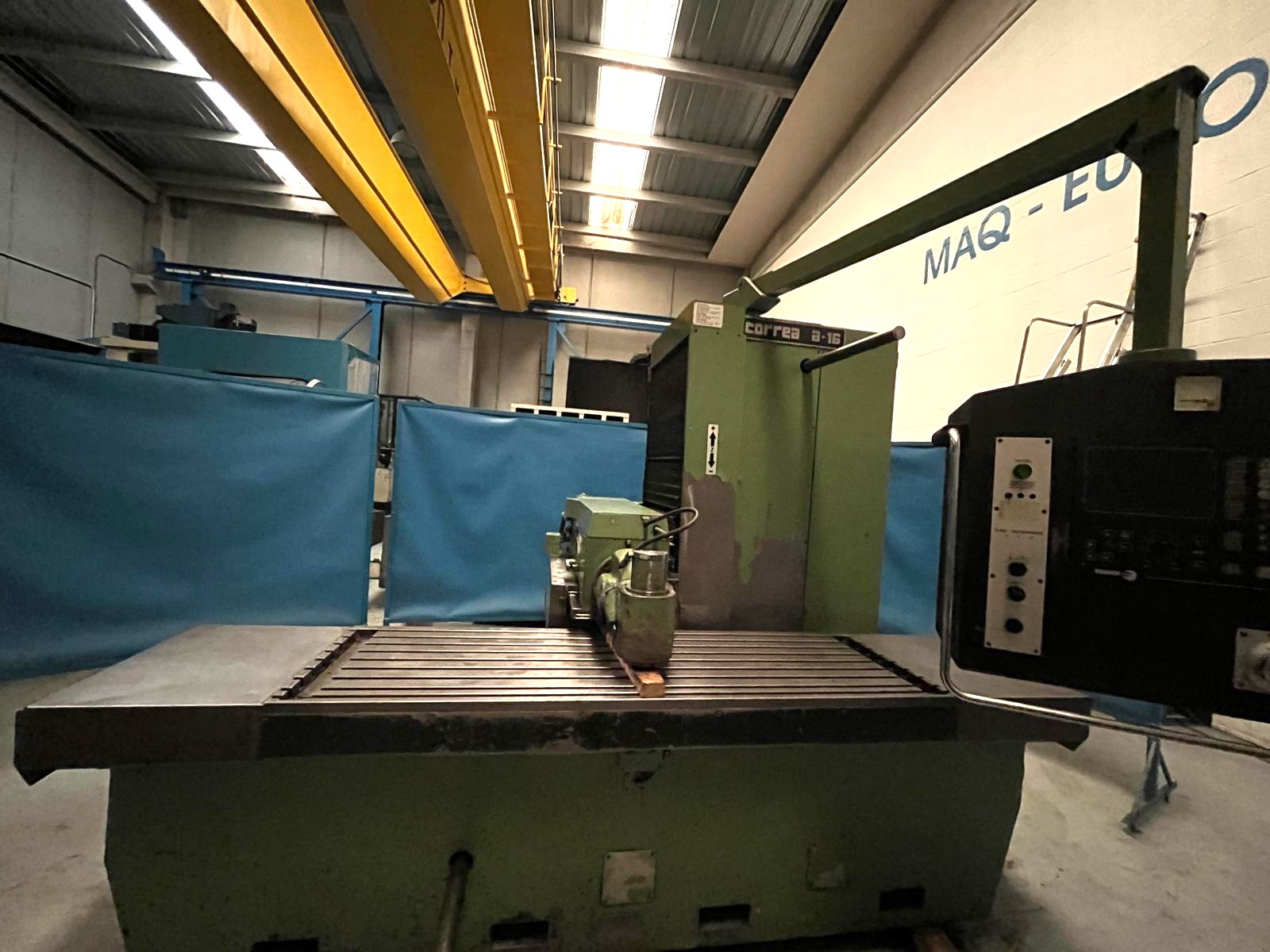

Second-hand Correa A16 milling machine for sale. Belonging to the Correa A series (Bed type milling machines), it has been inspected by our team and is in excellent condition in our warehouse in Zaragoza.

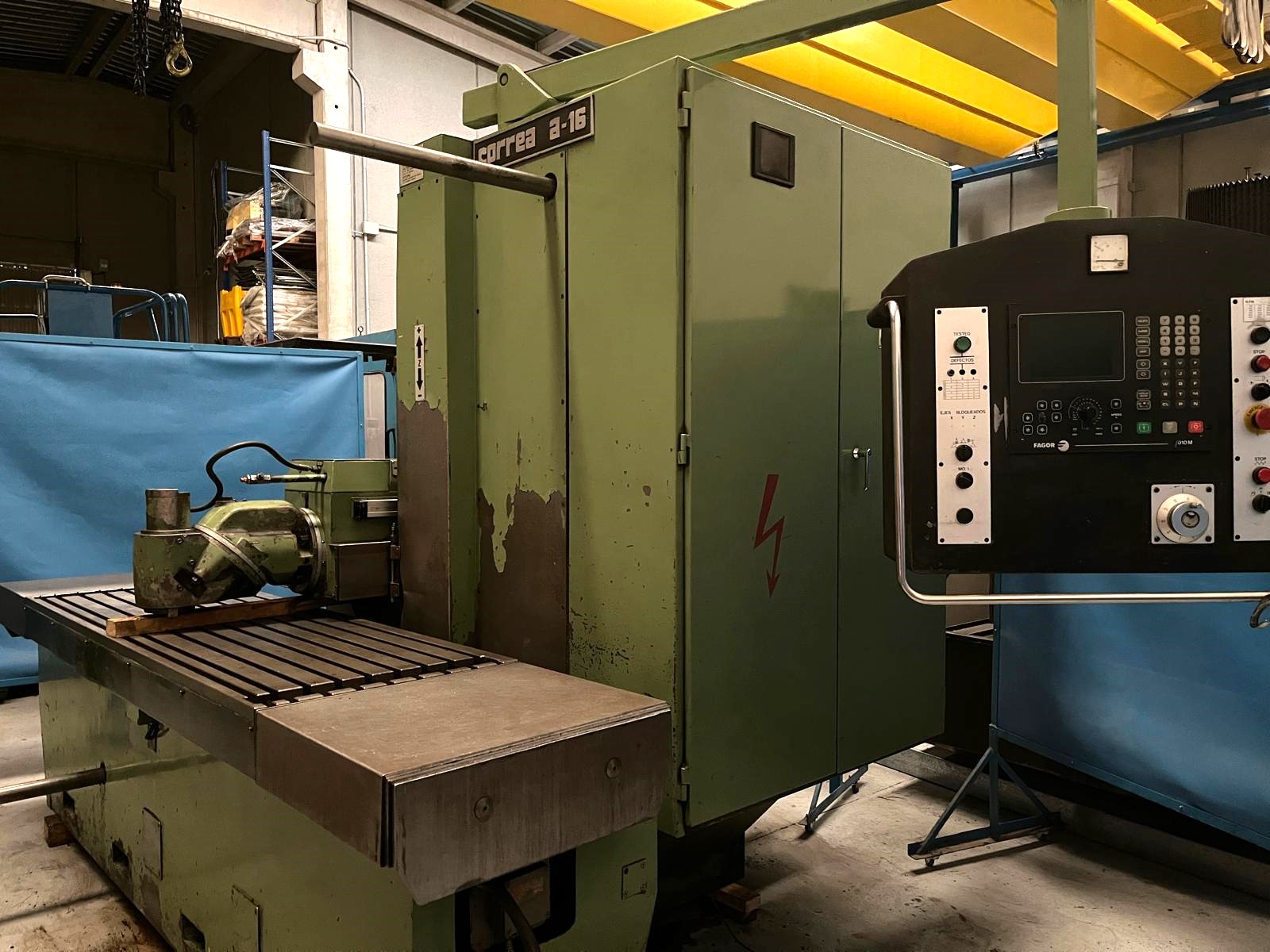

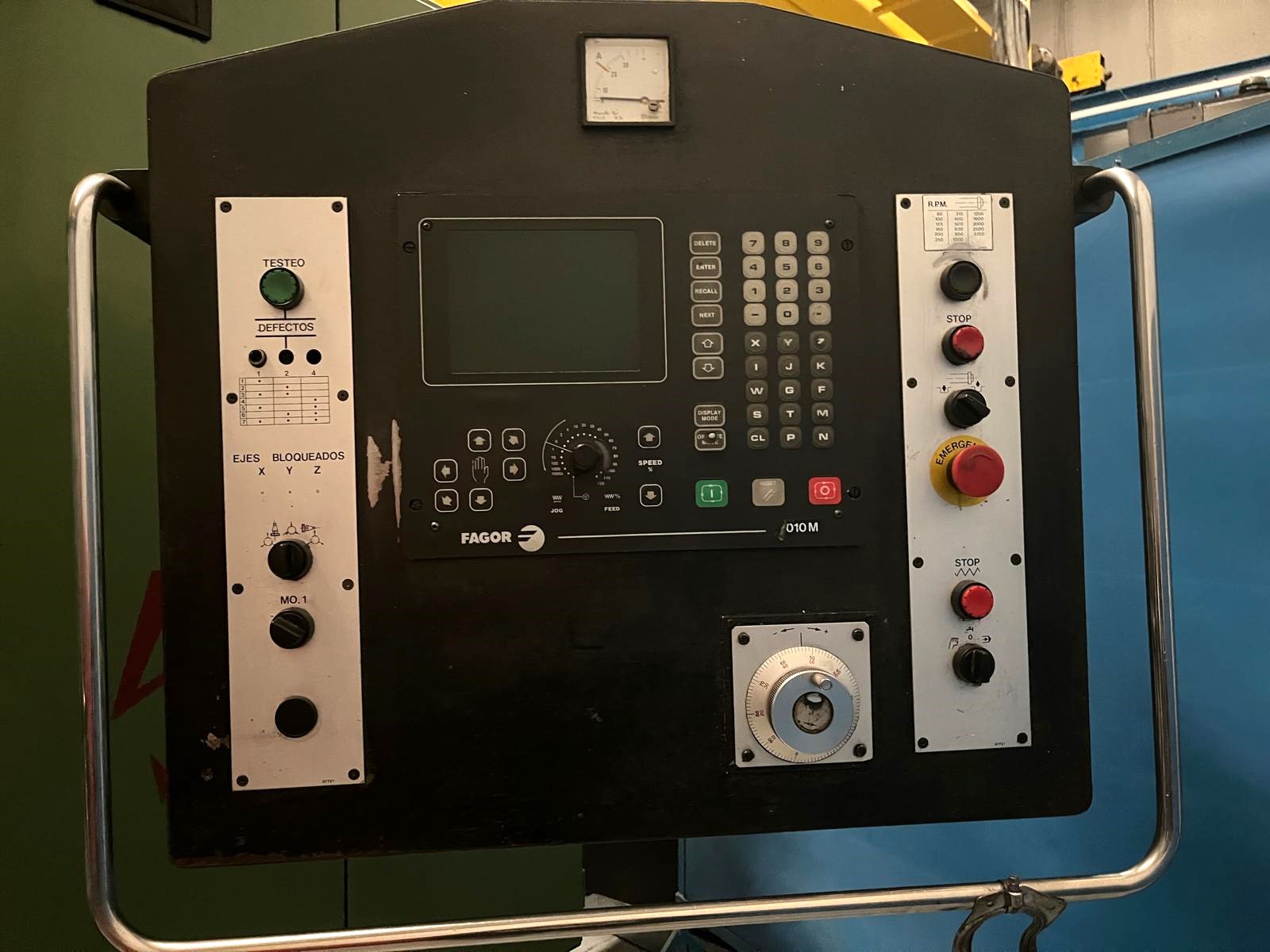

It is equipped with a full guarding. The pendant CNC control can be positioned to work from both the front and rear of the machine thus providing proper control of machine operation.

If you want more information, dont think twice and contact us. Whether you just want to know the price of this Correa A16 Milling Machine, or if you prefer more information or come see the machine, we will help you.

Call +34 976 682 331, or send us an email to: info@maq-euro.com

Milling machines - Bed type milling machines

Ref 1001076

  • CNC: FAGOR 8010M
  • Table Size: 2000mm x 630mm
  • Max weight on table: 3000 kilos
  • X axis travel: 1800mm
  • Y axis travel: 800mm
  • Z axis travel: 800mm

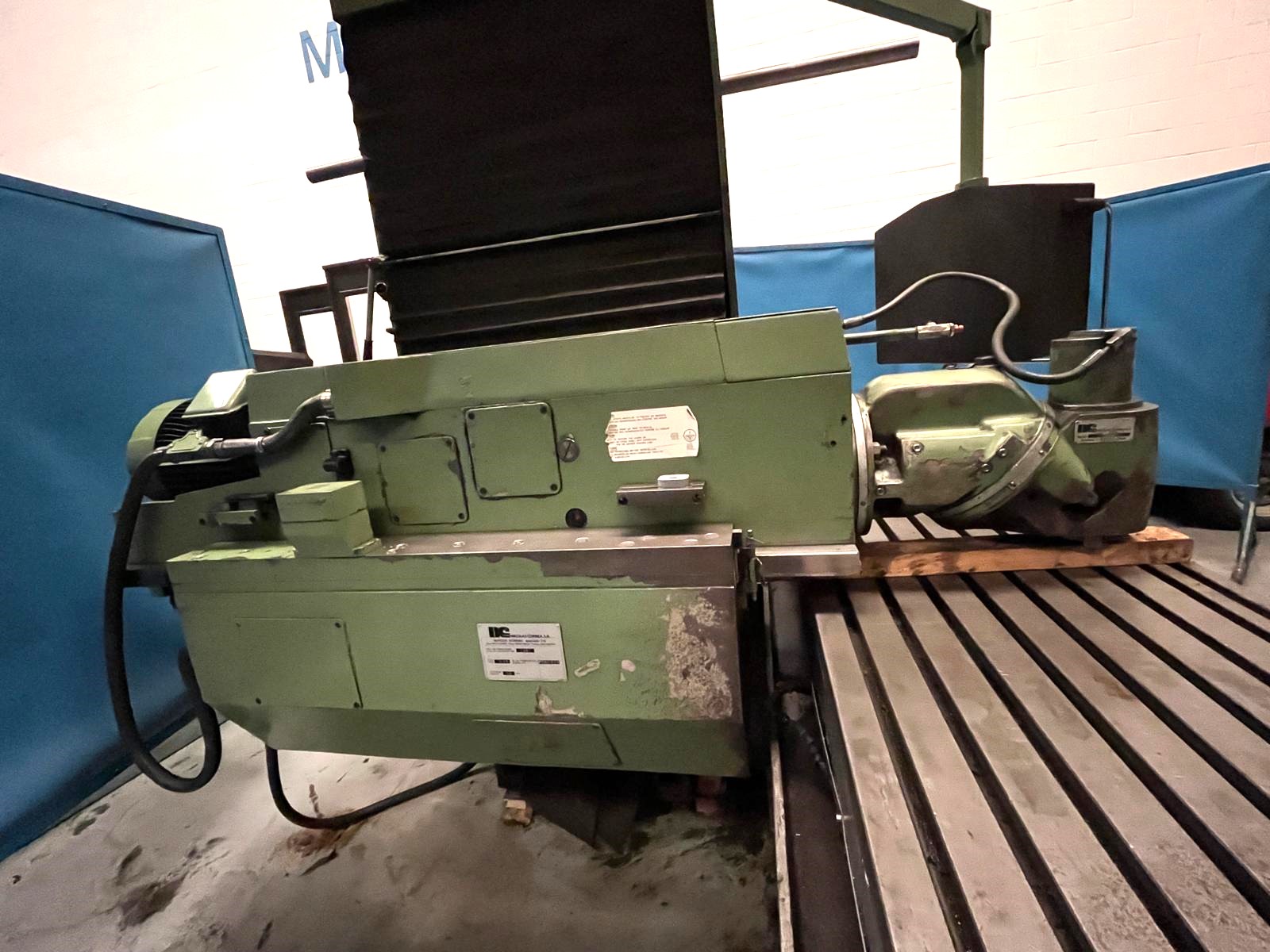

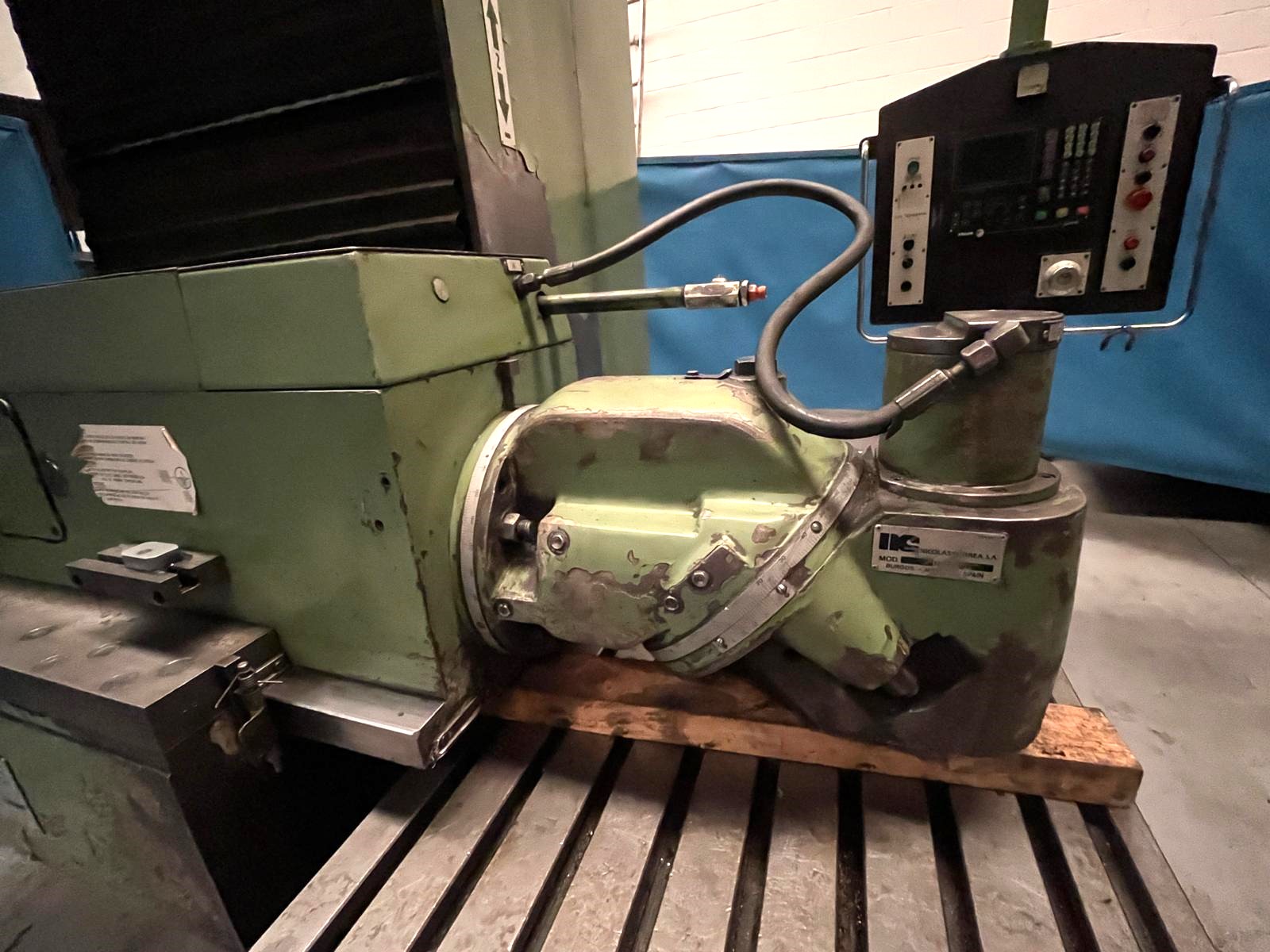

  • Head swivels: manual 360º x 2
  • Tool Taper: ISO 50
  • Speeds: INF. VARIABLE 25-3250 R.P.M.
  • Feeds: 5000MM/MIN
  • Electronic Handwheel: SI / YES / OUI / JA
  • Number of T slots: 8 x 71mm
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Equipped with: Volante Electronico, video disponible
  • Equipment: Electronic Handwheel, video available
  • Motor: 16 CV/HP
  • Length: 3200mm
  • Width: 2200mm
  • Height: 2500mm
  • Weight: 7500 kilos
