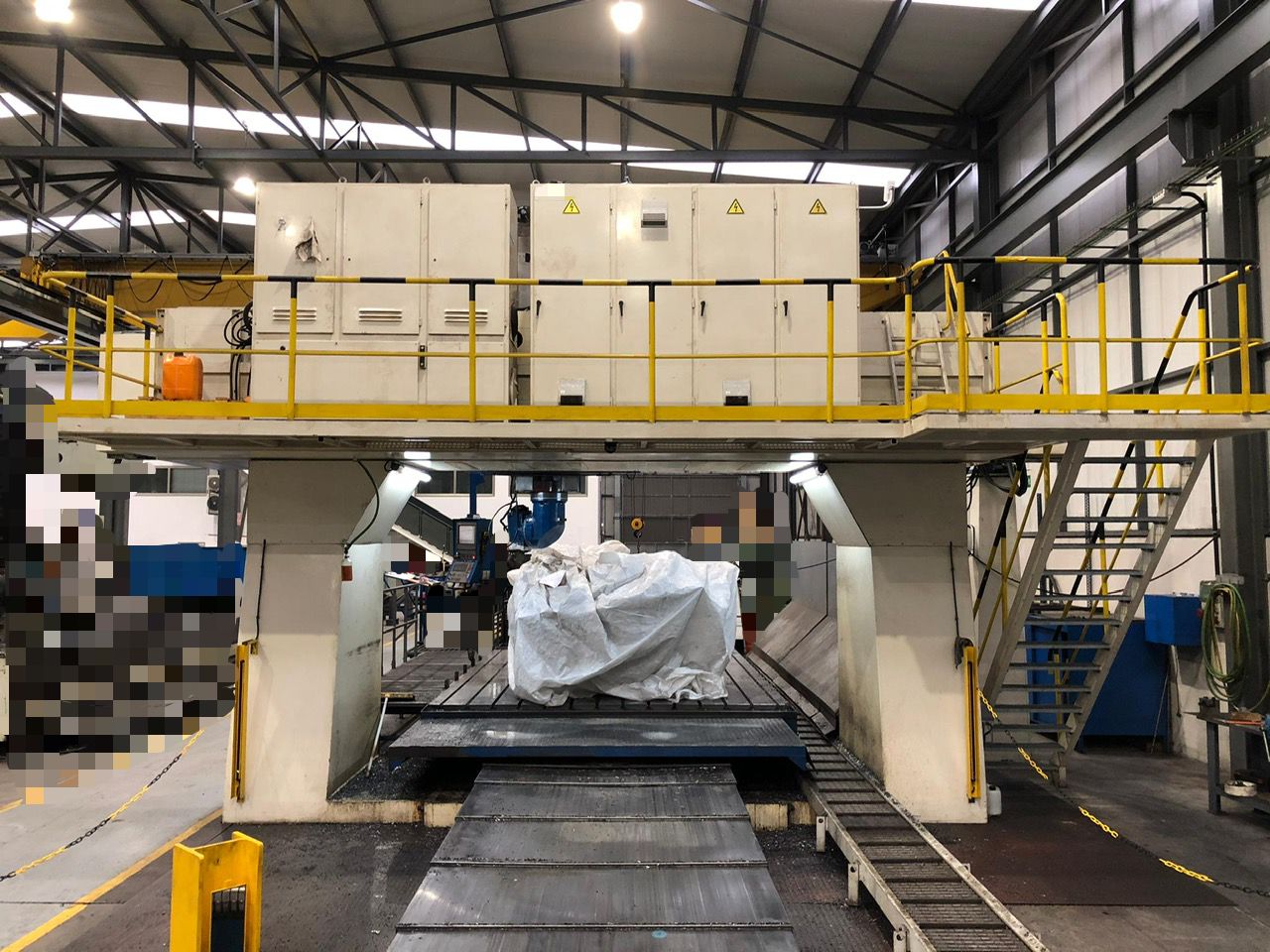

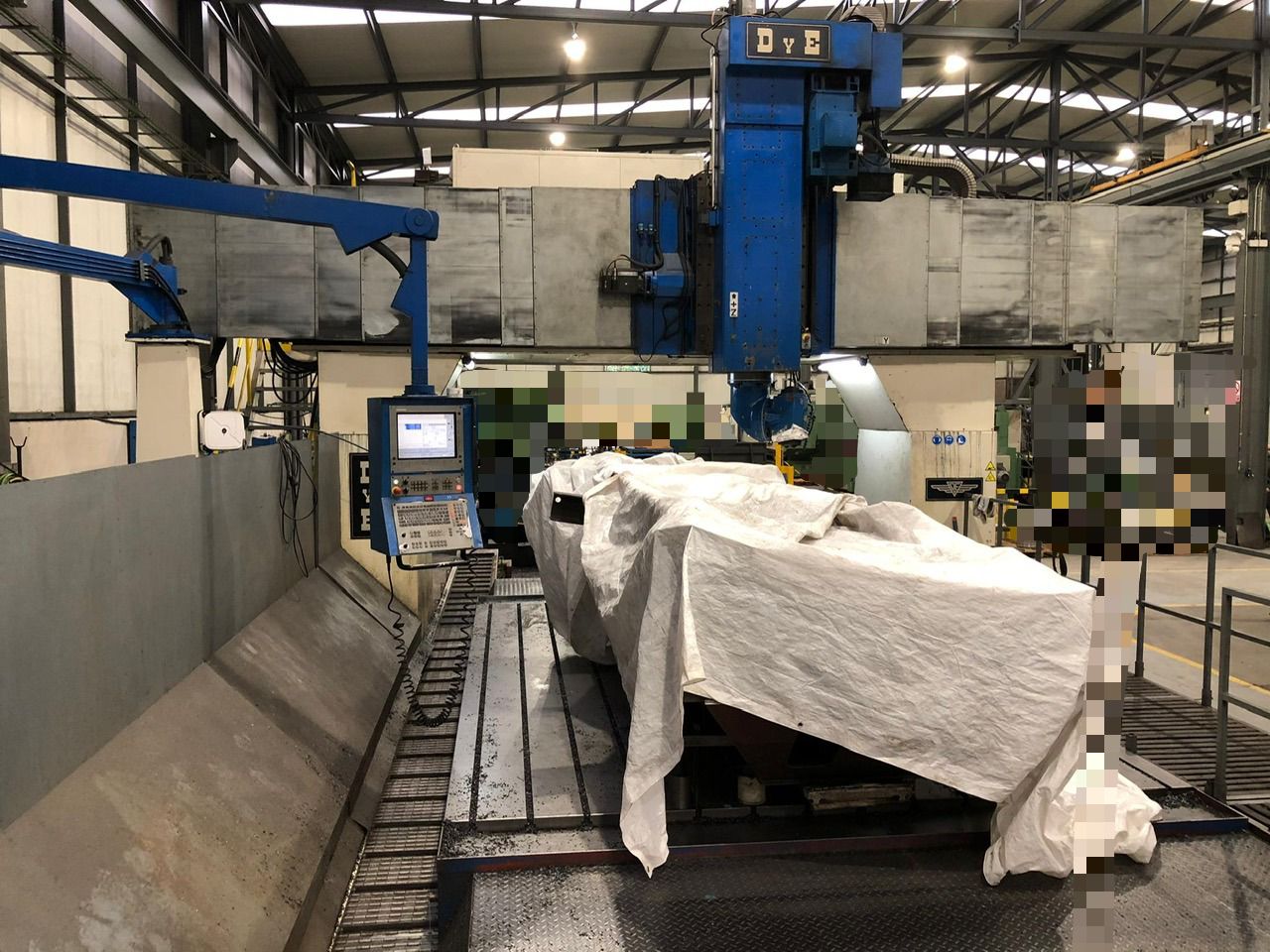

Milling machines - Bridge type/Gantry Milling machines
Milling machines - Bridge type/Gantry Milling machines
Request Information
Ref
1001063
Year:
Retrof.2010

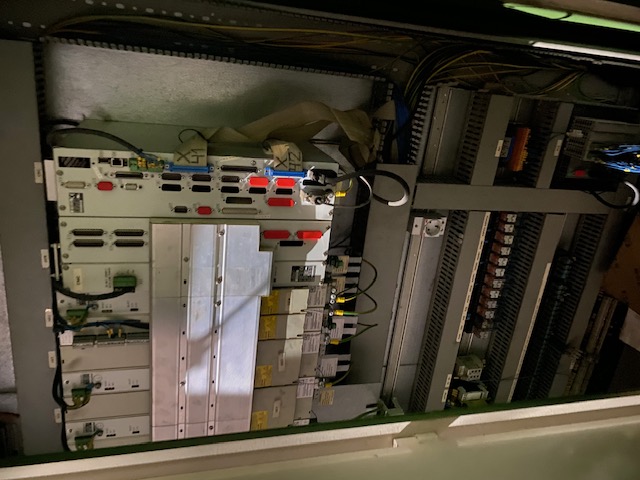

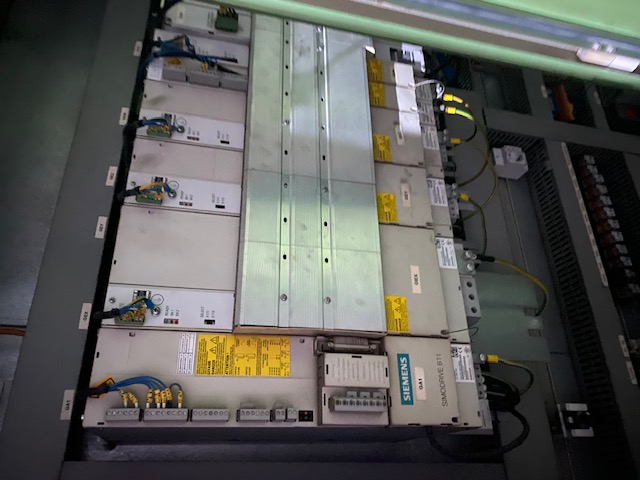

CNC:
Heindenhain i TNC 530
Table Size:
5000 x 3500 mm
X axis travel:
5000 mm
Y axis travel:
4100 mm
Z axis travel:
1700 mm
Between columns:
4550mm
Height Under cross slide:
2200mm
Max weight on table:
30 Tn.
Tool Taper:
ISO 50
Speeds:
0 - 2000 r.p.m.
Hydraulic tool locking:
YES
Feeds:
10000mm/min
Number of heads:
1 manual universal head.
Electronic Handwheel:
YES
Swarf conveyor:
YES
Number of T slots:
14
Equipped with:
W axis (spindle) 500mm
Motor:
52KW
Length:
14030mm
Width:
9200mm
Height:
7200mm
Weight:
85 tons aprox.
