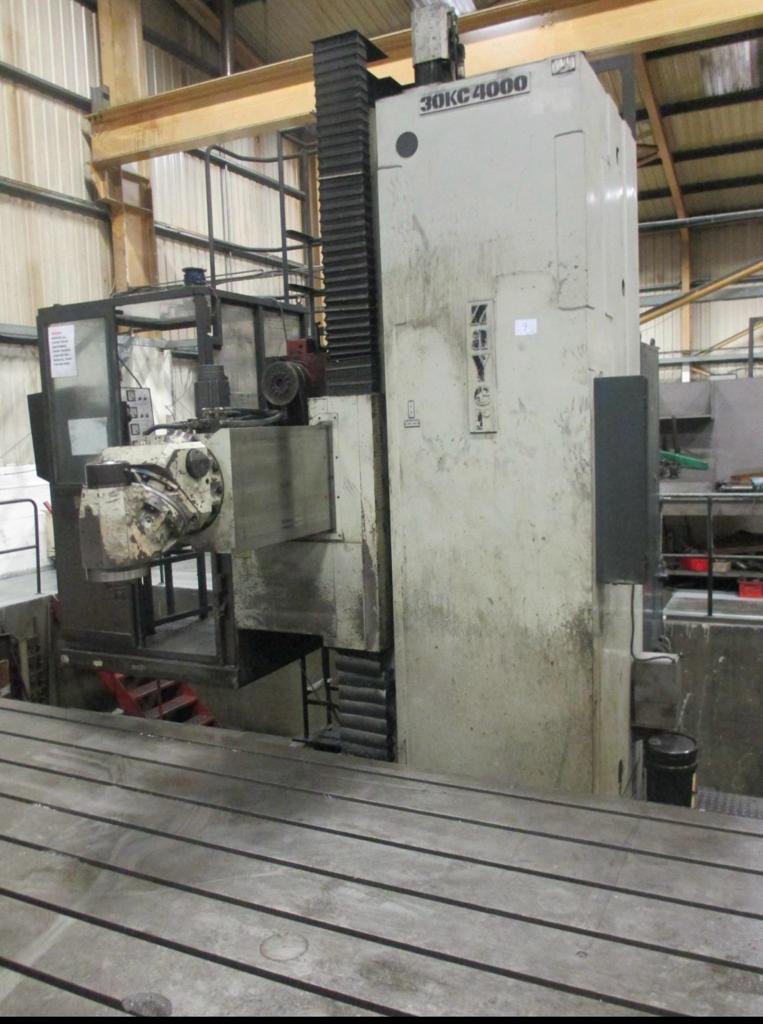

ZAYER 30KC 4000

  • Milling machines - Travelling column milling machines
ZAYER 30KC 4000
ZAYER 30KC 4000
ZAYER 30KC 4000
ZAYER 30KC 4000
ZAYER 30KC 4000

Milling machines - Travelling column milling machines

Ref 1001058

  • Year: 1997

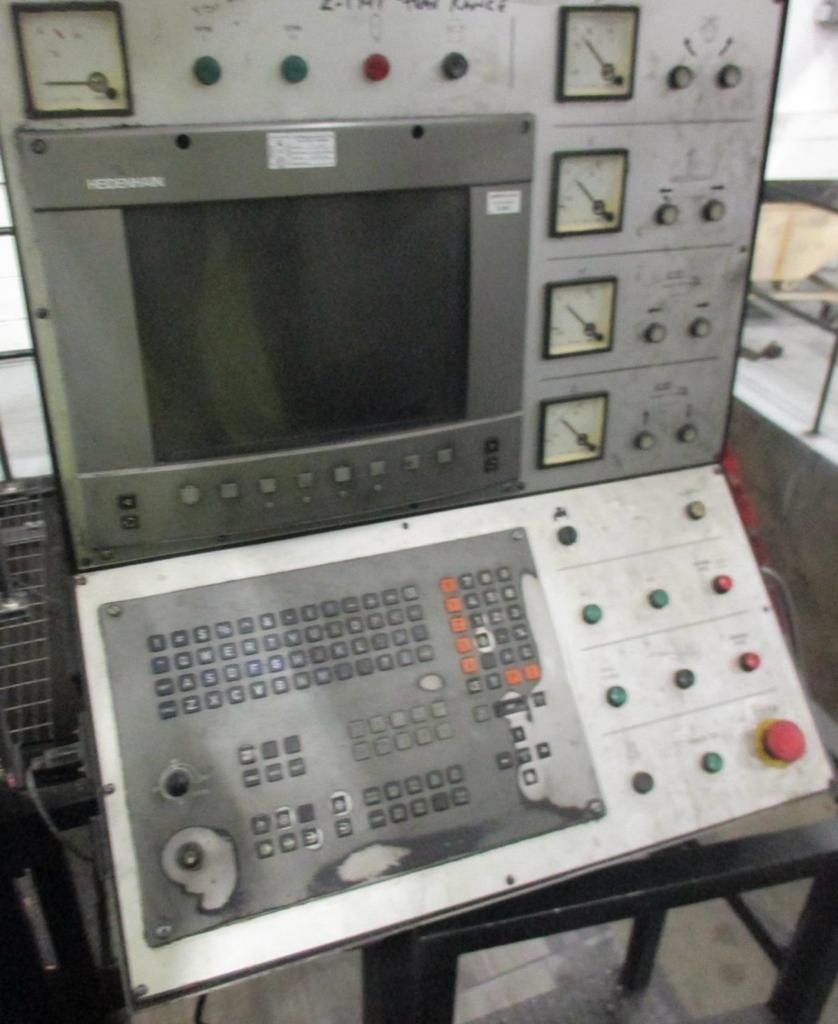

  • CNC: Heidenhain 426
  • Table Size: 5000mm x 3000mm Mesa Stoller / Floor plates (2 x 5000mm x 1500mm)
  • Number of T slots: 12
  • X axis travel: 4000mm
  • Y axis travel: 1250mm
  • Z axis travel: 2000mm (Vertical)
  • Tool Taper: ISO 50
  • Pull Stud: ISO 7388-2B50
  • Speeds: 3000 r.p.m
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Equipped with: Cabezal Automatico CNC de (A) 2.5 grados y (B) 180 grados. Refriger. a traves de la herramienta.
  • Equipment: Automatic CNC Head is: (A) 2.5º and (B) 180º. Through tool coolant.
  • Electronic Handwheel: volante HR410
  • Motor: 37 KW
  • Weight: 37540 kilos
