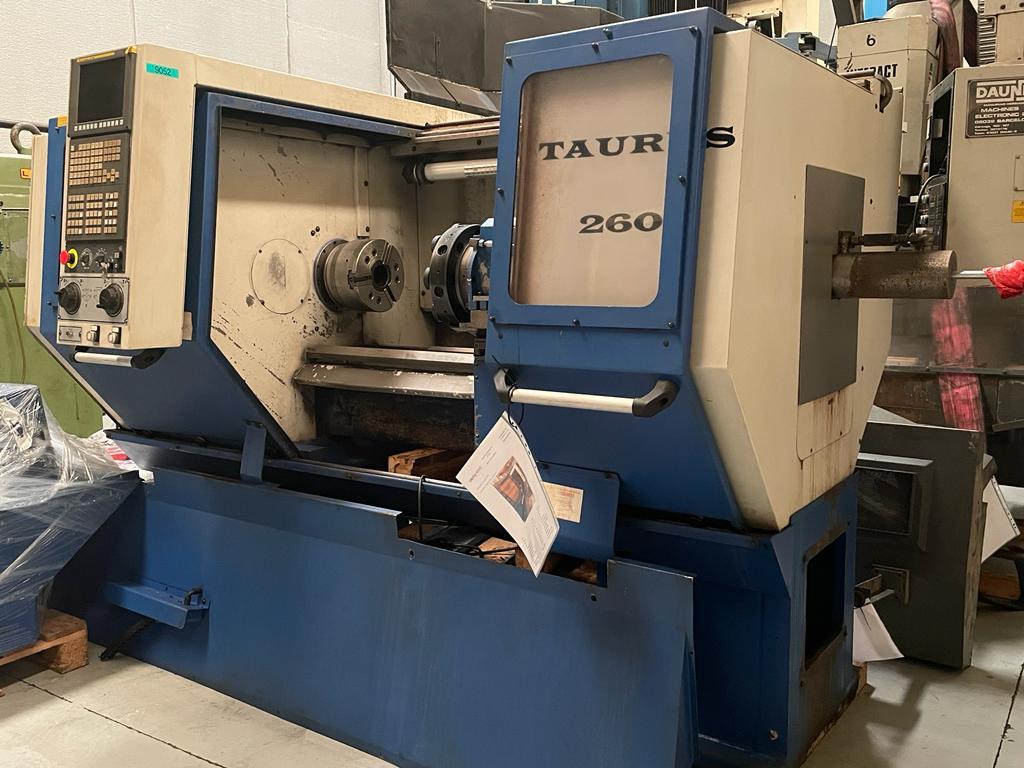

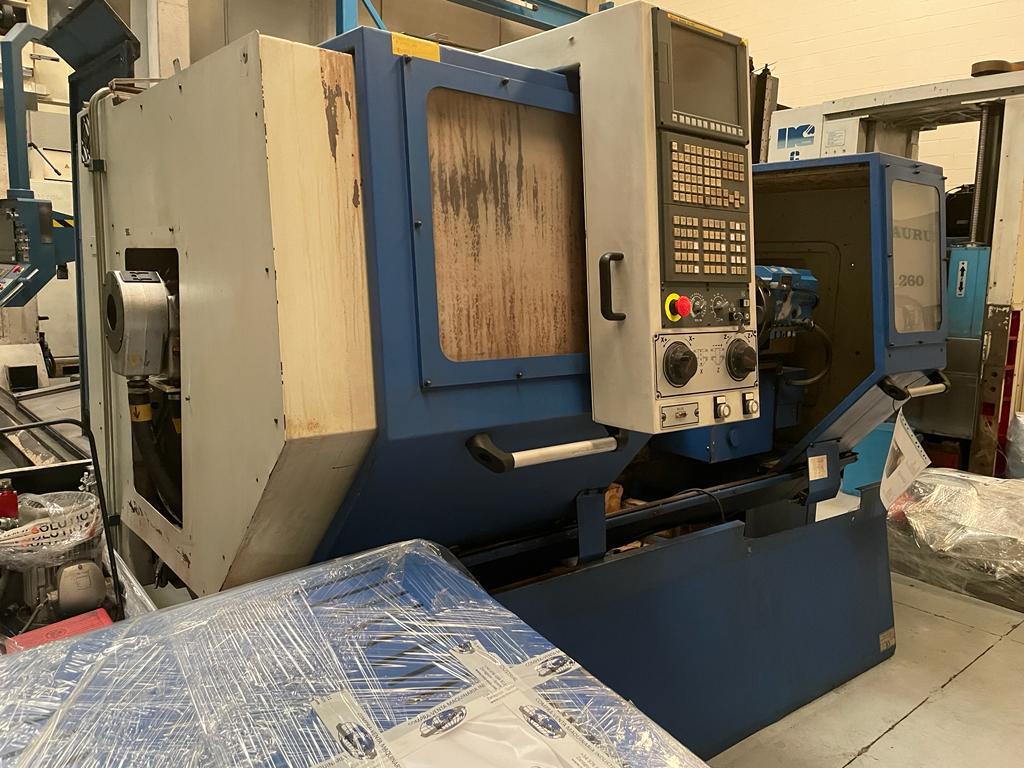

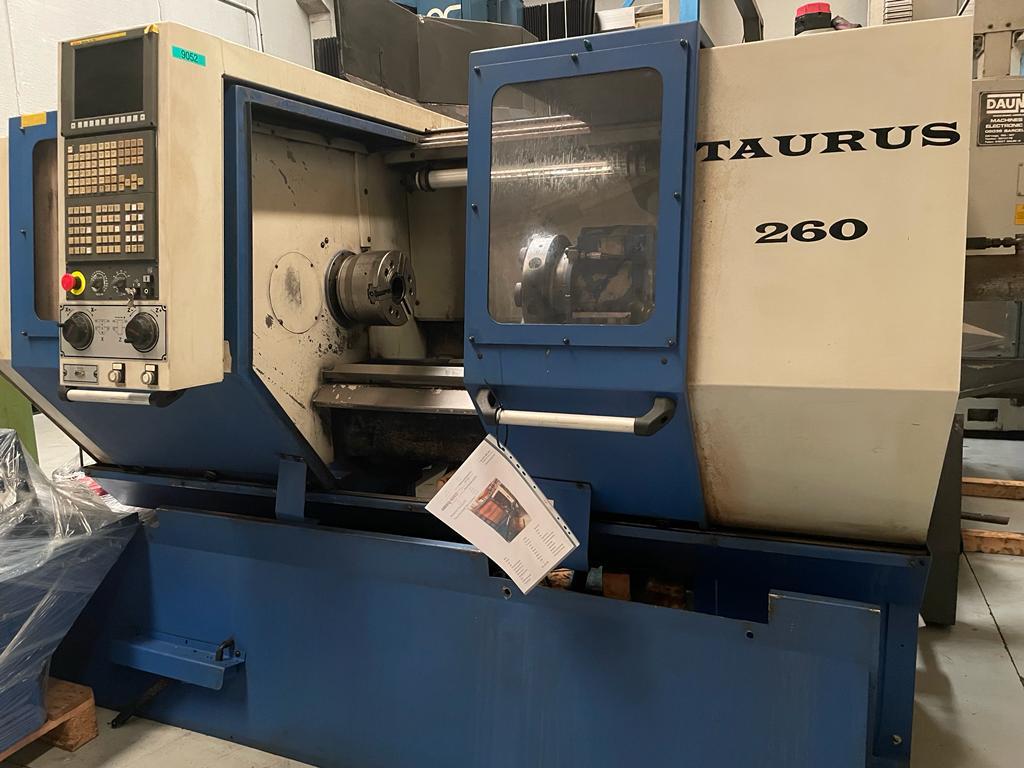

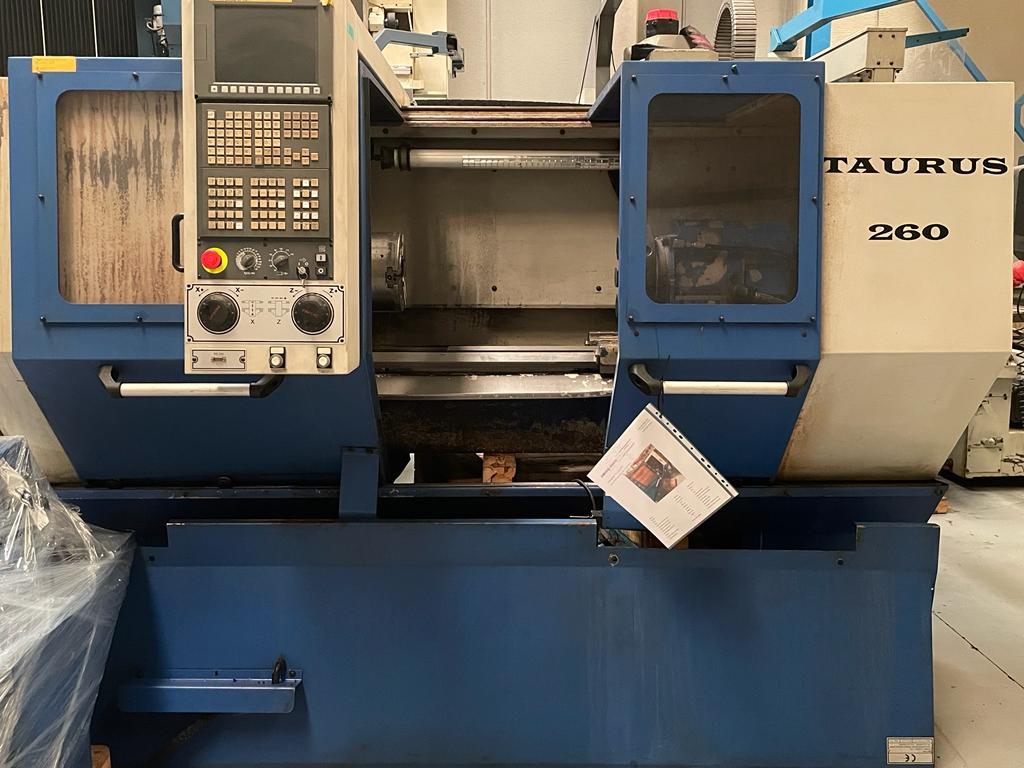

Lathes - CNC centre lathes

Ref 1001042

  • Year: 2010
  • CNC: Fanuc 0i-TC
  • Swing Over Bed: 530mm
  • Distance between centres: 1000mm
  • Swing Over Cross Slide: 475mm
  • Centre height: 260mm
  • Spindle Speeds: 2500 r.p.m.
  • Spindle Bore: 80mm
  • number of guides and type: 2

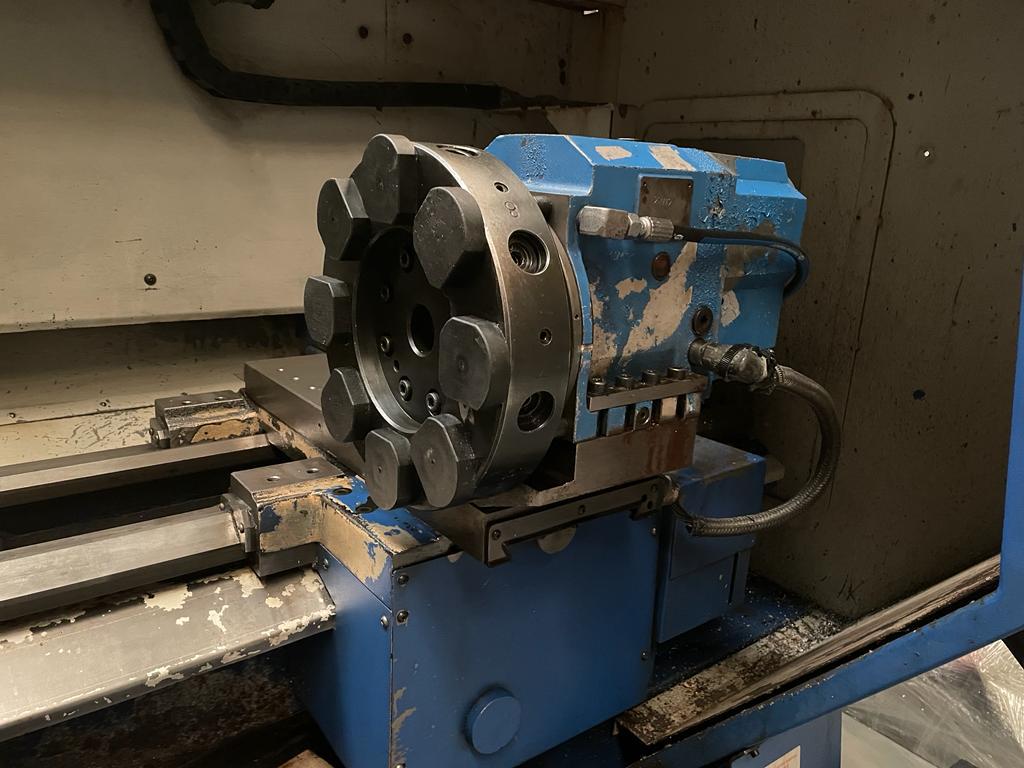

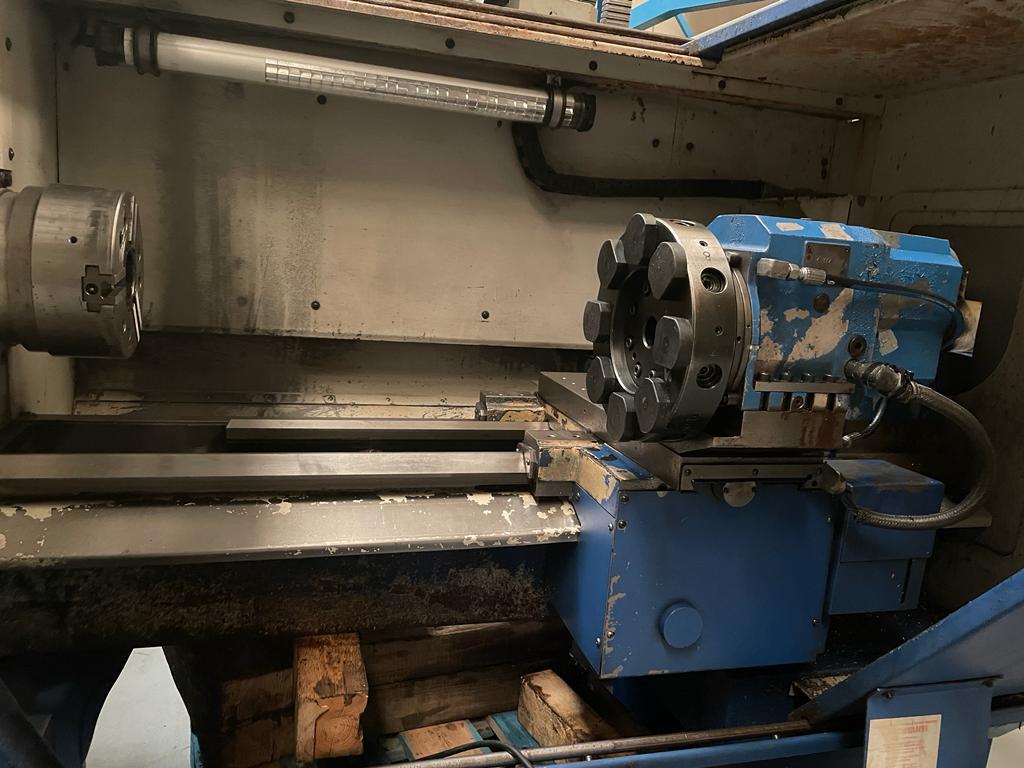

  • Standard Turret / tool post: 8 pos.- CNC VDI30
  • Feeds: 10m/Min
  • Bed width: 350mm

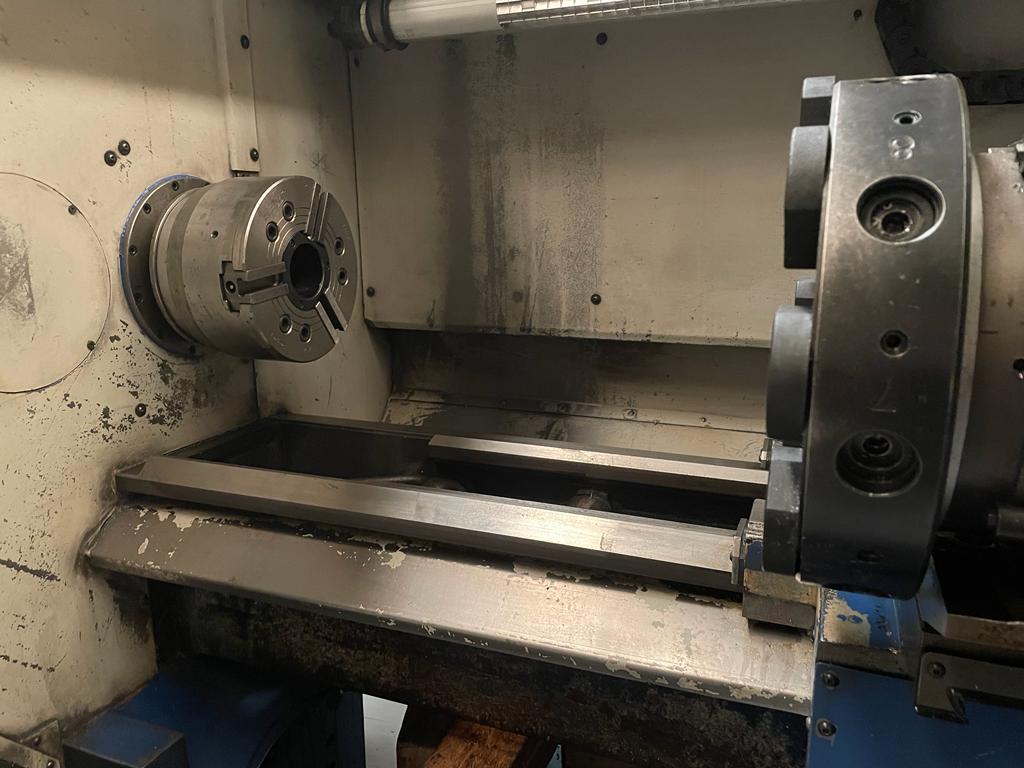

  • 3 jaw chuck: Dia. 250mm - Hidr. / Hydr. (Halder)
  • Equipment: Refrigeración a través de la herramienta, contrapunto hidráulico
  • Motor: 11KW
  • Length: 3100
  • Width: 1720mm
  • Height: 1850mm
  • Weight: 2700 kilos
