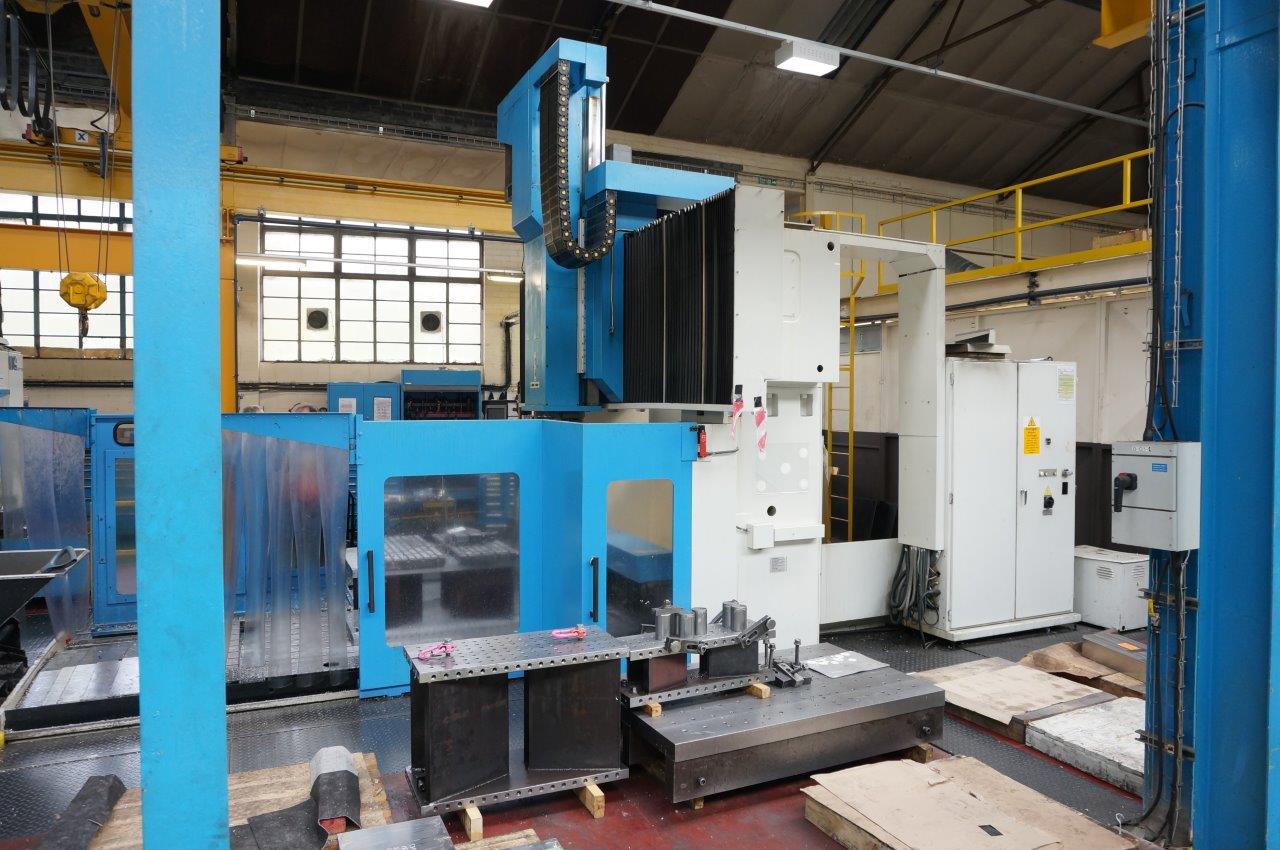

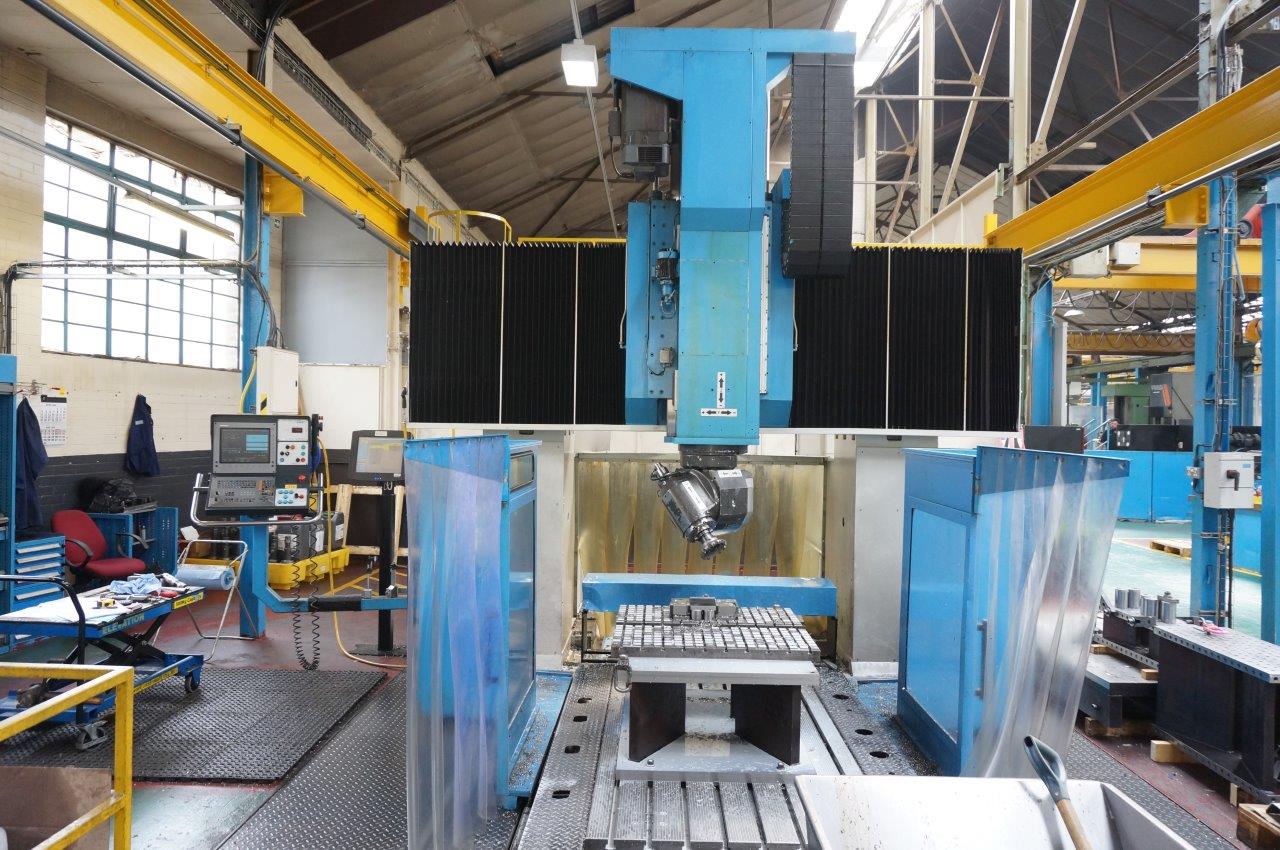

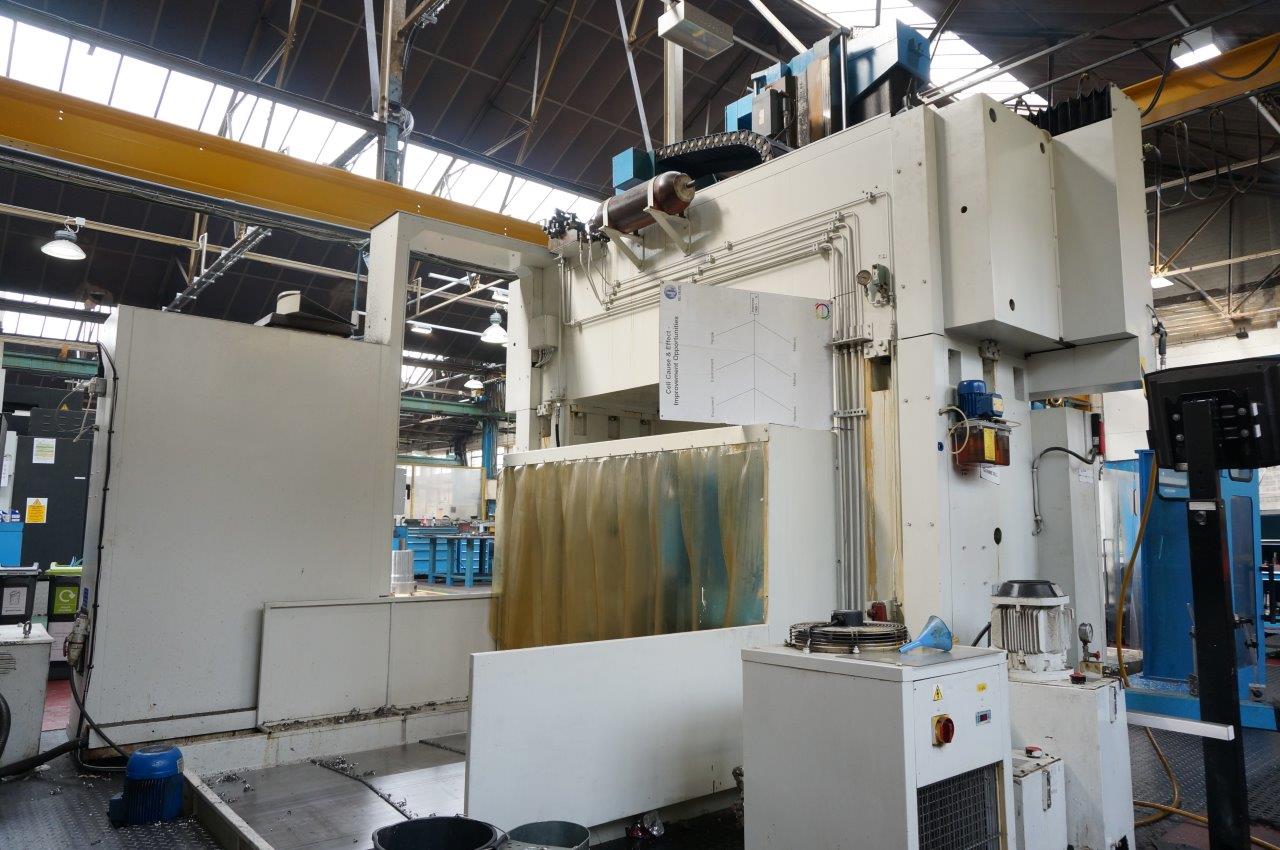

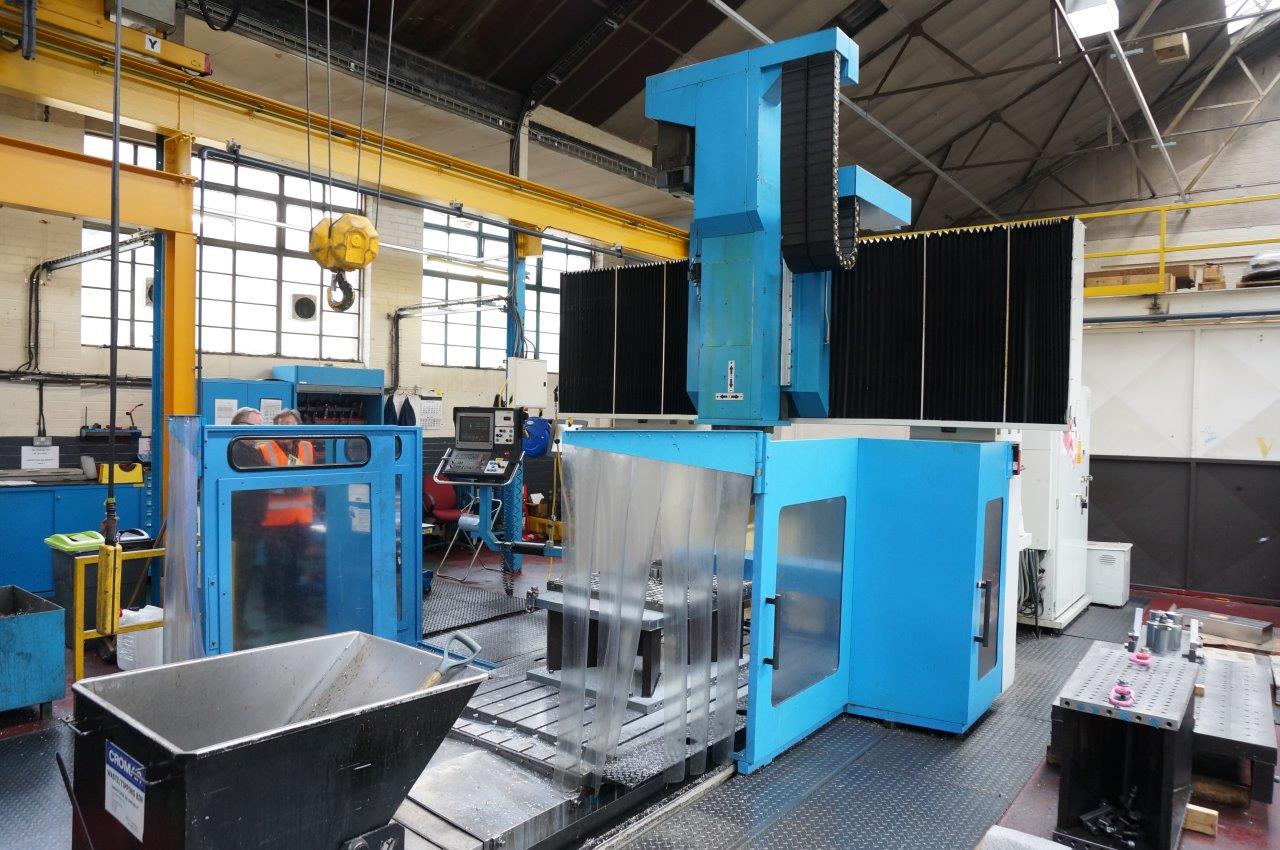

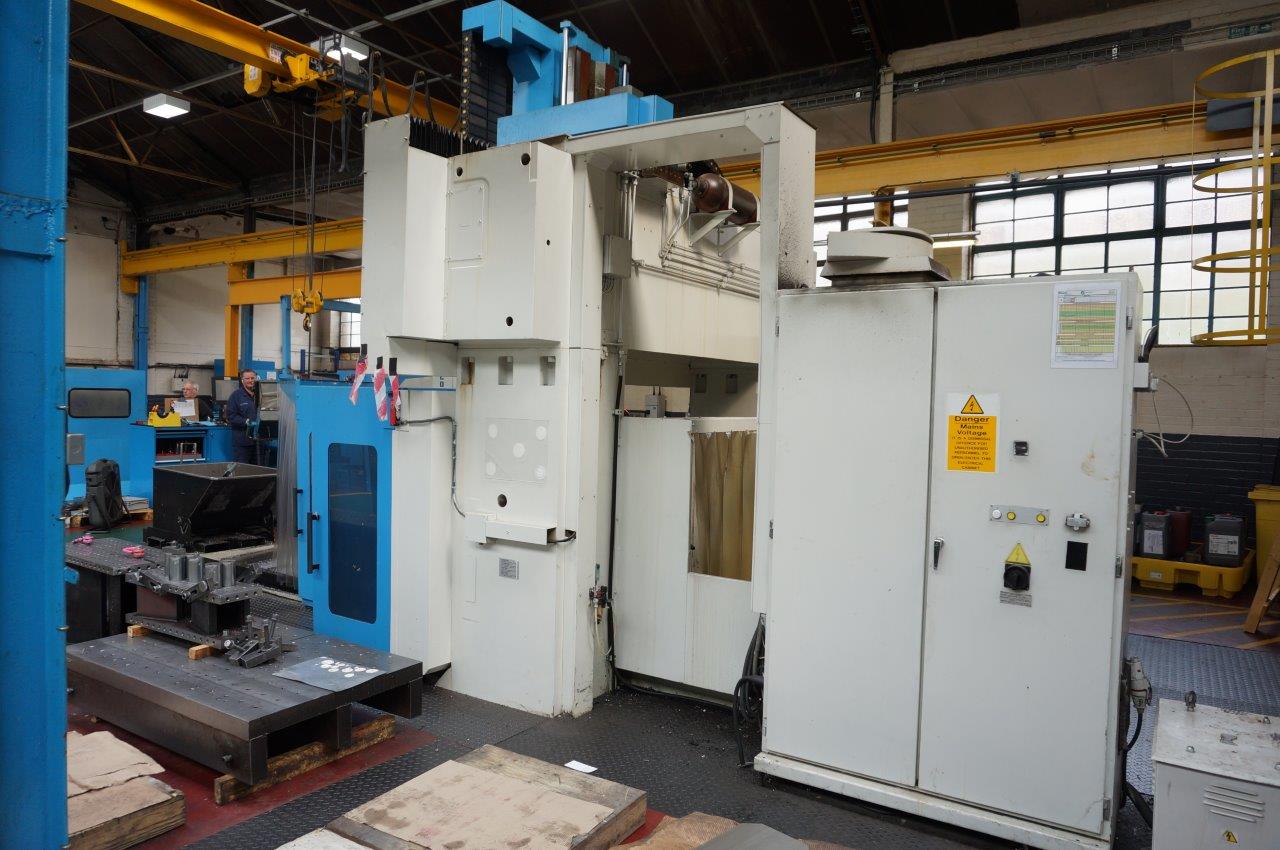

Milling machines - Bridge type/Gantry Milling machines

Ref 1001006

  • Year: 1997

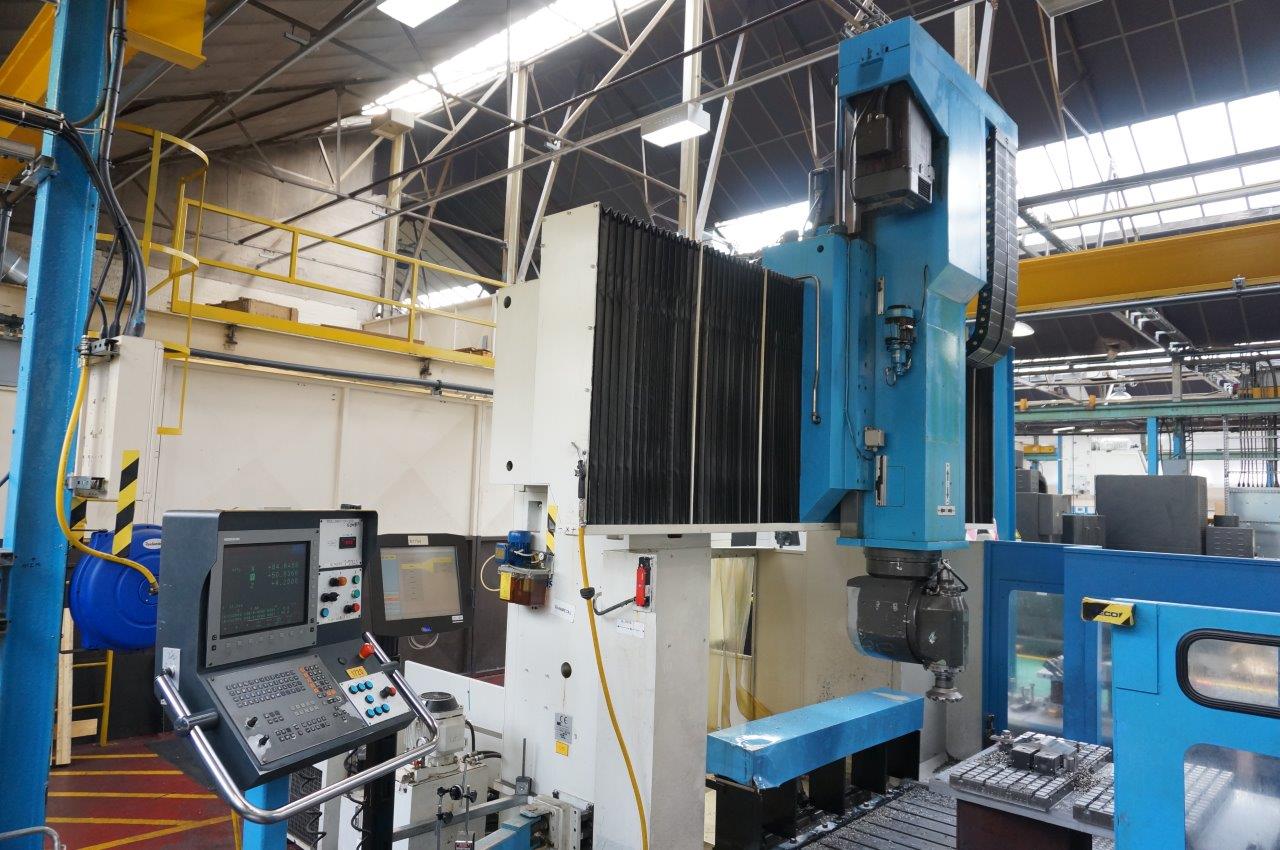

  • CNC: Heidenhain 426
  • Table Size: 3000mm x 1250mm
  • X axis travel: 2500mm
  • Y axis travel: 2500mm
  • Z axis travel: 1000mm
  • Between columns: 2000mm
  • Max weight on table: 10.000 kilos
  • ATC: 10
  • Tool Taper: ISO 50
  • Pull Stud: DIN 69871 A
  • Speeds: 50- 2.000 r.p.m.
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Feeds: 15m/min
  • Auto head orientation: SI / YES / OUI / JA
  • Number of heads: 1

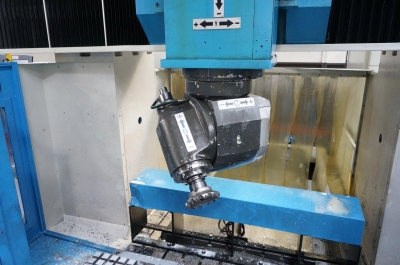

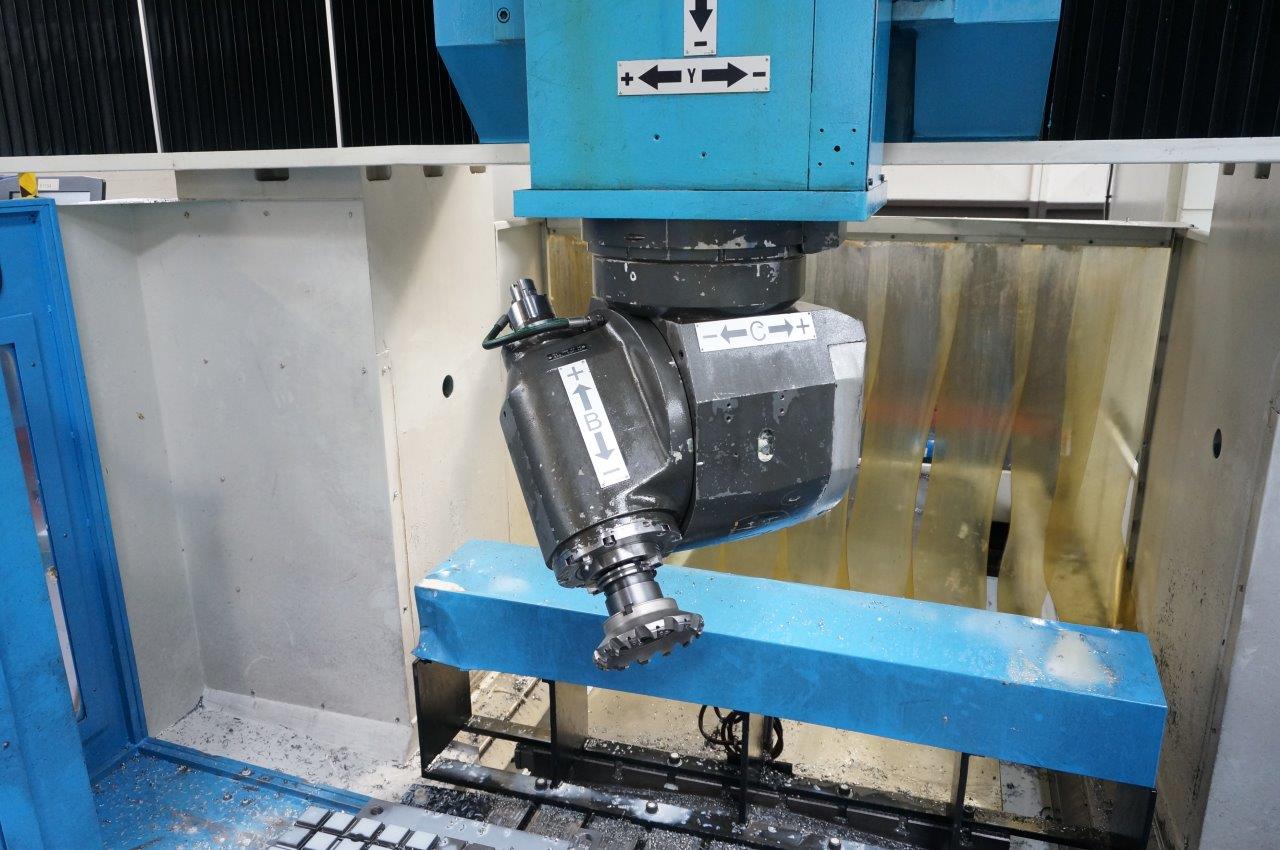

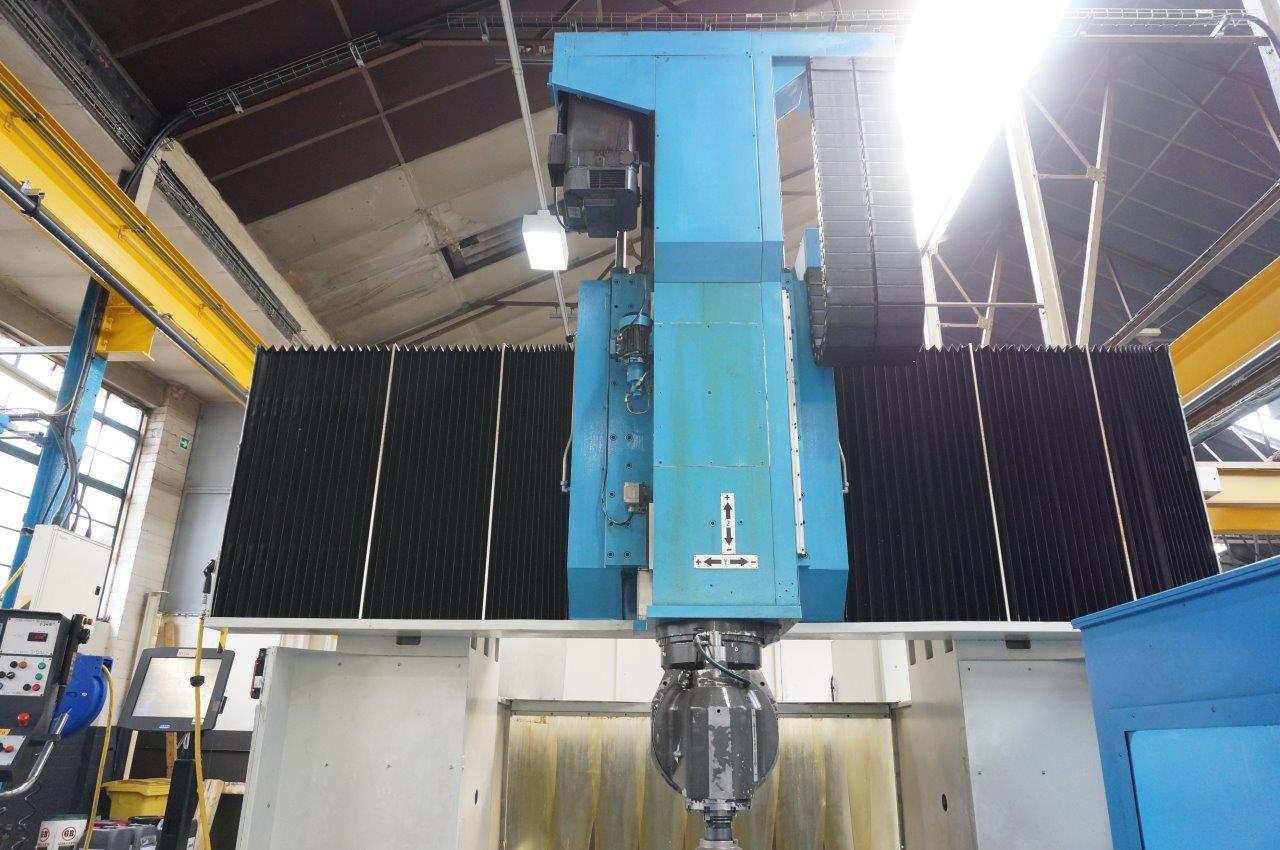

  • CNC Head : Ortogonal UDG-40 2.5º x 2.5º
  • Through tool coolant: SI / YES / OUI / JA 15 BARES
  • Electronic Handwheel: HR-410
  • Equipment: Potencia Total 44KW
  • Motor: 30 KW
  • Weight: 24.000 kilos
