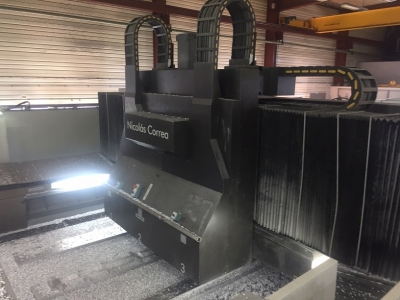

Milling machines - Bridge type/Gantry Milling machines

Ref 1000976

  • Year: 2005
  • CNC: Siemens
  • Table Size: 10000mm x 3000mm
  • X axis travel: 9700mm
  • Y axis travel: 1605mm
  • Z axis travel: 710mm
  • Between columns: 4470mm
  • Max weight on table: 15000 kilos/m2
  • ATC: 3 x 15
  • Tool Taper: HSK 63 A
  • Speeds: 40 - 18000 r.p.m.
  • Hydraulic tool locking: YES / SI / OUI / JA
  • Number of heads: 3
  • Through tool coolant: micro pulverisation
  • Electronic Handwheel: YES / SI / OUI / JA
  • Swarf conveyor: YES / SI / OUI / JA

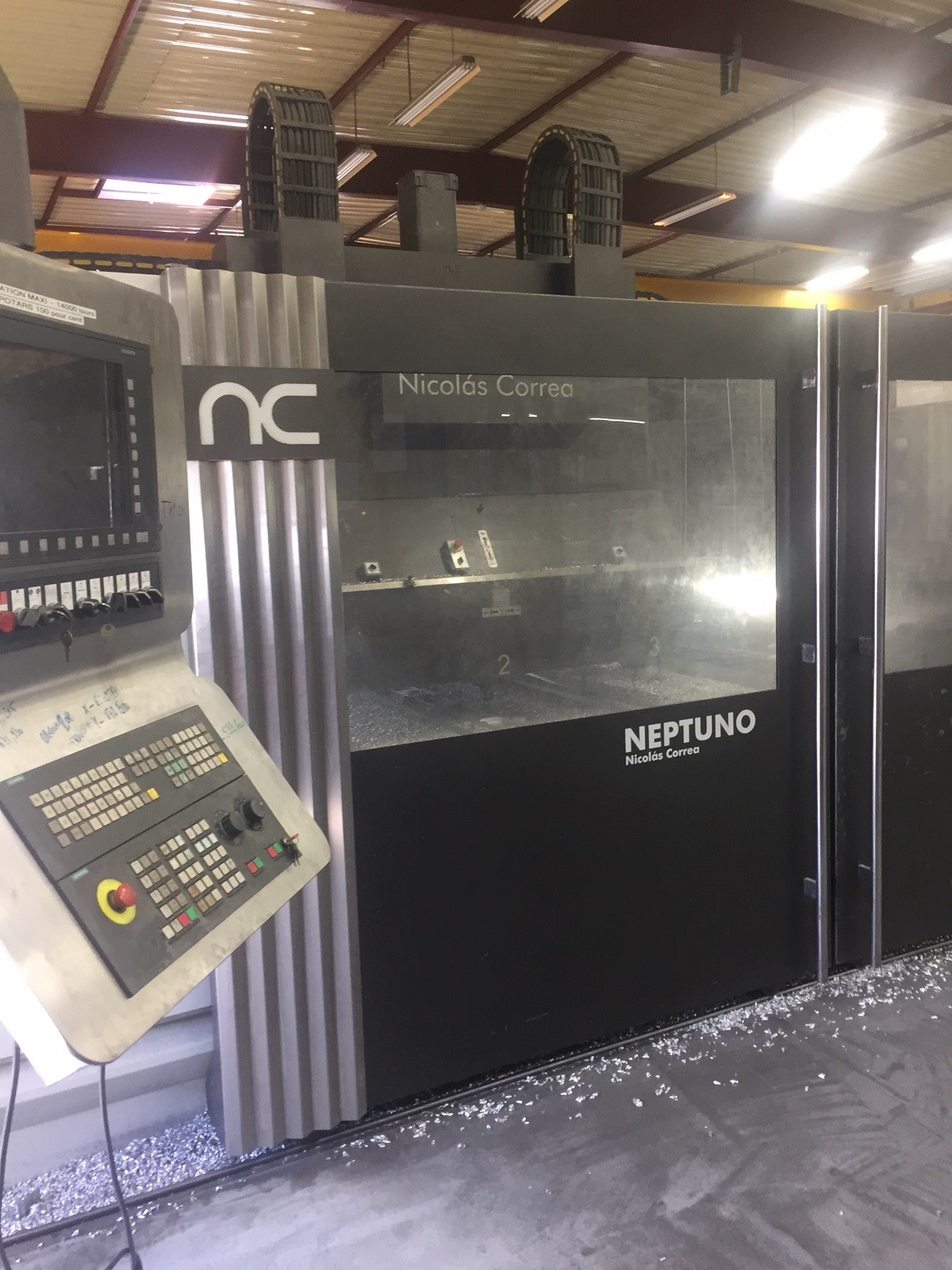

  • Guarding: YES / SI / OUI / JA
  • Number of T slots: 10
  • T slot width: 28mm
  • Distance between T Slots: 250mm
  • Motor: 3 x 35KW
  • Length: 16800mm
  • Weight: 65000 kilos
