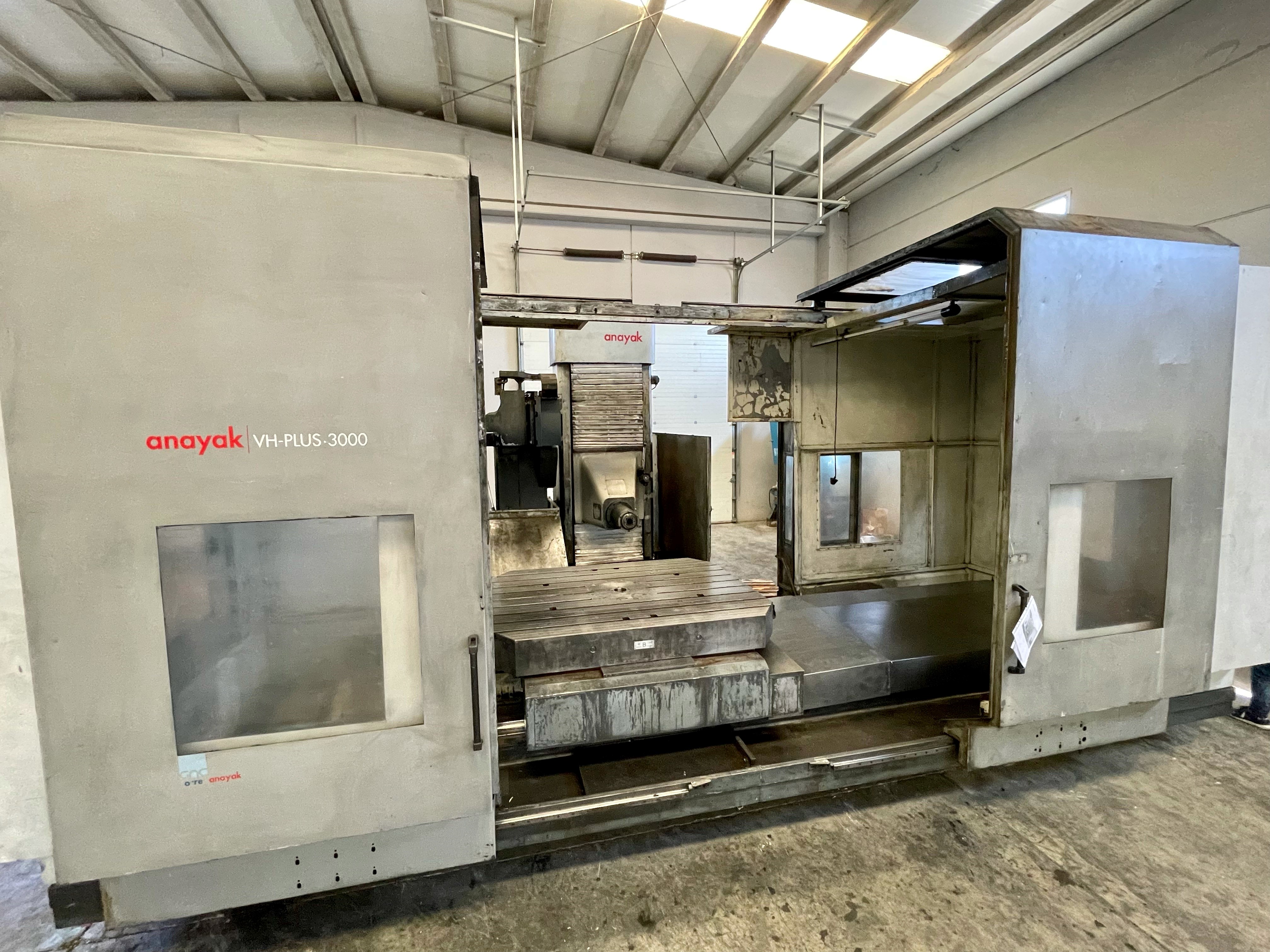

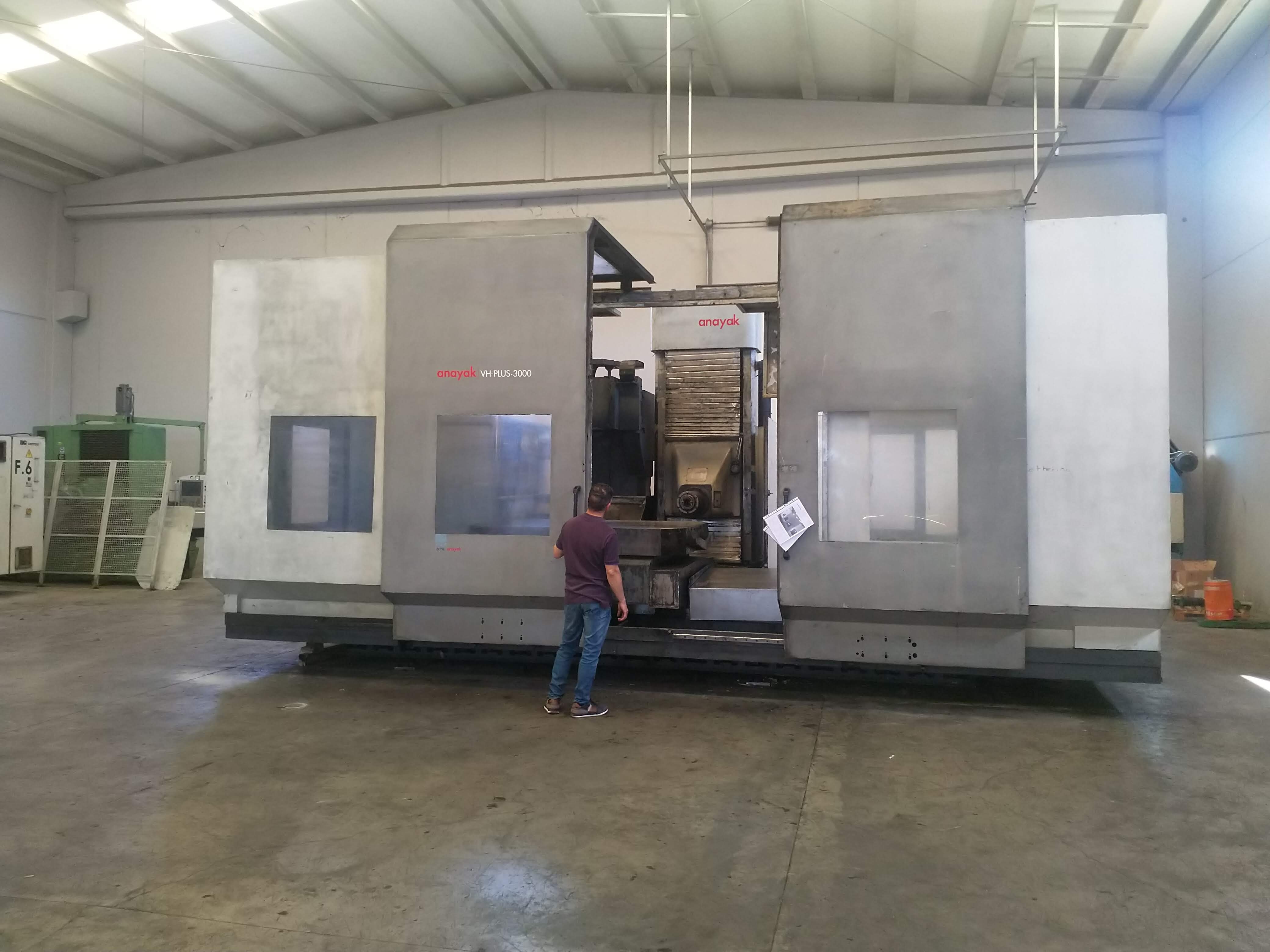

Milling machines - Bed type milling machines

Ref 1000950

  • Year: 2008

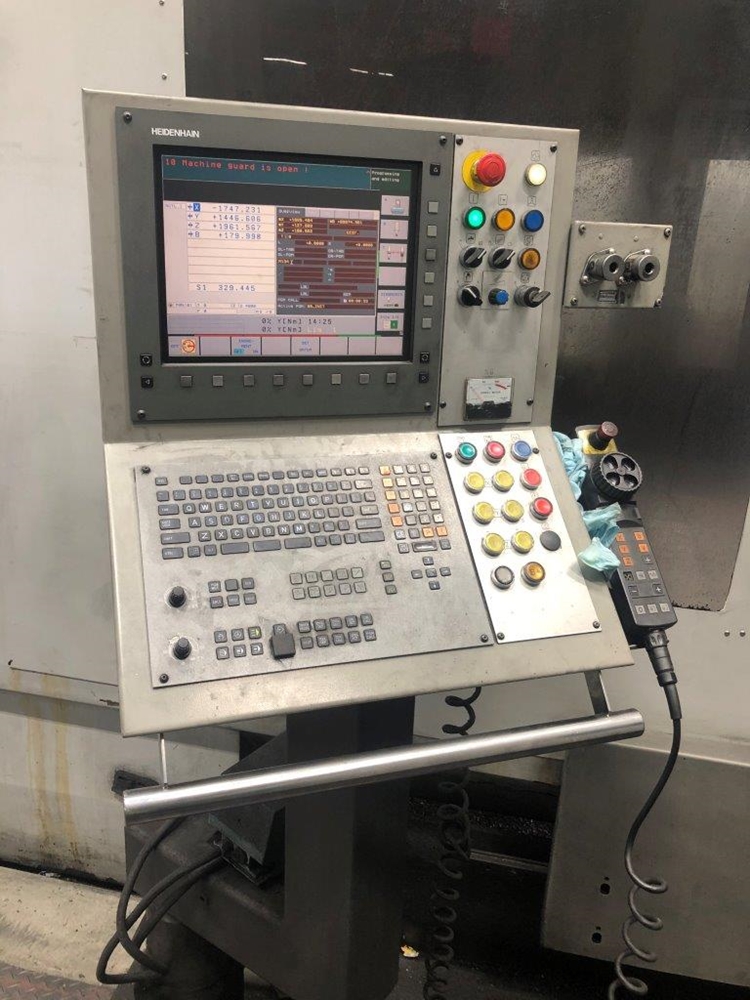

  • CNC: Heidenhain iTNC 530
  • Table Size: 2000mm x 1600mm
  • Max weight on table: 13.000 kilos
  • X axis travel: 3000mm
  • Y axis travel: 1300mm (vertical)
  • Z axis travel: 2000mm (transversal)
  • ATC: 60 ATC

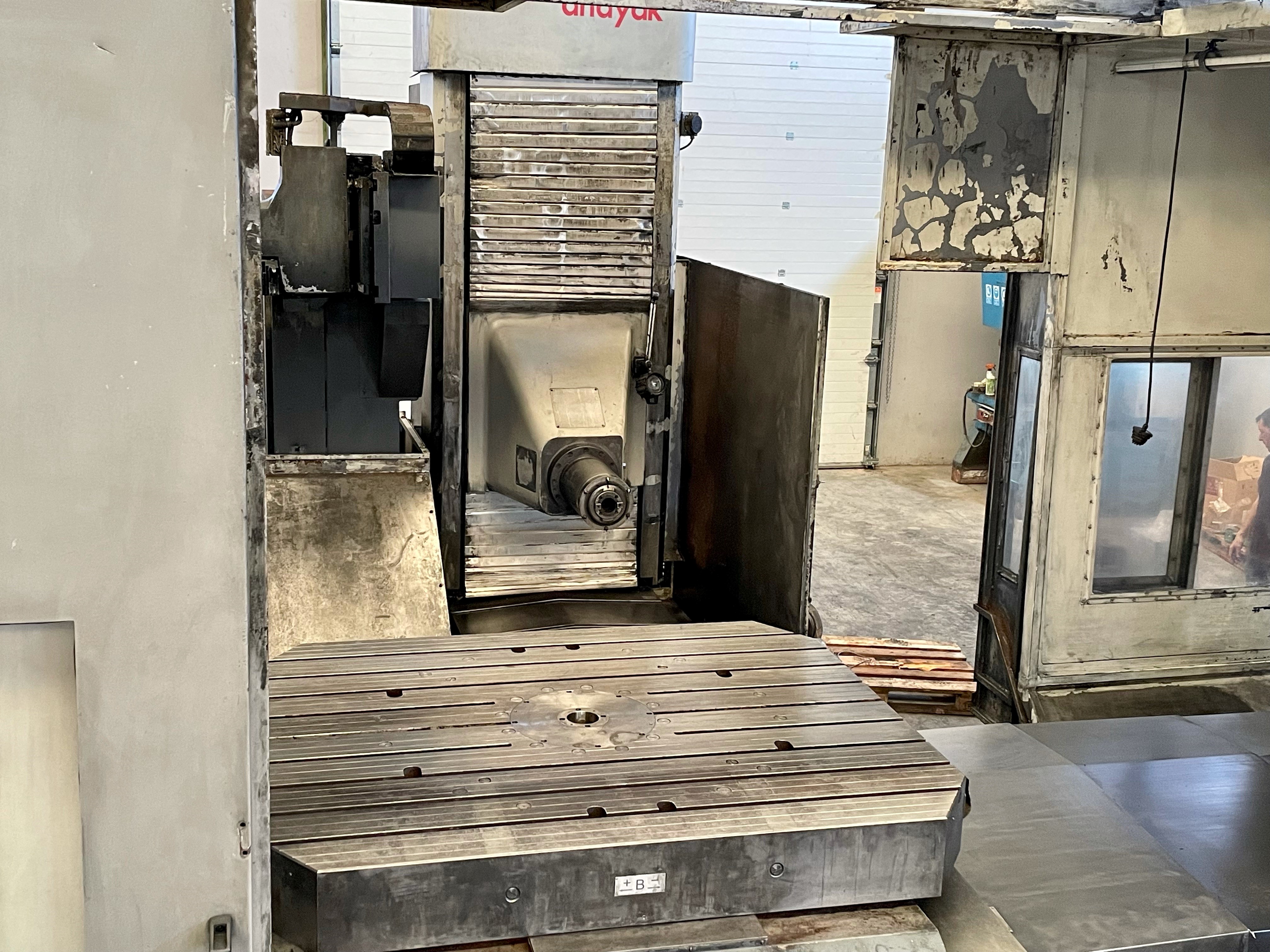

  • Rotary table: SI / YES / OUI / JA
  • B Axis: 360 º

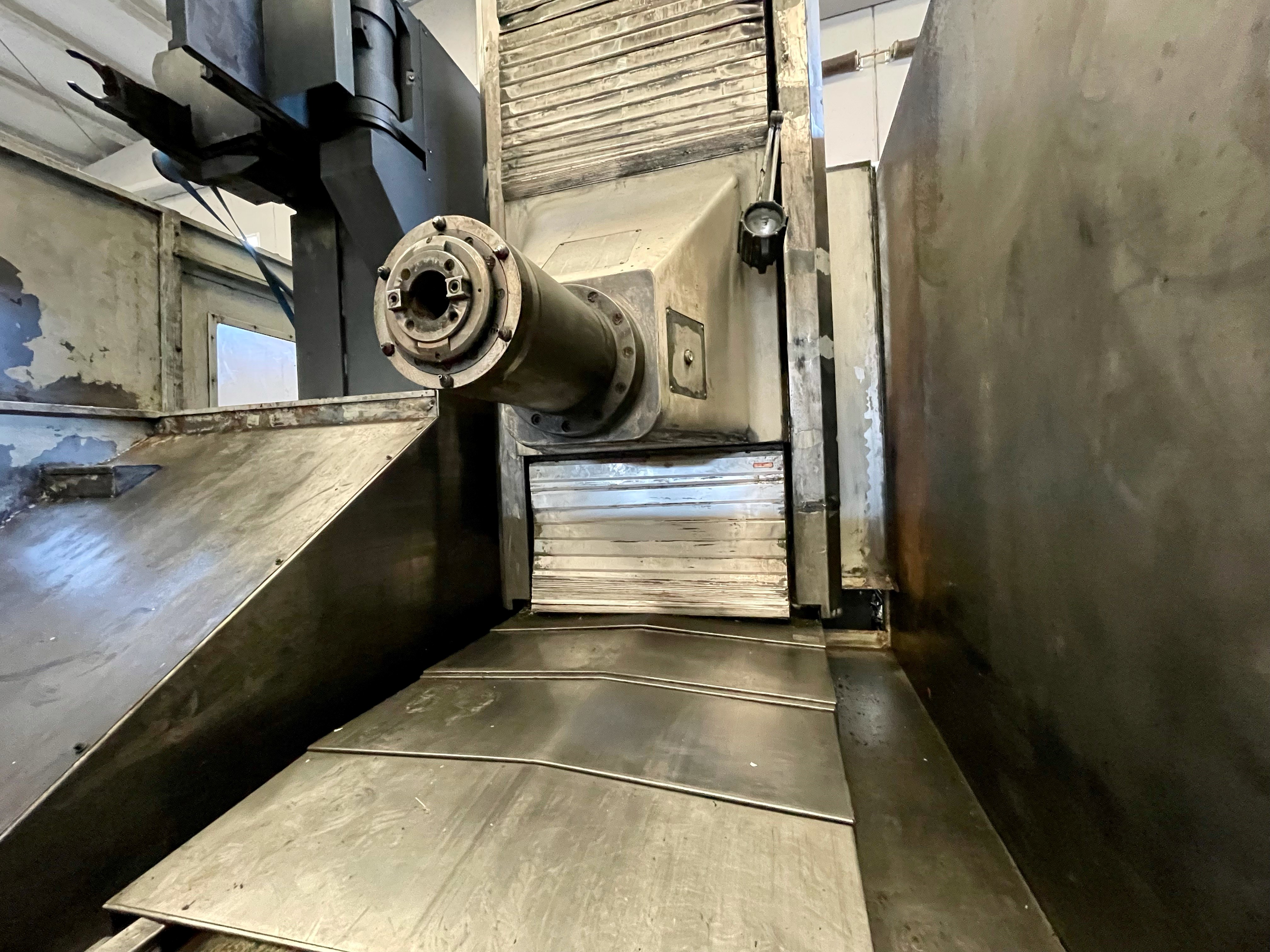

  • Tool Taper: ISO SK50
  • Through tool coolant: SI / YES / OUI / JA 22 bar y 26 l/min
  • Pull Stud: DIN 69872-A
  • Speeds: 60 - 5000 r.p.m.
  • Fast Traverse: 20000mm/min.
  • Electronic Handwheel: HR 410
  • Swarf conveyor: SI / YES / OUI / JA
  • Number of T slots: 9 x 22
  • Equipped with: Solo 20031 horas, Video disponible, Sistema de taladrina a 22 bares y 365 litros. Roscado rígido.
  • Equipment: Only 20031 hours, Video available, 22 bar coolant system and 365 litres capacity. Rigid Tapping.
  • Motor: 22KW/30HP
  • Length: 8990mm
  • Width: 7040mm
  • Height: 3500mm
  • Weight: 38650 kilos
