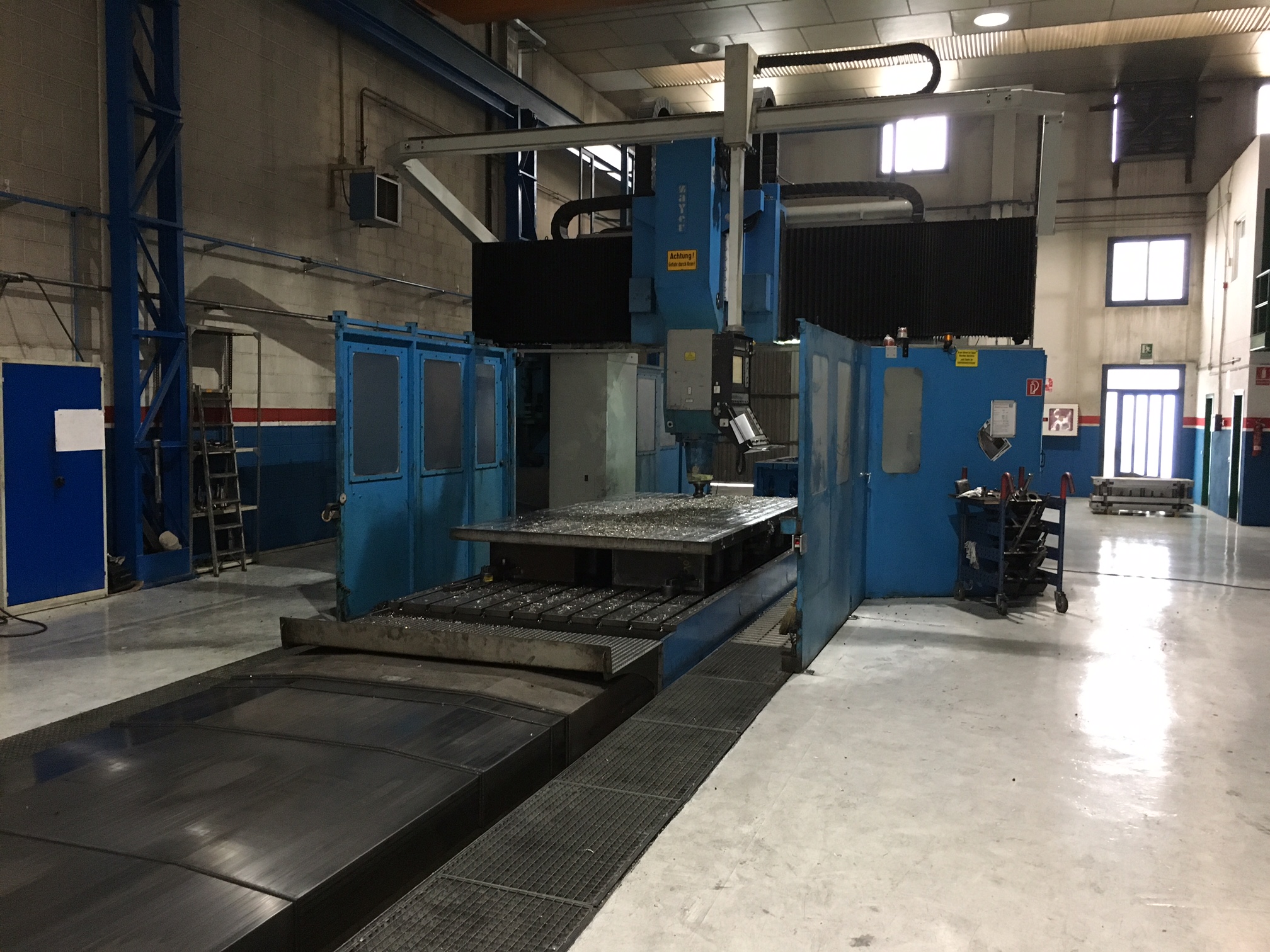

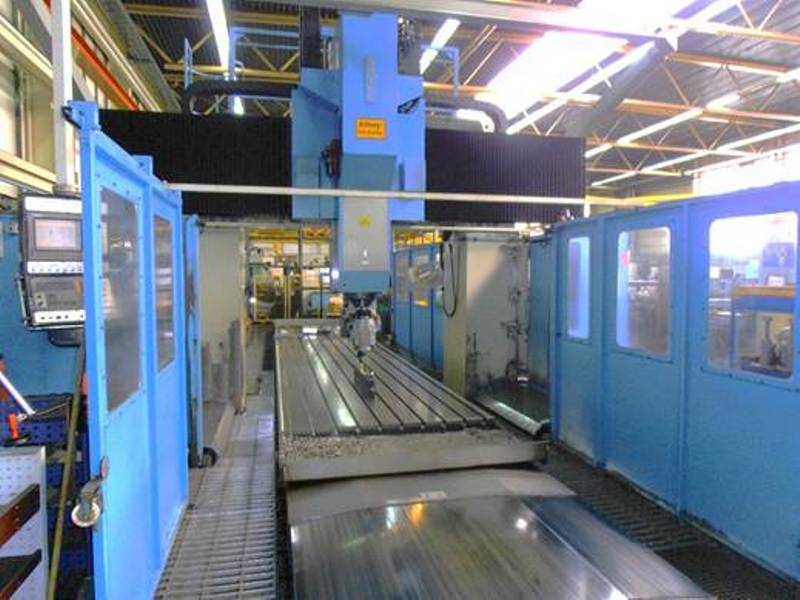

Milling machines - Bridge type/Gantry Milling machines

Ref 1000922

Year: 2005

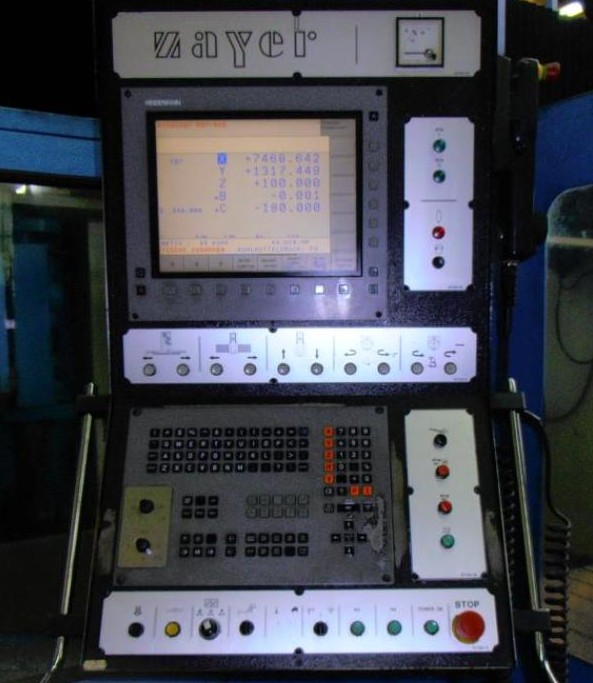

CNC: Heidenhain iTNC 530
Capacity: 3 + 2 axes/ejes

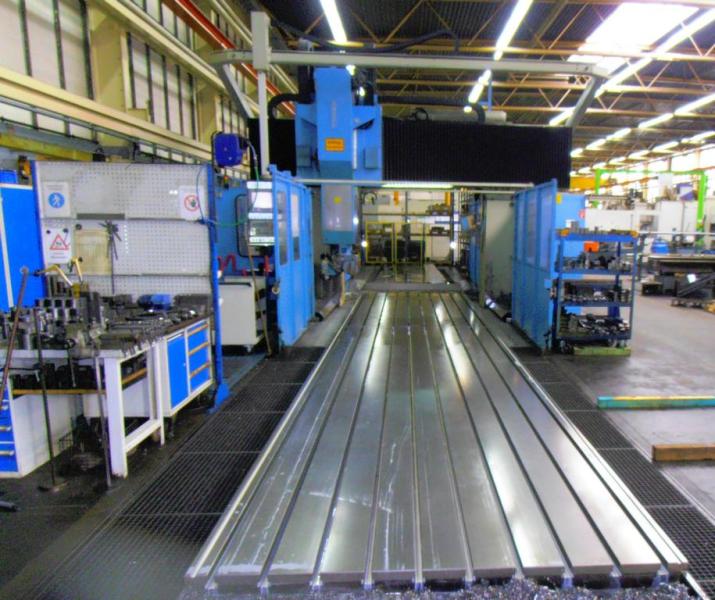

Table Size: Mesa/Table 1: 6000x2000 (X=5750mm) - Mesa/Table 2: 4000x2000 (X=3750mm) - Comb.: 10000mm x 2000mm
X axis travel: 10.000 mm
Y axis travel: 3.550 mm
Z axis travel: 1.250 mm
Between columns: 2.800 mm
Max weight on table: 25000 kilos
ATC: 60 x 5 kilos x 125mm dia x 300mm max.
Tool Taper: ISO 50 DIN 69871 AD50
Pull Stud: ISO 7388-2 B50
Speeds: 2 gamas: 35 – 6.000 r.p.m.
Hydraulic tool locking: SI / YES / OUI / JA
CNC Head : 360.000 x 0.001 x A/B
Through tool coolant: SI / YES / OUI / JA
Electronic Handwheel: Heidenhain HR 410
Swarf conveyor: SI / YES / OUI / JA x 5
Guarding: SI / YES / OUI / JA
Hours of use: 29503
Number of T slots: 10
T slot width: 28mm
Distance between T Slots: 200mm
Equipment: Auto head changer (pick up), vertical milling head, CE CERT, coolant filter tank 2000 litres, some tooling
Motor: 37KW/50HP
Length: 24520mm
Width: 6860mm
Height: 6250mm
Weight: 84000 kilos
