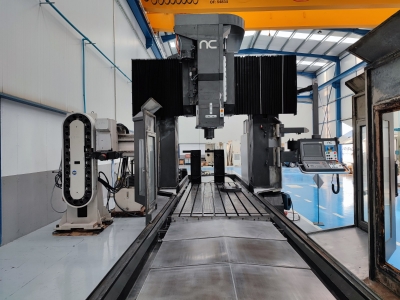

Milling machines - Bridge type/Gantry Milling machines

Ref 1000955

  • Year: 2005

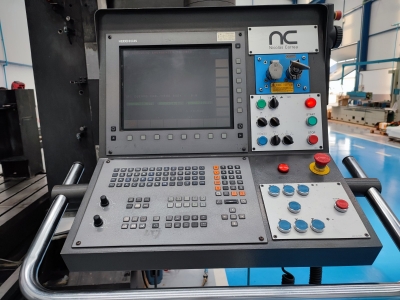

  • CNC: Heidenhain TNC i530
  • Table Size: 4000mm x 1250mm
  • X axis travel: 3500mm
  • Y axis travel: 2000mm
  • Z axis travel: 800mm
  • Between columns: 1740mm
  • Max weight on table: 10.000 Kg
  • ATC: 30 ATC
  • Tool Taper: ISO 50
  • Speeds: 5000 r.p.m.
  • Hydraulic tool locking: SI / YES / OUI / JA
  • Auto head orientation: SI / YES / OUI / JA
  • Number of heads: 1 x CH 40
  • Automatic head changer: SI / YES / OUI / JA
  • CNC Head : SI / YES / OUI / JA CH 40 (2.5º)
  • Through tool coolant: SI / YES / OUI / JA 20 bares
  • Electronic Handwheel: SI / YES / OUI / JA HR-410
  • Swarf conveyor: SI / YES / OUI / JA
  • Guarding: SI / YES / OUI / JA
  • Equipped with: Roscado Rigido / Rigid Tapping
  • Motor: 30KW
  • Length: 9500mm
  • Width: 5500mm
  • Height: 4100mm
  • Weight: 26000 Kg
